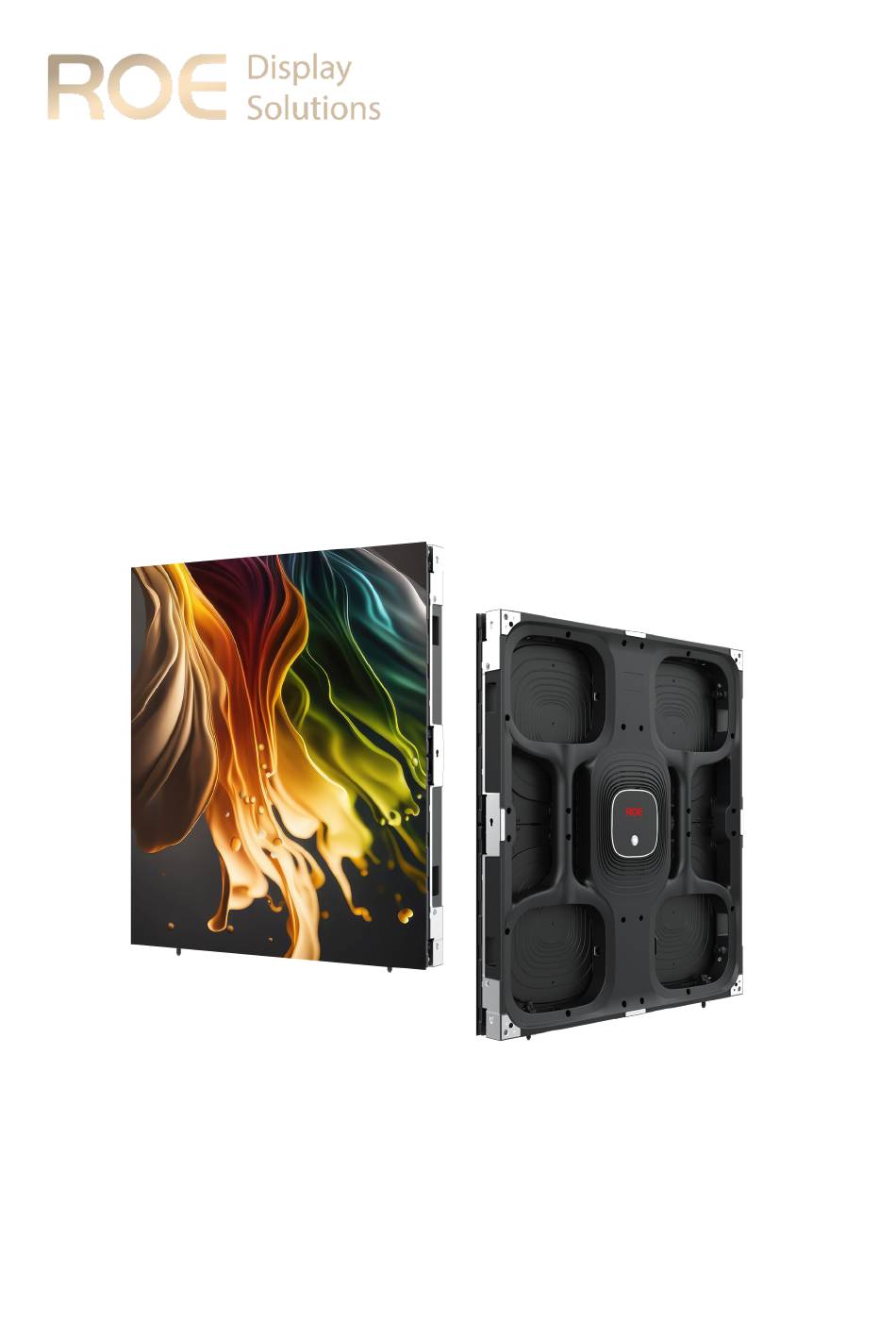

- Page 1 Coral Series User Manual Version: 1.0 Updated: 2024.1.4...
-
Page 2: Copyright
ROE. Warranty Policy The standard warranty period for the Products is 2 years after shipment from ROE Visual for rental applications and 3 years for fixed install applications. The contract will specify the application. This warranty includes all accessories, spare parts, and components shipped at the time of the original purchase. -
Page 3: Contact Information
Software or accessory malfunction. m. Any other cause not related to a defect in materials or workmanship. Contact Information If you have any questions about this document, please feel free to contact with ROE technical service team. ROE CHINA ROE EURCRE... -
Page 4: Table Of Contents
Cabinet Connection ............................19 4.3.2 Wall Mounting System ............................ 20 4.3.3 Hanging System..............................22 4.3.4 Stacking system ..............................24 4.3.5 Cables ..................................26 V1.0 | 2024-01-04 | Copyright © 2024 ROE Visual Co., Ltd. All Rights Reserved. 4 / 39... - Page 5 Control System ..............................37 Service Manual ..............................38 Cleaning Tiles ................................38 7.1.1 Needed Tools ..............................38 7.1.2 Steps ..................................38 Module Replacement ............................38 V1.0 | 2024-01-04 | Copyright © 2024 ROE Visual Co., Ltd. All Rights Reserved. 5 / 39...
-
Page 6: Safety
All components should be kept dry, clean, lubricated (only of recommended), coated properly, and otherwise maintained in a manner consistent with the part design. ROE products must be used in a manner consistent with their design and inspected on a routine basis for security, wear, deformation, corrosion and any other circumstances that may affect the loading capacity. - Page 7 LED when the LED heats up too aggressively. There fore，ROE recommends that if you have not used a screen for a prolonged time and/or the screen was stored in a very humid environment, you slowly heat up the screen.
-
Page 8: Safety Instructions
(9) Please do not use the product near the sea and / or other places with corrosive environment. (10) The installation must be performed by authorized and qualified technical personnel only. V1.0 | 2024-01-04 | Copyright © 2024 ROE Visual Co., Ltd. All Rights Reserved. 8 / 39... -
Page 9: Consignes De Sécurité
Les pièces endommagées doivent être réparées ou remplacées à temps. V1.0 | 2024-01-04 | Copyright © 2024 ROE Visual Co., Ltd. All Rights Reserved. 9 / 39... - Page 10 LED lorsque la LED chauffe de manière trop agressive. Par conséquent, ROE recommande que si vous n'avez pas utilisé un écran pendant une période prolongée et / ou que l'écran a été stocké dans un environnement très humide, vous chauffez lentement l'écran.
-
Page 11: Consignes De Sécurité
(9) Veuillez ne pas utiliser le produit près de la mer et / ou d’autres lieux exposés à un environnement corrosif. (10) L'installation doit être effectuée par du personnel technique autorisé et qualifié. V1.0 | 2024-01-04 | Copyright © 2024 ROE Visual Co., Ltd. All Rights Reserved. 11 / 39... -
Page 12: Precautions And Preparations
5) If the installation is on a construction site, make sure the construction is finished and the place is well cleaned before the installation starts. V1.0 | 2024-01-04 | Copyright © 2024 ROE Visual Co., Ltd. All Rights Reserved. 12 / 39... -
Page 13: Preparations
Preparations 2.4.1 Tools for Installation (-) (+) screw driver Electric Batch Tape Measure Hex Wrench: 3/4/5mm Level Anti-static Gloves Module Absorber Laser Level V1.0 | 2024-01-04 | Copyright © 2024 ROE Visual Co., Ltd. All Rights Reserved. 13 / 39... -
Page 14: Check Point
4) The measuring position for the ambient temperature Either right at the front of the center of the LED screen or the air inlet position. V1.0 | 2024-01-04 | Copyright © 2024 ROE Visual Co., Ltd. All Rights Reserved. 14 / 39... -
Page 15: General Introduction
General Introduction Features Introducing the Coral, With the innovative ROE CRB technology at its core, offers an unrivaled dark black anti-reflection surface that will generate captivating imagery. Showcasing an array of groundbreaking user benefits, Coral guarantees an unsurpassed visual experience. -
Page 16: Product Information
-40 °C to 60 °C / -40 °F to 140 °F Humidity 10% ~ 90% RH Certifications UL, CE, RoHS, FCC, PSE, ETL V1.0 | 2024-01-04 | Copyright © 2024 ROE Visual Co., Ltd. All Rights Reserved. 16 / 39... -
Page 17: Cabinet Information
The module allows for fast front maintenance. Module_300x337.5 mm Frame Coral_Overview Data Power In Power Box Data Power Out Cabinet connection screw Coral_Front View (Without modules) V1.0 | 2024-01-04 | Copyright © 2024 ROE Visual Co., Ltd. All Rights Reserved. 17 / 39... -
Page 18: Basic Dimensions
Coral Series User Manual www.roevisual.com 4.2.2 Basic Dimensions Basic dimensions of Coral tiles. 63 mm Coral (600 mm x 675 mm) V1.0 | 2024-01-04 | Copyright © 2024 ROE Visual Co., Ltd. All Rights Reserved. 18 / 39... -
Page 19: Accessory Information
Coral Series User Manual www.roevisual.com Accessory Information In order for the Coral series to be compatible with various situations, we have designed three kinds of installations: wall-mounting, hanging and stacking. 4.3.1 Cabinet Connection We have designed an easy-to-install and efficient cabinet connection method to bring you a pleasant installation experience and the ultimate cabinet flatness. -
Page 20: Wall Mounting System
Wall Mounting System General view of Coral wall mounting system. Hook Coral wall mounting system We now have 1200 mm and 600 mm length wall mounting frames for coral series. Straight line connector and grub screws Wall Mounting Frame_Dimension V1.0 | 2024-01-04 | Copyright © 2024 ROE Visual Co., Ltd. All Rights Reserved. - Page 21 Fix the wall mounting frames 307001-00813 Expansion screw, M10X120 SUS304 to concrete wall. Fix the wall mounting frames 307001-00598 Tapping Screw, ST6.3X25 SUS304 to wooden wall. V1.0 | 2024-01-04 | Copyright © 2024 ROE Visual Co., Ltd. All Rights Reserved. 21 / 39...
-
Page 22: Hanging System
65 mm 65 mm Coral Hanging Bar_1.2m Coral Hanging Bar_0.6m The Coral series is available in 2 lengths of hanging bars to meet your individual hanging needs. Connection Screws Come with hanging bar Coral Hanging System Overview Coral Hanging System Overview V1.0 | 2024-01-04 | Copyright ©... - Page 23 Weight: g Dimensions: 90 X 90 X 17 mm Cabinet connection plate_half SAP: 304007-00580 Weight: g Dimensions: 90 X 45 X 17 mm V1.0 | 2024-01-04 | Copyright © 2024 ROE Visual Co., Ltd. All Rights Reserved. 23 / 39...
-
Page 24: Stacking System
4.3.4 Stacking system Coral stacking system uses ROE standard stacking system accessories as much as possible, which allows the base truss, rear truss and rear bridge other than the base bar to be used with other ROE series. 90mm 190.5mm Max Height: 190.5mm... - Page 25 Weight: g Dimensions: 715.5 X 309 X 50 mm Rear bridge_RB SAP: 215002S0114 Weight: 247.6 g Dimensions: 342.94 X 109.72 X 135.85 mm V1.0 | 2024-01-04 | Copyright © 2024 ROE Visual Co., Ltd. All Rights Reserved. 25 / 39...
-
Page 26: Cables
RJ45 connector to RJ45 Connector Connect two panels horizontally. Data Cable, 0.45 m SAP: 208004S1208 Weight: kg RJ45 connector to RJ45 Connector Connect two panels vertically. V1.0 | 2024-01-04 | Copyright © 2024 ROE Visual Co., Ltd. All Rights Reserved. 26 / 39... -
Page 27: Service Tools
Note: The module absorber has a Li-ion rechargeable battery pack inside, so it may not support air transport. The battery pack can be purchased by local web store, please inquire for the compatible battery pack model. V1.0 | 2024-01-04 | Copyright © 2024 ROE Visual Co., Ltd. All Rights Reserved. 27 / 39... -
Page 28: Installation
1) Mechanical Requirements a. Weight Do not underestimate the weight of tiles and frames. Please make sure the floor or truss on which ROE tiles and frames will be installed is capable of handling five times the complete weight of tiles and frames. -
Page 29: Wall Mount Installation
Wall Mount Installation CR tiles must be mounted on a flat wall that could hold the total weight. Please reach out to the ROE technician for the professional advice on the on-site structure. Check the flatness of the wall and the type of wall before installation. It is recommended to use a laser level to check the level difference between the each corner of the wall and the center point. -
Page 30: Wall Mounting Frame Installation
Wall mounting frames horizontal connection Z-axis adjustment Straight line connector and grub screw M8 x 6 Rotate this screw to achieve z-axis adjustment V1.0 | 2024-01-04 | Copyright © 2024 ROE Visual Co., Ltd. All Rights Reserved. 30 / 39... - Page 31 It is for this reason that when using the auxiliary mounting plate, you should also pay attention to the different latches. The latch used on the bottom row The latch used on the middle rows V1.0 | 2024-01-04 | Copyright © 2024 ROE Visual Co., Ltd. All Rights Reserved. 31 / 39...
- Page 32 By rotating the thumb nut under the wall mount, we can adjust the position of the frame on the wall mount in a small range, using the level principle. V1.0 | 2024-01-04 | Copyright © 2024 ROE Visual Co., Ltd. All Rights Reserved. 32 / 39...
-
Page 33: Cabling Instruction
Coral Series User Manual www.roevisual.com Cabling Instruction General view of LED cabling schematic. V1.0 | 2024-01-04 | Copyright © 2024 ROE Visual Co., Ltd. All Rights Reserved. 33 / 39... -
Page 34: Power Cabling
If the voltage is 220V, one power cable can load 13 pcs Coral 600x675 tiles. If the voltage is 110V, one power cable can load 6 pcs Coral 600x675 tiles. V1.0 | 2024-01-04 | Copyright © 2024 ROE Visual Co., Ltd. All Rights Reserved. 34 / 39... -
Page 35: Data Cabling
2.5G network port) The data cabling diagram below is based on Coral 1.25 at 60hz, 12bit, 2.5G port on Megapixel Control System. Data Cabling_Coral 1.25 V1.0 | 2024-01-04 | Copyright © 2024 ROE Visual Co., Ltd. All Rights Reserved. 35 / 39... - Page 36 2.The data cable is limited below 100 m. If the project needs longer control distance, please switch to fiber cables with the fiber adaptor. V1.0 | 2024-01-04 | Copyright © 2024 ROE Visual Co., Ltd. All Rights Reserved. 36 / 39...
-
Page 37: Control System
Coral Series User Manual www.roevisual.com Control System ROE provides three different control systems: Megapixel VR Helios, Brompton Tessera and ROE Evision. For more information about system Operation, please check the corresponding control system user manual. 1. ROE Evision Control System User Manual 2. -
Page 38: Service Manual
After the module is firmly absorbed by the suction pad, pull out the module. Disconnect the safety wire and swap the module. V1.0 | 2024-01-04 | Copyright © 2024 ROE Visual Co., Ltd. All Rights Reserved. 38 / 39... - Page 39 Coral Series User Manual www.roevisual.com Revision Update date Description Editor V1.0 2024-01-04 Original Version Loki V1.0 | 2024-01-04 | Copyright © 2024 ROE Visual Co., Ltd. All Rights Reserved. 39 / 39...
