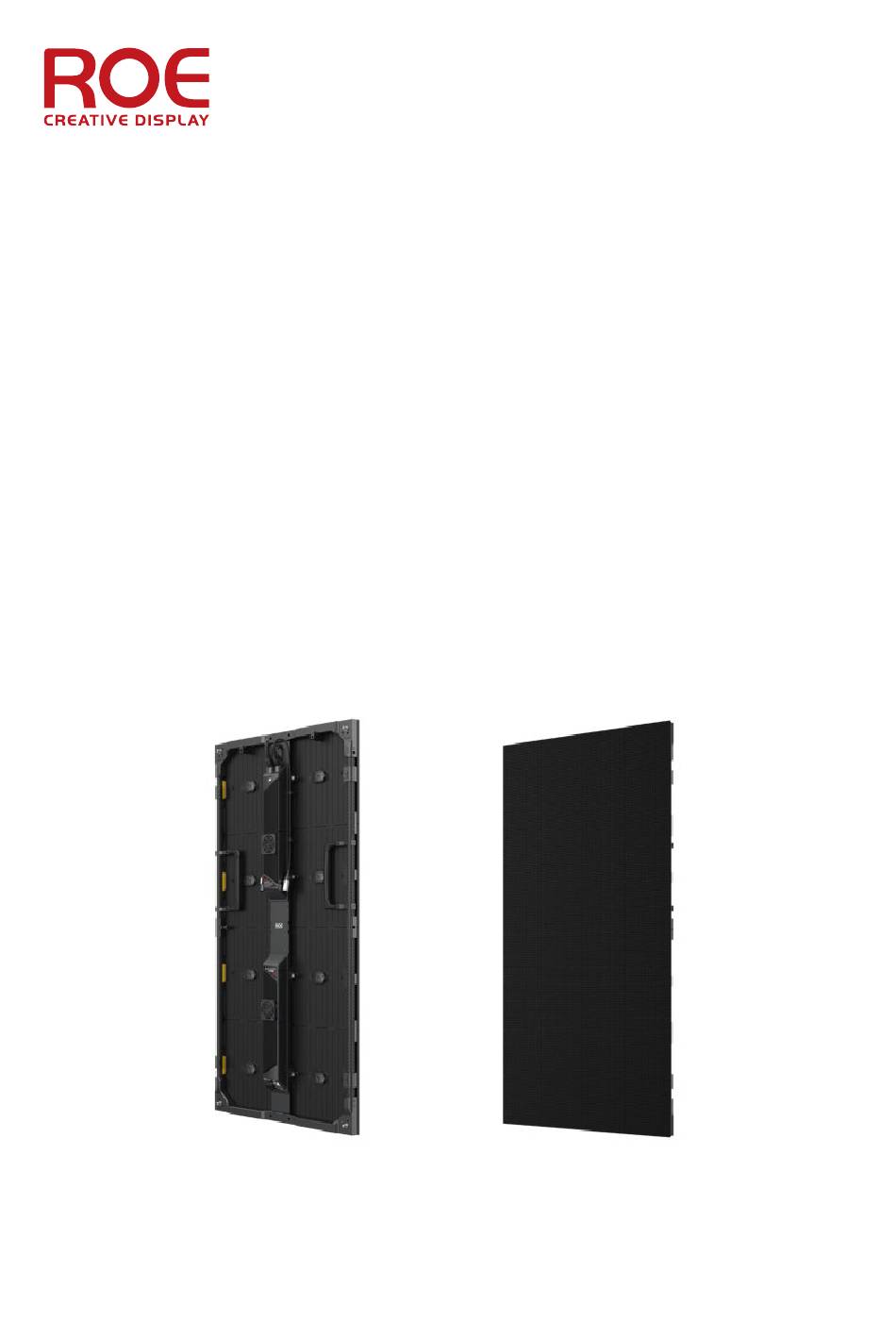

Carbon Mark II Series
User Manual
Version: 1.8
Updated: 2023-12-08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Carbon Mark II Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ROE Carbon Mark II Series

  • Page 1 Carbon Mark II Series User Manual Version: 1.8 Updated: 2023-12-08...
  • Page 2: Copyright

    ROE. Warranty Policy The standard warranty period for the Products is 2 years after shipment from ROE Visual for rental applications and 3 years for fixed install applications. The contract will specify the application. This warranty includes all accessories, spare parts, and components shipped at the time of the original purchase.
  • Page 3: Contact Information

    Software or accessory malfunction. m. Any other cause not related to a defect in materials or workmanship. Contact Information If you have any questions about this document, please feel free to contact with ROE technical service team. ROE CHINA ROE EUROPE...
  • Page 4: Table Of Contents

    Stacking System ......................31 Ballast Calculation ......................35 Cabling Instruction ......................37 Control System ........................40 CB5 MKⅡ Corner tile ......................41 Accessories ........................41 V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 4 / 50...
  • Page 5 Carbon Mark II Series User Manual www.roevisual.com Instruction ........................42 Service Manual ........................49 Cleaning Tiles ........................49 V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 5 / 50...
  • Page 6: Safety

    All components should be kept dry, clean, lubricated (only of recommended), coated properly, and otherwise maintained in a manner consistent with the part design. ROE products must be used in a manner consistent with their design and inspected on a routine basis for security, wear, deformation, corrosion and any other circumstances that may affect the loading capacity.
  • Page 7 LED when the LED heats up too aggressively. There fore,ROE recommends that if you have not used a screen for a prolonged time and/or the screen was stored in a very humid environment, you slowly heat up the screen.
  • Page 8: Safety Instructions

    (9) Please do not use the product near the sea and / or other places with corrosive environment. (10) The installation must be performed by authorized and qualified technical personnel only. V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 8 / 50...
  • Page 9: Consignes De Sécurité

    Les produits ROE doivent être utilisés conformément à leur conception et inspectés régulièrement pour vérifier leur sécurité, leur usure, leur déformation, leur corrosion et toute autre circonstance pouvant affecter leur capacité...
  • Page 10 LED contient de l'humidité, il y a un risque d'endommager la LED lorsque la LED chauffe de mani ère trop agressive. Par conséquent, ROE recommande que si vous n'avez pas utilisé un écran pendant une période prolongée et / ou que l'écran a été stocké dans un environnement très humide, vous chauffez lentement l'écran.
  • Page 11: Consignes De Sécurité

    (9) Veuillez ne pas utiliser le produit près de la mer et / ou d’autres lieux exposés à un environnement corrosif. (10) L'installation doit être effectuée par du personnel technique autorisé et qualifié. V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 11 / 50...
  • Page 12: General Introduction

    Concave and convex curving options enable you to realize the unique and creative stage design. 2.1.4 Magnet-assisted Assembly Magnets are integrated into the tile frame, enabling the easy setup in both hanging and stacking systems. V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 12 / 50...
  • Page 13: Specifications

    Storage Temp / Humidity -40°~ 60°C, 10~90%RH / -40°~140°F, 10~90%RH Cooling IP Rating(Front/Rear) IP 65 Certifications CE, ETL, FCC, UKCA Lifetime ≥50,000 hrs V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 13 / 50...
  • Page 14 -40°~ 60°C, 10~90%RH / -40°~140°F, 10~90%RH Temp/Humidity Cooling IP Rating IP 65 (Front/Rear) Certifications CE, ETL, FCC, UKCA CE, ETL, FCC Lifetime ≥50,000 hrs V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 14 / 50...
  • Page 15 Storage Temp / Humidity -40°~ 60°C, 10~90%RH / -40°~140°F, 10~90%RH Cooling IP Rating(Front/Rear) IP 65 Certifications CE, ETL, FCC, UKCA Lifetime ≥50,000 hrs V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 15 / 50...
  • Page 16: Installation Requirements

    Weight Do not underestimate the weight of tiles and frames. Please make sure the floor or truss on which ROE tiles and frames will be installed is capable of handling five times the complete weight of tiles and frames. Do not forget to take into consideration the ballast weight required by the stacking system.
  • Page 17: Components

    Figure 3-1. CB MK II Series Components Power-In Data Power Box Tile Handle Side Lock Power Box Locating Pin Data Power-Out Figure 3-2. CB MK II Series Parts Information V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 17 / 50...
  • Page 18 Module Dimension: 300 x 300 mm CB MK II: Figure 3-3. CB MK II Dimensions CB MK II Half: Figure 3-4. CB MK II Half Dimensions V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 18 / 50...
  • Page 19: Accessories

    Dimensions: 590 x 157 x 202 mm CB MK II hanging bar, 2W, clamp & shackle SAP: 207002S0516 Weight: 10.72 kg Dimensions: 1190 x 158 x 202 mm V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 19 / 50...
  • Page 20: For Stacking

    Dimensions: 232 x 106.5 x 50 mm CB MK II stacking rear adaptor SAP: 315002-00174 Weight: 0.45 kg Dimensions: 112 x 81 x 92 mm V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 20 / 50...
  • Page 21: A Complete Stacking System

    Note: The stacking system should be used every two-tile wide at least and it’s will be better to be used every one-tile wide when necessary. V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 21 / 50...
  • Page 22: Locking Plate & Curving Plate

    Weight: 232g CB lock plate, eyebolt, 1 handle, V1.2 SAP: 206002S0638 Weight: 156g Note: The curving plate can achieve concave 15° and convex 10°. V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 22 / 50...
  • Page 23 Stacking Project: m (W) x n (H) 4-way Locking Plate: (m-1) x n 2-way Locking Plate: 2 x n + m - 1 V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 23 / 50...
  • Page 24: Side Lock

    The number of side locks is configured according to the resolution of the product. 3.5.1 How to Use the Side Lock Unlock Statue Locking Statue V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 24 / 50...
  • Page 25: Cables

    Connect tiles in neighboring columns. Data adapter, RJ45-RJ45, V2.0 SAP: 203000S0139 Weight: 0.09 kg Neutrik _ Neutrik Connectors Connect tiles in neighboring columns. V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 25 / 50...
  • Page 26 Data Cable Plug in the data cable and you feel a “click”. Press the button on the socket and plug the data cable out. V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 26 / 50...
  • Page 27: Package

    4.1.2 Labels on the Flight Case Warning: Indoor use. Warning: Keep the flight case upwards. Warning: Maximum stack 3 flight cases. Warning: Fragile V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 27 / 50...
  • Page 28: Quick-Start Guide

    (1) The adjusting range of the adjustment wheel is 18.9mm (vertical) and 168mm (horizontal) respectively. (2) Please note that there is a 10 mm gap between neighboring hanging bars. V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 28 / 50...
  • Page 29 (3) Install tiles on hanging bars. Keep panels at an angle to avoid damage to LEDs when magnets attract panels. (4) Before installing more panels, fix hanging bars and tiles with locking plates. V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 29 / 50...
  • Page 30 (5) Before installing more tiles, fix neighboring tiles with locking plates. (6) It is recommended to uninstall from right to left when uninstall tiles. V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 30 / 50...
  • Page 31: Stacking System

    If it’s even rows, there should be used at both ends. (2) Assemble stacking bars with base trusses. V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 31 / 50...
  • Page 32 (see step5) (4) Keep panels at an angle to avoid damage to LEDs when magnets attract panels. V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 32 / 50...
  • Page 33 (7) Repeat Step 2 to 5 until installing all stacking systems and keep them at the same horizontal level through the adjustment wheel. V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 33 / 50...
  • Page 34 Notes: (1) The adjusting range of the feet (stacking bar) is 48mm. (2) The rear bridge should be used in even rows. V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 34 / 50...
  • Page 35: Ballast Calculation

    Please download the ballast calculator at https://www.roevisual.com/news/news-blog/build-your- led-screen-safe-using-the-roe-visual-ballast-calculator.html or contact the customer service. V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 35 / 50...
  • Page 36 Carbon Mark II Series User Manual www.roevisual.com V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 36 / 50...
  • Page 37: Cabling Instruction

    Carbon Mark II Series User Manual www.roevisual.com Cabling Instruction General view of LED tiles cabling schematic. V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 37 / 50...
  • Page 38 CB5 MK II CB5L MK II 110V 220V 240V Note: The number in cabling is in line with that of in cables. (See 5.7 Cables.) V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 38 / 50...
  • Page 39 (2) The cascade control data cables should not be more than 100 meters. When it's over 100 meters, please switch to fiber cables. V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 39 / 50...
  • Page 40: Control System

    2. Brompton Tessera Control System User Manual 3. Megapixel VR Helios Control System User Manual 8X10GB Fiber (Up to 10km) 1G or 2.5G Copper (Up to 100m) V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 40 / 50...
  • Page 41: Cb5 Mkⅱ Corner Tile

    L-type connector, Right SAP: 304010-00583 Weight: 0.475 kg Usage: Connect AF hanging bar and corner hanging bar V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 41 / 50...
  • Page 42 Exploded View Note: The CB5 MK II 90° Corner tile is redesigned, which is different from that of standard CB MK II series tile. V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 42 / 50...
  • Page 43 Connection Block C Note: The installation location of the screws is shown in the following picture. Connection Block A Connection Block B Connection Block C V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 43 / 50...
  • Page 44 Connect black-out plate (SAP: 315003-00129) to prevent the light from rear of the panel to enhance the display effect. Detail Drawing Detail Drawing Detail Drawing V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 44 / 50...
  • Page 45 CB MK II Hanging Locking Plate Side Component CB MK II Corner Hanging Bar Standard CB MK II Tile CB5 MK II Corner Tile V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 45 / 50...
  • Page 46 CB MK II corner hanging bar and the side component of the corner tile should be removed. Location Pin Component For CB MK II Corner Hanging Bar Side Component For CB5 MK II Corner Tile V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 46 / 50...
  • Page 47 AF hanging bar. Corner Hanging Bar AF Hanging Bar L-Type Connector_Left Note: The installation location of the screws is shown in the following picture. V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 47 / 50...
  • Page 48 Step 3: Assemble the vertical connector to the main corner hanging bar parts with screw. Scre Vertical Connector Step 4: Install the adjustment footpad component. Adjustment Footpad Component V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 48 / 50...
  • Page 49 It should never be dripping-wet. Use gentle pressure to wipe only the smudged areas. Immediately use a clean, dry microfiber cloth to dry the screen. V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 49 / 50...
  • Page 50 Update Hanging Accessories, Specification and Cleaning 2023.03.24 Felix method Update the dimensions in Chapter 2.6.2 and add thread 2023.10.30 Felix dimensions 2023.12.08 Update the dimension of thread Felix V1.8 | 2023-12-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 50 / 50...
