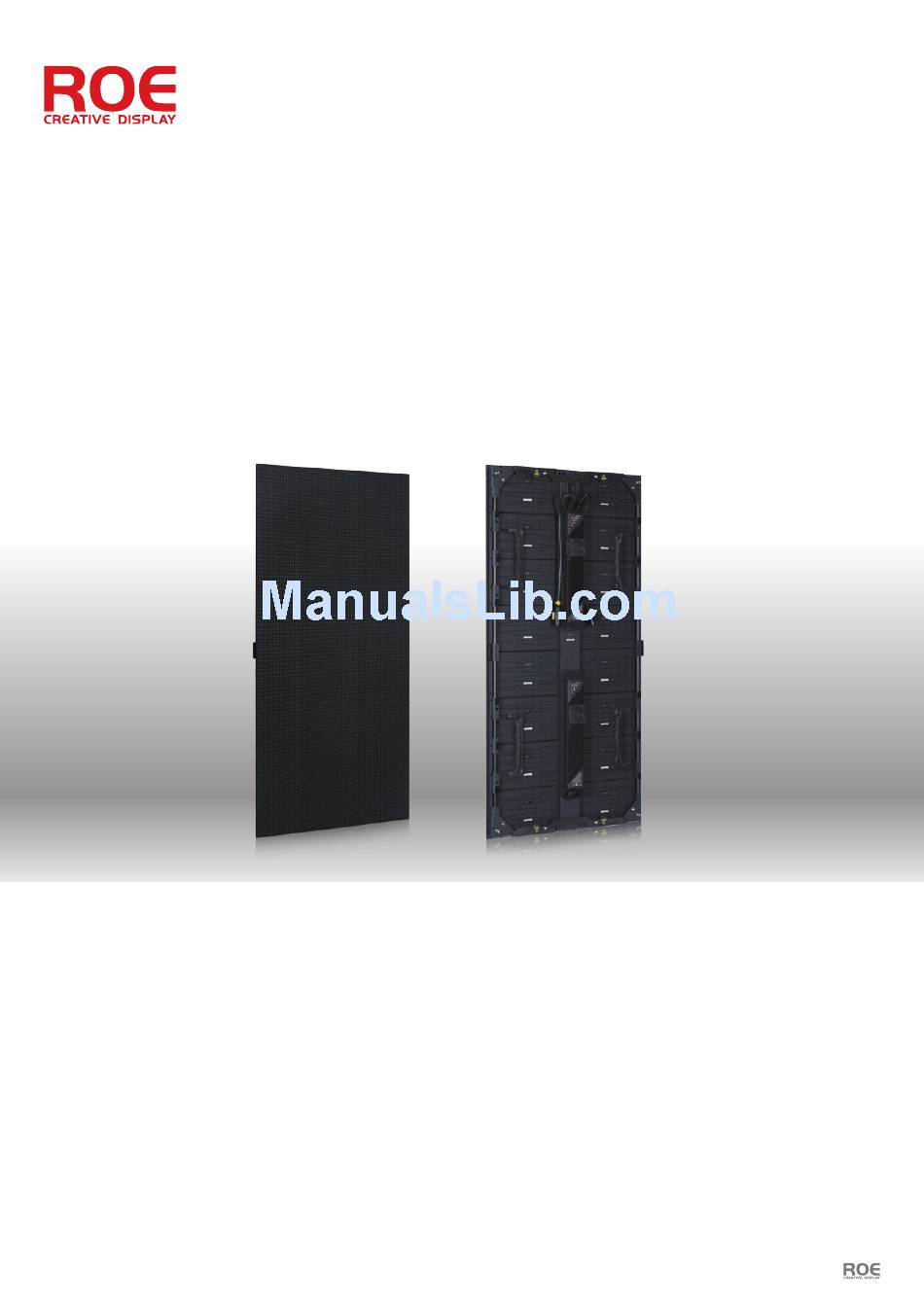

- Page 1 Carbon User Manual User Manual...
-
Page 2: Table Of Contents
Table of Contents Safety Information Speci cation Connection Accessories Installation Control System Service and Maintenance Package User Manual... -
Page 3: Safety Information
Read this manual before installing, powering or servicing this product, follow the safety precautions listed below and observe all warnings in this manual and printed on the product. If you have questions about how to operate the tile safely, please contact your ROE supplier. PROTECTION FROM ELECTRIC SHOCK Connect the product to AC mains power within the range 100-240V nominal at 50 or 60 Hz only. - Page 4 Do not modify the product in any way not described in this manual. Install only genuine ROE parts in or on the product unless an alternative is described in this manual. Do not operate the product full load if the ambient temperature of power units (Ta) exceeds 45°C (113°...
- Page 5 This equipment MUST be earthed: In order to protect against risk of electric shock, the installation should be properly grounded. Defeating the purpose of the grounding type plug will expose you to the risk of electric shock. Power system Mains cords: The power cords delivered with this system have special properties for safety.
-
Page 6: Speci Cation
Carbon panels strike the perfect balance of stability and weight. All this whilst preserving the easy setup and maintenance of all ROE product to save on time and labor costs. -
Page 7: 03 Connection
03 Connection Hanging System AC 220V AC 220V AC 220V AC 220V AC 220V AC 220V ③ ⑤ ⑤ ⑤ ② ⑥ CAT-5 Processor ① AC 220V Carbon 5 Built in Power Supply Input Voltage AC 220V ④ 1. Neither Hanging Bar nor Vertical Connector can load more than 20 tiles of Carbon 5. Notes: 2. - Page 8 Hanging System AC 220V AC 220V AC 220V AC 220V AC 220V AC 220V ③ ⑤ ⑤ ⑤ ② ⑥ CAT-5 Processor ① AC 220V Carbon 8 Built in Power Supply Input Voltage AC 220V ④ 1. Neither Hanging Bar nor Vertical Connector can load more than 20 tiles of Carbon 8. Notes: 2.
-
Page 9: Accessories
Accessories ① ② ③ ④ Name Name Name Name Brompton Data Cable Power Cable Data Cable SAP No. SAP No. SAP No. SAP No. 311003-00010 208004S0242 208001S0754/0611 208002S0262 Dimension Dimension Dimension Dimension W508×H432×D89mm 10/30m 0.93m Weight Weight Weight Weight 12.0kg 1.4kg 1.8kg/4.6kg 0.2kg... -
Page 10: Installation
Installation: Hanging System Hanging Bar Diagram: Hanging Clamps Adjusting Screw Eyebolt Adjusting Knob Fixed Seat Dowel Pin Optional Magnet Component 0.6m Hanging Bar Dimensions: 5 8 9 m 1.2m Hanging Bar 1 1 8 9 User Manual... - Page 11 Flat Installation 1. Fix the Hanging Bar on the Truss Just turn the Adjusting Screw, to make the Clamps close, the Hanging Bar will be xed on the Truss safely. 2. Connect Carbon tiles with the Hanging Bar Tiles will be attached to the Hanging Bar by Magnets automatically. Notes: (For Safety) Please do this by two persons.
- Page 12 Two kinds of Connection plate. two handles: four handles: Press the red button to loosen the handle, align the locating hole and dowel pin, push handle back for locking. Locating Hole 3. Use Connection Plate with eyebolt for hanging also. Case 1 Case 2 User Manual...
- Page 13 4. Interconnect Side Lock 5. Flat Installation Components Major components of at installation assembly are: 0.6m Hanging Bar × 2 1.2m Hanging Bar × 2 Connection Plate × 19 CB tiles × 12 User Manual...
- Page 14 Curve Installation The connecting angle of curve connection plates can be adjustable with any size (Max.concave 15°, Max.convex 10°). ° ° concave 15 concave 15 (four handles) (two handles) (two handles) ° ° convex 10 convex 10 (four handles) (two handles) (two handles) Hanging bar and Connection Plate indicate For the Magnet components,...
- Page 15 Hanging Connection Plate ° concave 15 Eyebolt Sliding Plate Connection Plate Degree Handle ° Control convex 10 Button Handle Nothing User Manual...
- Page 16 Stacking System Stacking System Support Components Major components of the Stacking System support assembly are: 1. Base Bar 2. Base Truss 3. Rear Support Truss 4. Rear Bridge(Half Coupler, Brace Arm, Stacking Connector, Clamp Adaptor) Stacking Connector Half Coupler Brace Arm Clamp Adaptor Rear Support Truss Base Bar...
- Page 17 Stacking Installation 1. Base Bar connection with Base Truss Connect the Base Bar and Base Truss by Pin and Safely Clip. Adjust the Knob and make sure the Base Truss and Base Bar in same horizontal Lock of Base Truss 2.
- Page 18 3. Tiles Installation Connect the tiles and Base Bar by Vertical Connector, and Rear Support Truss by Rear bridge. Rear Bridge Vertical Connector 4. Stacking Installation Tile(2×6)Accessories Count: Base Bar: 2×0.6m, 1×1.2m Base Truss: 4 Rear Support Truss: 8 Rear Bridge: 8 Connection Plate: 19 User Manual...
- Page 19 Mounting System Diagram: Touring Frame - T4 Vertical King Pin Lock Pin Horizontal Interconnect Lock Magnet Vertical Interconnect Latch Lever Position Pin Diagram: CB tiles Connect CB tiles with T4 Touring Frame Keep the lock pin of T4 Open. ① Alignment the position pin of T4 and locating hole of ②...
- Page 20 Diagram: Touring Frame - T2 Lock Pin Magnet Position Pin Connect CB tiles with T2 Touring Frame Keep the lock pin of T2 Open. ① Alignment the position pin of T2 and locating hole of CB, it will be attached to T2 by Magnets automatically. ②...
-
Page 21: Control System
Control System: SMART / REALTIME / SOPHISTICATED COLOUR MANAGEMENT / REMOTE Speci cations 100 - 240V AC, 47Hz - 60Hz, 1- 0.5A Electrical Autoranging power supply. Input ports 2 × SD/HD/3G-SDI, DVI-I, Bi-/Tri-level Reference Sync Output ports 4 × Tessera Protocol (Neutrik Ethercon) Max. -
Page 22: Service And Maintenance
Service and Maintenance: Maintenance: 1. Maintenance on overall installation, just replace the bad module. Picture 1 Picture 2 Picture 3 Picture 4 Picture 5 Picture 6 Picture 7 Picture 8 1. Loosen the screw(a total of six screws) on the front of the module. (twist force: 1.8kg f-cm) 2. -
Page 23: Package
Package 7 pcs LED tiles per Flightcase 1300mm 800mm 1210mm 12 pcs LED tiles per Dolly 790mm 1310mm User Manual... - Page 24 ROE Visual Europe B.V ROE Visual Co., Ltd ROE Visual US, Inc www.roevisual.com www.roevisual.com www.roevisual.com Zernikelaan 2a, Bldg 7, Zhong Yuntai Industrial Park, 2514 N Naomi Street, 9351VA Leek, The Netherlands. Shiyan Town, Shenzhen, China. Burbank, CA, 91504. E: europe@roevisual.com E: roe@roevisual.com...
