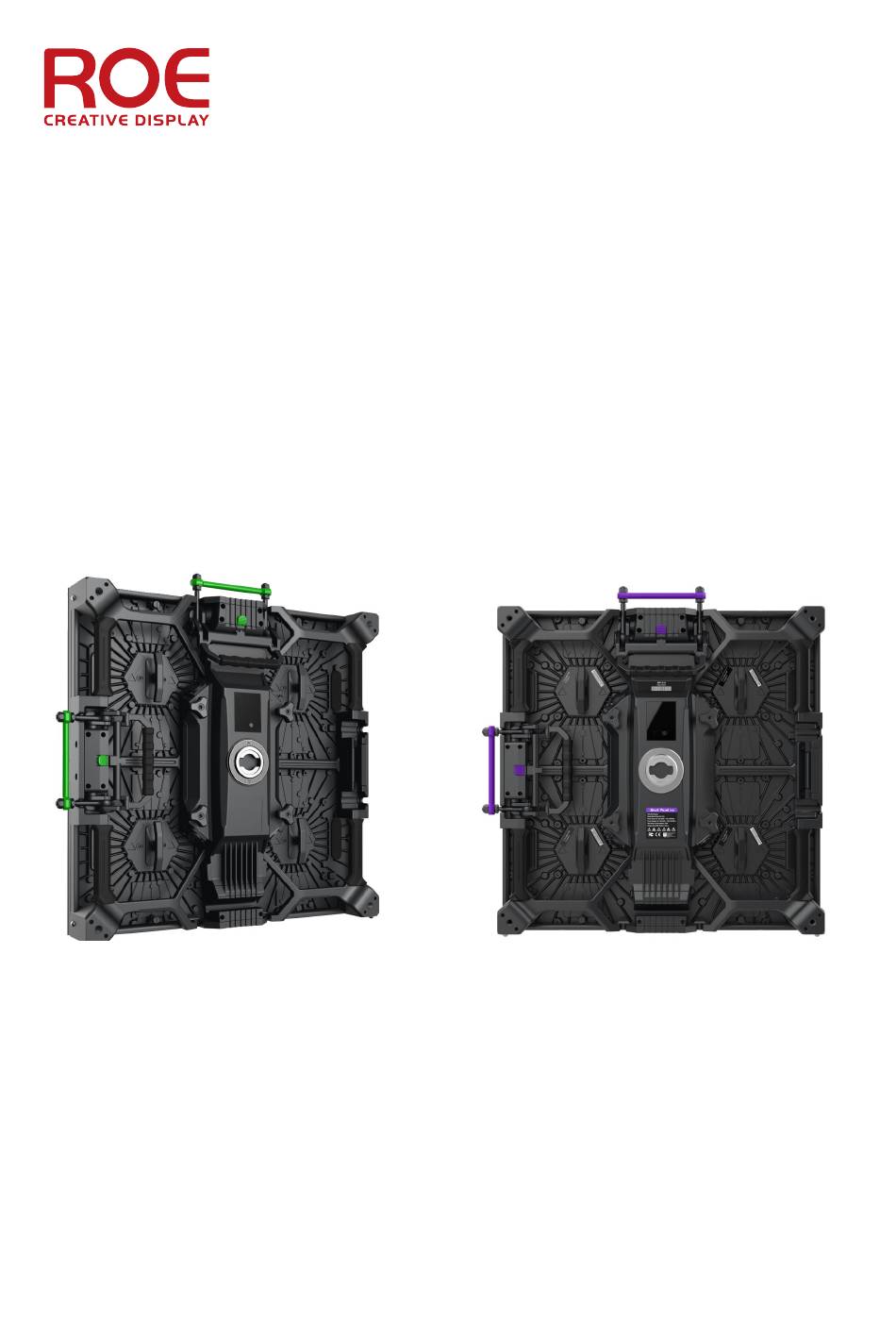

- Page 1 Black Onyx & Pearl User Manual Version: 1.8 Updated: 2023-10-08...
-
Page 2: Copyright
ROE. Warranty Policy The standard warranty period for the Products is 2 years after shipment from ROE Visual for rental applications and 3 years for fixed install applications. The contract will specify the application. This warranty includes all accessories, spare parts, and components shipped at the time of the original purchase. -
Page 3: Contact Information
Software or accessory malfunction. m. Any other cause not related to a defect in materials or workmanship. Contact Information If you have any questions about this document, please feel free to contact with ROE technical service team. ROE CHINA ROE EUROPE... -
Page 4: Table Of Contents
Specifications ......................37 Overview ........................38 There are laser marks to distinguish triangle modules..........38 Accessories ......................... 39 Round Corner Panels ....................... 41 V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 4 / 48... - Page 5 90°Corner Panels ......................44 Specifications ......................44 Overview ........................45 Accessories ......................... 46 Service Instruction ....................... 47 10.1 Cleaning Panels ......................47 Revision History ......................48 V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 5 / 48...
-
Page 6: Safety
All components should be kept dry, clean, lubricated (only of recommended), coated properly, and otherwise maintained in a manner consistent with the part design. ROE products must be used in a manner consistent with their design and inspected on a routine basis for security, wear, deformation, corrosion and any other circumstances that may affect the loading capacity. -
Page 7: Safety Instructions
(9) Please do not use the product near the sea and / or other places with corrosive environment. (10) The installation must be performed by authorized and qualified technical personnel only. V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 7 / 48... - Page 8 LED when the LED heats up too aggressively. Therefore，ROE recommends that if you have not used a screen for a prolonged time and/or the screen was stored in a very humid environment,you slowly heat up the screen.
-
Page 9: Consignes De Sécurité
Tous les composants doivent être maintenus au sec, propres, lubrifiés (uniquement de ceux recommandés), revêtus correctement et entretenus d'une manière compatible avec la conception de la pièce. Les produits ROE doivent être utilisés conformément à leur conception et inspectés régulièrement pour vérifier leur sécurité, leur usure, leur déformation, leur corrosion et toute autre circonstance pouvant affecter leur capacité... - Page 10 LED contient de l'humidité, il y a un risque d'endommager la LED lorsque la LED chauffe de manière trop agressive. Par conséquent, ROE recommande que si vous n'avez pas utilisé un écran pendant une période prolongée et / ou que l'écran a été stocké dans un environnement très humide, vous chauffez lentement l'écran.
-
Page 11: Consignes De Sécurité
(9) Veuillez ne pas utiliser le produit près de la mer et / ou d’autres lieux exposés à un environnement corrosif. (10) L'installation doit être effectuée par du personnel technique autorisé et qualifié. V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 11 / 48... -
Page 12: Installation Requirements
Weight Do not underestimate the weight of panels and frames. Please make sure the floor or truss on which ROE panels and frames will be installed is capable of handling five times the complete weight of panels and frames. Do not forget to take into consideration the ballast weight required by the stacking system. -
Page 13: Product Introduction
Transparency Solid Pixel Density px 123,904 82,944 123,904 65,536 123,904 / m² Contrast Ratio 6000:1 5000:1 8000:1 5000:1 8000:1 Max BTU AVG BTU V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 13 / 48... - Page 14 (1) The maximum hanging height of the Black Pearl (BP) is 20 panels high, this value is only valid when the ROE Visual hanging bar and complementary accessories are used and in an indoor situation, safety factor is 8 and no climbing is allowed.
-
Page 15: Panel Overview
(3) Thumb screw is only available for BO / BP front service version. The rear service version uses inner hex screws. (4) Lock handle color: BO2 (yellow), BO3 (red), BP2 (green) and BP3. V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 15 / 48... -
Page 16: Basic Dimensions
One BO / BP panel consists of 4 pieces modules. 78.5 Figure 3-3 BO / BP Panel Dimensions (Unit: mm) Figure 3-4 BO / BP Module Dimensions (unit: mm) V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 16 / 48... -
Page 17: Accessories
Figure 4-1 Hanging Bar Dimensions (Unit: mm) Note: The clamp is suited for the truss with a main chord diameter from 48 to 51mm. V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 17 / 48... -
Page 18: Stacking System
BO / BP panels can also use the universal base truss but should be configured at the correct position. Figure 4-3 Universal Base Truss Overview V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 18 / 48... - Page 19 Dimensions: 1040.5 x 290 x 50 mm Rear bridge SAP: 215002S0107 Weight: 1±3% kg Dimensions: 232 x 106.5 x 50 mm Figure 4-4 Stacking Bar_0.5m Dimensions (Unit: mm) V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 19 / 48...
-
Page 20: Cables
BO / BP panels are packed with EVA foam cover before put into flight cases. The side with LEDs should face to the center of the flight case. V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 20 / 48... - Page 21 Loading capacity: 8 pcs panels Dimensions: 1165 x 617 x 835 mm Figure 4-5 BO / BP Panel Flight Case Dimensions (Unit: mm) V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 21 / 48...
- Page 22 BO & BP Series User Manual www.roevisual.com Note: Flight case color: BP2 V2 (purple), BO2 & BP2 (green), BP3 (blue). V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 22 / 48...
- Page 23 Note: If it’s 1.0m stacking bar, then remove the wooden plate in the middle of the flight case. 4.4.4 Stacking System Layout One flight case can load 9 pieces rear support trusses. Figure 4-8 Stacking System Layout - 1 V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 23 / 48...
- Page 24 4.4.5 Labels on the Flight Case Warning: Indoor use. Warning: Keep the flight case upwards. Warning: Maximum stack 3 flight cases. Warning: Fragile V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 24 / 48...
-
Page 25: Installation
(4) Take out the panel from the flight case and remove the protective EVA cover. Keep panels at an angle to avoid damage to LEDs when magnets attract panels. V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 25 / 48... - Page 26 (5) Lock the panel and hanging bar and install the second panel. Lock neighboring panels. (6) Repeat above steps until all panels are installed. (7) It is recommended to uninstall from right to left when uninstall tiles. V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 26 / 48...
-
Page 27: Stacking System
Note: It’s recommended to install panel from left to right based on the rear view.Keep panels at an angle to avoid damage to LEDs when magnets attract panels. V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 27 / 48... - Page 28 (4) Lock the panel with the stacking bar. Connect the rear support truss with the panel by the rear bridge. (5) Adjust the stacking bar and the base truss to make the panel stand upright. V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 28 / 48...
- Page 29 (8) Install more panels and fix them with locks. When the second row of panels are installed, connect the rear bridge and rear support truss. Note: The rear bridge should be used in even rows. V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 29 / 48...
- Page 30 -Above 4m height the rear truss needs extra lateral support. -For more options, please check the 5.3 Ballast Weight Calculation Figure 5-1 BO / BP Series 4m High Extra Lateral Support Overview V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 30 / 48...
- Page 31 BO & BP Series User Manual www.roevisual.com (10) It is recommended to uninstall from right to left when uninstall tiles. V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 31 / 48...
-
Page 32: Ballast Calculation
Please download the ballast calculator at Calculate the right amount of ballast for stacked LED screens | ROE Visual or contact the customer service. V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 32 / 48... -
Page 33: Cabling
BO & BP Series User Manual www.roevisual.com Cabling 5.4.1 Overview Figure 5-2 System Overview V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 33 / 48... - Page 34 Note: The power cable to connect panel in neighboring column is optional and not limited to 2.0m. The length can be based on the project need. V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 34 / 48...
- Page 35 (2) The cascade control data cables should not be more than 100 meters. When it's over 100 meters, please switch to fiber cables. V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 35 / 48...
-
Page 36: Control System
2. Brompton Tessera Control System User Manual 3. Megapixel VR Helios Control System User Manual 8X10GB Fiber (Up to 10km) 1G or 2.5G Copper (Up to 100m) V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 36 / 48... -
Page 37: Triangle Panels
BO & BP Series User Manual www.roevisual.com Triangle Panels Specifications Items Pixel Pitch 2.84 mm Resolution 176 x 176 Pixels (H x V) LED Configuration SMD 1515 Black Weight Per Panel 6.85kg; 15.10lbs Max. Brightness (Calibrated) 1800 nits Refresh Rate 1920 Hz Multiplexing 80 W... -
Page 38: Overview
L-T-1 L-T-2 R-T-2 R-T-2 L-T-2 L-B-1 R-B-1 R-B-1 L-B-1 L-B-2 R-B-2 R-B-2 L-B-2 Front View Rear View Figure 7-3 Triangle Panel Module Layout V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 38 / 48... -
Page 39: Accessories
Connecting 90° corner and 45° corner The white line is always on the long side of the triangle panel. SAP: 304012-01844 Weight: 80 g V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 39 / 48... - Page 40 SAP: 304012-01845 Weight: 130 g SAP: 304012-01846 Weight: 130 g 7.4.5 Locking Plate #5 Connecting two 45° corners SAP: 304012-01847 Weight: 84 g V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 40 / 48...
-
Page 41: Round Corner Panels
Pixel Density px / m² 123,904 82,944 65,536 Contrast Ratio 6000:1 5000:1 5000:1 Certifications CE, ETL, FCC CE, ETL, FCC Max BTU AVG BTU V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 41 / 48... -
Page 42: Overview
L-B-2 R-T-1 R-B-1 L-B-2 L-B-3 L-B-4 R-T-3 R-B-4 R-B-4 R-B-3 L-B-4 L-B-3 Front View Rear View Figure 8-3 Round Corner Panel Module Layout V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 42 / 48... -
Page 43: Accessories
BO & BP Series User Manual www.roevisual.com Accessories SAP: 304012-01842 Weight: 130 g V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 43 / 48... -
Page 44: 90°Corner Panels
Pixel Density px / m² 123,904 82,944 65,536 Contrast Ratio 6000:1 5000:1 5000:1 3D Ready Certification CE, ETL, FCC CE, ETL, FCC Contrast Ratio Contrast Ratio V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 44 / 48... -
Page 45: Overview
Data in Test Button Horizontal Lock Horizontal Lock Receiver Power out Data out Vertical Lock Receiver Module Handle Figure 9-2 90-degree Corner Parts Information V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 45 / 48... -
Page 46: Accessories
Dimensions: 418 x 60 x 205 mm Weight: 5.4 kg Stacking Bar_0.5m SAP: 207002S0200 Dimensions: 418 x 60 x 146.7 mm Weight: 5.4 kg V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 46 / 48... -
Page 47: 10 Service Instruction
Step 2: Spray more and keep cleaning until the panel is clean. Note: In terms of the cleaning frequency, it depends on the actual situation. V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 47 / 48... -
Page 48: Revision History
Corrected the note about the seating system and added safety 2023.10.08 requirements in climbing situations. – Page 14 Vino Modify the diagram of additional support at 4m height. – Page 30 V1.8 | 2023-10-08 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 48 / 48...
