Summary of Contents for Bay-Tek GOATZ-N-ROPES

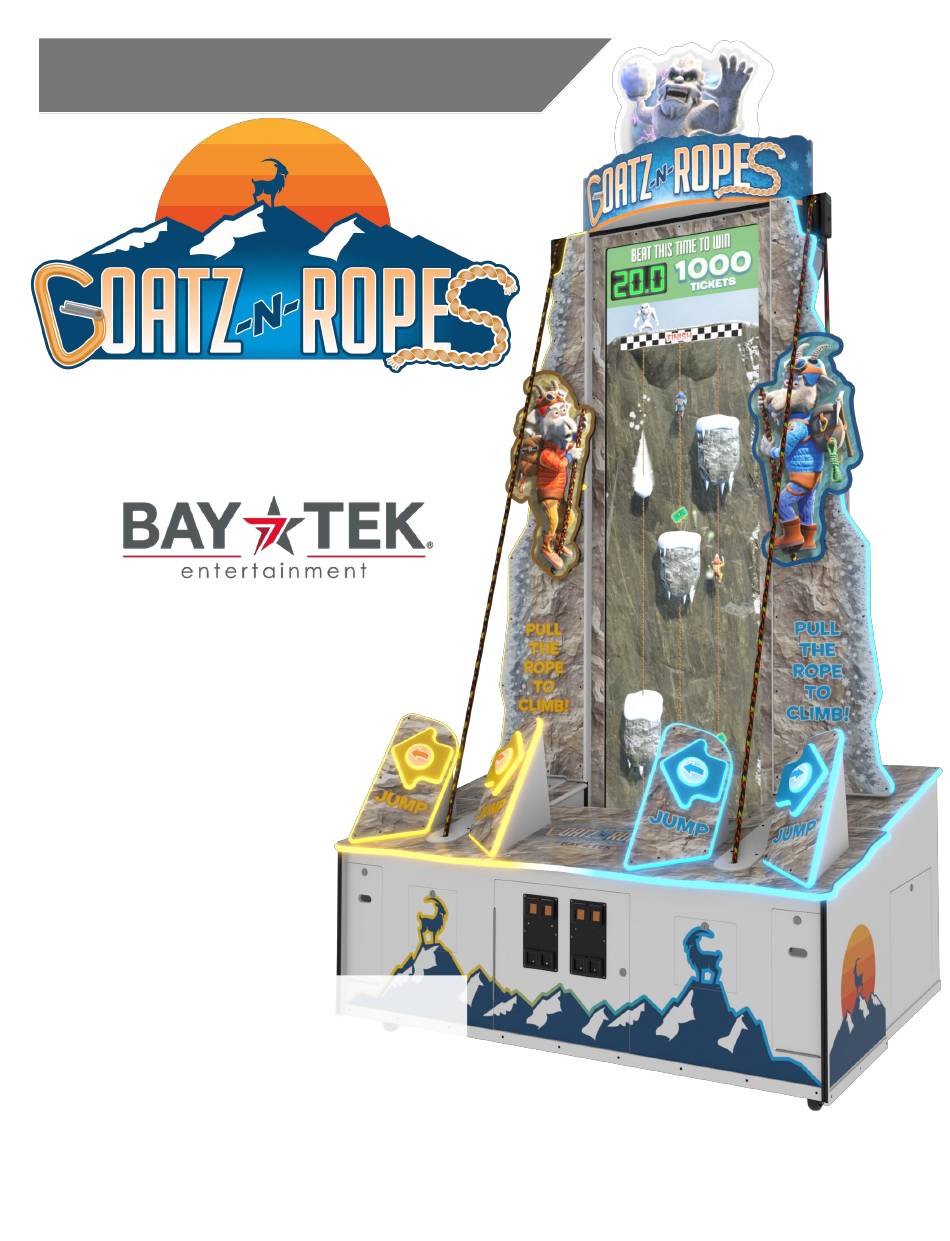

  • Page 1 SERVICE MANUAL PLACE SERIAL NUMBER LABEL HERE...
  • Page 2: Factory Contact Information

    FACTORY CONTACT INFORMATION BAY TEK ENTERTAINMENT Pulaski Industrial Park 1077 East Glenbrook Drive Pulaski, WI 54162 USA SIGN UP TO RECEIVE OUR E-MAILS! Stay up to date on the latest game information, new products launches, early notification of parts specials, updates of retro fit parts, software upgrades, best practices and more! Visit baytekent.com and enter your email to sign up! You can also register your new game at baytekent.com/register SALES...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS FACTORY CONTACT INFORMATION ……..…………………………. 2 TABLE OF CONTENTS...……………………………………………….. 3 WELCOME TO GOATZ AND ROPES ……………………..……………. 4 SAFETY PRECAUTIONS ……………………………………………… GAME SPECIFICATIONS ……………………………………………… GAME SET UP ………………………………………………………. 6 - 14 CARD SWIPE INSTALLATION ……………………………………….. 15 HOW TO PLAY ……………………..…………………………………… 16 MAIN MENU FUNCTIONS ………………………..……………….
  • Page 4: Welcome To Goatz And Ropes

    WELCOME TO GOATZ AND ROPES Congratulations on your purchase! Please take a moment to read through this manual and be sure to contact us if you have any questions, or would like more information. Thank you for your purchase! Your business is important to us and we hope you enjoy this game as much as we do! Please inspect the game for any damaged, loose, or missing parts.
  • Page 5: Game Specifications

    GAME SPECIFICATIONS WEIGHT POWER REQUIREMENTS NET WEIGHT 827 lbs. 375 kg INPUT VOLTAGE RANGE to 240 VAC SHIP WEIGHT 1131 lbs. 513 kg INPUT FREQUENCY RANGE 50/60 Hz GAME DIMENSIONS MAX OPERATING CURRENT WIDTH 73 inches 186 cm 6.2 Amps @ 115 VAC / 3.1 Amps @ 230 VAC DEPTH 53 inches 135 cm...
  • Page 6: Game Set Up

    GOATZ AND ROPES GAME SETUP Welcome to the set up guide for the Goatz and Ropes game. The game will arrive on 2 pallets. Please inspect the pallets for shipping damage and report immediately to the freight company if any damage is found. Tools Needed: Ladder (12-15 foot) 7/16”...
  • Page 7 With the lower rear cabinet on its back, position the 2 wood plates on the top edge of both sides of the lower monitor cabi- net - make sure the T-nuts and on the opposite side! and hand thread 2 of the bolts into the holes on each side, but do not tighten yet.
  • Page 8 Once upright, Unclip the power cord from the inside wall and bring down into the lower cabinet. Top Monitor Assembly Plug into the power cord splitter as shown. Bottom Monitor Assembly On the other inside wall, plug together the 2 molex connectors. Uncoil the HDMI cable and bring up to the top monitor and plug into the HDMI 3 port.
  • Page 9 Unlock and remove the right side door. On the right side of the cabinet, bring the 2 power cords into the front cabinet and plug into the power strip. Plug in the 2 connectors from the front cabinet to the rear cabinet.
  • Page 10 Install Goats: Locate goat plexi and light assembly. Locate 4 washers and 4 nuts from the hardware kit. A5NULO050 A5WAFE020 Align the mounting bolts on the goat with the holes in the white plastic of the right side of game. Feed the yellow and black cable into the lower hole as you slide the 2 mounting bolts into position and secure with 2 washers and nuts.
  • Page 11 Install Ropes: The ropes are installed over white plastic pulleys and then tensioned by the lower rear pulley. Starting with the left side: Open the left side door. The rope should already be around this pulley and the bolts and nuts already loose. Simply verify that the 2 bolts and nuts on the top bracket and 2 bolts on the bottom bracket are loose and will allow the pulley to slide back and forth.
  • Page 12 Install Left and Right, Front and Rear Rope Channel White Plastic Covers These 4 plastic pieces slide in the wood and are installed with 10 Phillips bolts on each side. Locate 20 of Phillips bolts from the hardware kit. A5SCPH017 Rear covers Front covers Tension the Ropes...
  • Page 13 Build the Marquee: Locate the black painted wood marquee support. Locate 6 bolts, lock washers, and washers A5BOHH060 A5WASI020 A5WAFL060 Looking down into the marquee, install 2 bolts, lock washers, and washers into the lower holes using a 7/16” wrench. Locate the front marquee assembly.
  • Page 14 Build the Marquee: Locate the black painted wood marquee support. Locate 6 bolts, lock wash- ers, and washers A5BOHH060 A5WASI020 A5WAFL060 Looking down into the marquee, install 2 bolts, lock washers, and washers into the lower holes using a 7/16” wrench. Locate the front marquee assembly.
  • Page 15: Card Swipe Installation

    CARD SWIPE SYSTEM INSTALLATION The Goatz and Ropes game is pre-wired with a UCL (Universal Card Link) connector to accept Card Swipe systems from many different manufactures. Please follow these instructions to make full use of this capability. Option #1: This would Card swipe systems may come with a standard 9 pin Molex normally plug...
  • Page 16: How To Play

    HOW TO PLAY The goal is to climb to the top of the mountain and if fast enough - win the bonus! Head to head competition between players adds to excitement! The game time is adjustable in the game menu. The bonus is adjustable and options to increment per game played.
  • Page 17: Main Menu Functions

    MAIN MENU FUNCTIONS The Menu and Menu Select buttons are located inside the front door. Hold the MENU button down for 1 second to open the main menu on the display. Press MENU to scroll through the options, and MENU SELECT to change the settings.
  • Page 18 PAYOUT SETTINGS MENU Scroll through the options by pressing the “MENU” button. Change selection with the “SELECT” button. Scroll to “BACK” and press the “SELECT” button to go back to the main menu. Default settings are highlighted in yellow below. Credits Swipe Free...
  • Page 19 PAYOUT SETTINGS MENU Scroll through the options by pressing the “MENU” button. Change selection with the “SELECT” button. Scroll to “BACK” and press the “SELECT” button to go back to the main menu. Default settings are highlighted in yellow below. Fixed Tickets Disabled …...
  • Page 20: Game Settings Menu

    GAME SETTINGS MENU Scroll through the options by pressing the “MENU” button. Change selection with the “SELECT” button. Scroll to “BACK” and press the “SELECT” button to go back to the main menu. Default settings are highlighted in yellow below. Game Length Sets how long the game will last in seconds Starting Fastest Time...
  • Page 21: Advanced Settings Menu

    ADVANCED SETTINGS MENU Scroll through the options by pressing the “MENU” button. Change selection with the “SELECT” button. Scroll to “BACK” and press the “SELECT” button to go back to the main menu. Default settings are highlighted in yellow below. Goat Climb Speed Normal Fast...
  • Page 22: Payout Setting Recommendations

    ADVANCED SETTINGS MENU Scroll through the options by pressing the “MENU” button. Change selection with the “SELECT” button. Scroll to “BACK” and press the “SELECT” button to go back to the main menu. Default settings are highlighted in yellow below. Enemy Attack Delay …...
  • Page 23: Statistics Menu

    STATISTICS MENU Scroll through the options by pressing the “MENU” button. Change selection with the “SELECT” button. Scroll to “BACK” and press the “SELECT” button to go back to the main menu. Total Games - Shows the total number of games played. Single Player Games - Shows the total number of 1 player games played.
  • Page 24 GAME DIAGNOSTIC MENU Scroll through the options by pressing the “MENU” button. Change selection with the “SELECT” button. Scroll to “BACK” and press the “SELECT” button to go back to the main menu. Inputs: Shows the left and right buttons being pressed for both players.
  • Page 25: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Troubleshooting Strategy Use common sense and a systematic method of troubleshooting to determine the exact problem, probable cause and remedy. Use the process of elimination to find the faulty component. Always check for the simple and obvious causes first such as unplugged, loose or broken wires and bad sensors, bent, pinched, stuck or jammed components.
  • Page 26 TROUBLESHOOTING GUIDE Problem Probable Cause Remedy Game not coining up Look for communication and Refer to “I/O Aux Board Issue” power on the I/O Aux Board diagnostic section. Enter Diagnostic Mode to see for that player. if Credits Increment when coin is inserted.
  • Page 27 TROUBLESHOOTING GUIDE Problem Probable Cause Remedy Opto Sensor on ticket Blow dust from sensor and clean with isopropyl Tickets do dispenser dirty. alcohol. Tickets on Faulty ticket dispenser. Replace with working dispenser to isolate the dispense monitor problem. (A5TD1) does not Wrong match Notch on tickets cut too...
  • Page 28 TROUBLESHOOTING GUIDE Problem Probable Cause Remedy Loose or bad connection Refer to wiring diagram. Check multiple connections, re- LED Lights in seat cables from Controller Board to Side Mountain Plexi Side Mountain Lights. CE30516, CE30520, CE30517, CE30507, CE30541 Plexi are not Test LED’s in Diagnostic Enter menu, scroll to Diagnostic Menu, &...
  • Page 29 TROUBLESHOOTING GUIDE Problem Probable Cause Remedy Ensure Rope Sag Sensor Inspect the sensor board. Clean opto. Refer to “Sag Rope Tension is not blocked or dirty. Sensor Operation” Section. If rope is sagging, refer to Error on Screen. “How to Adjust Rope Tension” Section. Refer to wiring diagram.
  • Page 30: Circuit Board Layout

    CIRCUIT BOARD LAYOUT A5GC8001 Graphic Card AAHD0032-GNR M2 Hard Drive AACB30500A AACB30500A CE30500 Controller Board CE30503 Controller Board CE30503 CE30500 CE30516 CE30517 CE30514 AAIMB1-GNR CE30527 CE30526 Power In from Power Supply A5CB5156B Power Dist. Board AACE30518 Speakers AACE30526 CE30521 Power to Right Controller Board A5CB9621A On/Off...
  • Page 31: Wiring Diagrams

    LEFT DOOR BOARD WIRING DIAGRAM Coin Switches and Lights 12 Volts DC AACBL4A-DOORA 3.3 VDC normally from Power on switches. Distribution Goes to 0 when Board activated. To Ticket Dispenser Part # A5TD1 12 Volt Power Enable Signal Com Ground AACE30521 Notch Signal Ground...
  • Page 32 RIGHT DOOR BOARD WIRING DIAGRAM Coin Switches and Lights 12 Volts DC AACBL4A-DOORA 3.3 VDC normally from Power on switches. Distribution Goes to 0 when Board activated. To Ticket Dispenser Part # A5TD1 12 Volt Power Enable Signal Com Ground AACE30522 Notch Signal AACE30525...
  • Page 33 SOUND WIRING DIAGRAM Left Speaker Right Speaker AACE8811A AACE8811A 4 Ohms 4 Ohms AACE30520 AACE30507 Rear Section Front Section AACE30517 AACE30516 A5GC8001 Graphic Card A5CE2321 from Green Socket on Motherboard to A5CEAU010 cable AACE30518 Speakers A5CE2321 Audio Filter cable AAIMB1-GNR Motherboard A5CB9621A Audio Amplifier...
  • Page 34 BUTTONS WIRING DIAGRAM AACE30503 AACE30500 AACE30500 AACE30503 AACB30500A AACB30500A Controller Board Controller Board Controller Boards: Dip set to 1 for the left (yellow) side. Dip set to 2 for the right (blue) side CE30527 CE30526 AACE30543 Sag Sensor AACE30543 Sag Sensor AACB3850A Rope Sag AACB3850A...
  • Page 35: Power Supply Wiring Diagram

    POWER SUPPLY WIRING DIAGRAM Controller Boards: Dip set to 1 for the left (yellow) side. Dip set to 2 for the right (blue) side AACB30500A AACB30500A Controller Board Controller Board AAIMB1-GNR Motherboard AACE30526 AACE30527 Power In from Power Supply A5CB5156B Power Dist.
  • Page 36 COMMUNICATION WIRING DIAGRAM Controller Boards: Dip set to 1 for the left (yellow) side. Dip set to 2 for the right (blue) side AACB30500A AACB30500A Controller Board Controller Board AACE30527 AACE30526 Power in from Power in from A5HU16000 AAIMB1-GNR Power Dist Bd Power Dist Bd USB Hub Motherboard...
  • Page 37 LED LIGHTING WIRING DIAGRAM AACE30542 Marquee Yeti LED’s AACE30545 AACE30546 AACE30544 AACE30546 AACE30547 AACE30545 AACE30545 AACE30515 Marquee Rear Section AACE30511 Rear Section Front Section AACE30536 AACE30537 AACE30537 AACE30536 Left Side Left Left Side Right Right Side Left Right Side Arrow LED’s Jump LED’s Jump LED’s Right Arrow...
  • Page 38 MOUNTAIN LED WIRING DIAGRAM AACE30540 AACE30540 Side Mountain Side Mountain Top LED Top LED AACE30535 AACE30553 Left Goat Light Right Goat AACE30541 AACE30541 Side Mountain Side Mountain Bottom LED Bottom LED AACE30520 AACE30507 Sound to Sound to speaker speaker AACE30539 AACE30539 Left Top Rear Left Top Rear...
  • Page 39: Ac Power Wiring Diagram

    AC POWER WIRING DIAGRAM A5CORD5 Power In Cord From Wall Power Cord attached to monitor 55” Monitor A5MO5506 AACB15001 AC Bleeder A5FI9012 Board Line Filter A5CORD35A HDMI Cable to HDMI 3 Power Cord attached to monitor 55” Monitor A5MO5506 A5SP4100 AACE30530 A5CORD47 Display Port...
  • Page 40: Door Board Operation

    DOOR BOARD OPERATION Goatz and Ropes games uses 2 Door Boards. (Part # AACB9605A-GNR) One receives inputs from the left sides sensors, buttons, and switches. One receives inputs from the right sides sensors, buttons, and switches. Dipswitch: Both dips OFF for the left (yellow) side. Dip 1 ON, Dip 2 OFF for the right (blue) side.
  • Page 41: Controller Board Operation

    CONTROLLER BOARD OPERATION Goatz and Ropes games uses 2 Controller Boards. (Part # AACB30500A) One controls the left sides lights and buttons, one controls the right sides lights and buttons. Dipswitch: Set to 1 for the left (yellow) side. Set to 2 for the right (blue) side. LED lights: Blue LED should be flashing.
  • Page 42: Aaimb1 Motherboard

    AAIMB1 MOTHERBOARD Goatz and Ropes games use the AAIMB1 motherboard, along with a graphic card. There are a few differences from Baytek’s other games’ motherboards. Difference # 1: The power in from the power supply connection is only a 4 pin plug. Power In from Power Supply AAIMB1...
  • Page 43: Power Supply Diagnostics

    POWER SUPPLY DIAGNOSTICS 1.) Verify AC power to game. Check power strip in front door. The rocker switch should be illuminated. 2.) Check connection to power supply. 3.) Ensure Power Supply switch is set to 115V (or 230V) (Some model power supplies may not have this) 4.) Ensure Power switch is on.
  • Page 44: Bill Acceptor Information

    BILL ACCEPTOR INFORMATION To 12 Volt DC Bill The default Goatz & Ropes game does not include a bill acceptor mounting location and cabling. Acceptor A5AC9101 or If a DBA is required, it can be mounted in place of the coin door with a few modifications. A5AC9094 Please contact Baytek Parts and Service for more information.
  • Page 45: How To Adjust Rope Tension

    HOW TO ADJUST ROPE TENSION Goatz and Ropes uses 2 Sag Sensors that detect the slack in the left and right ropes. The ropes will stretch over time, and too much stretching will result in the rope slipping on the pulley that detects the speed of the rope and the player will not be able to move the character up the screen.
  • Page 46: How To Replace Jump Switches

    HOW TO REPLACE JUMP SWITCHES The Jump Switches are accessed from the rear of the button tower. Instructions: Remove the 6 screws from the black plastic panel using a #2 square bit. The back of the switch can now be accessed. Carefully twist the switch a 1/8 turn to the left and pull the switch from the button housing.
  • Page 47: How To Replace Encoder Sensor

    HOW TO REPLACE ENCODER SENSOR The encoder sensor determines how fast the player climbs up the mountain. Refer to “Encoder Sensor Operation” and the Diagnosis menu Option to determine if this sensor is faulty and needs to be replaced. Instructions: Unplug the USB Cable Unscrew the Encoder Wheel using a Phillips screwdriver.
  • Page 48: How To Replace The Rope

    HOW TO REPLACE ROPE Install Ropes The rope will stretch over time and will need to be replaced. Instructions: Open the side door and loosen the 2 bolts and nuts on the top bracket and 2 bolts on the bottom bracket to loosen the rear pulley. Remove Front and Rear Rope Channel White Plastic Covers These 2 plastic pieces slide in the wood.
  • Page 49 HOW TO REPLACE ROPE Slide the new rope under the left side lower mountain - into the slot gap and down into the cabinet. Bring the rope to the top of the cabinet and drop into the top pulley. Replace the 2 bolts using a Phillips Screwdriver.
  • Page 50: How To Replace Monitor

    HOW TO REPLACE MONITOR The monitor is replaced from the back of the game. The monitor wood will slide out of the back of the game. Instructions: Power down the game by unplugging it from the wall. Unlock and remove the back door. Prepare the monitor for removal: - Unplug the HDMI cable from the HDMI3 port and remove from the wood frame to be removed.
  • Page 51: I/O Board Dipswitch Settings

    I/O BOARD DIPSWITCH SETTINGS Door Boards: SWITCH DESCRIPTION ON OFF Both dips OFF for the left (yellow) side. Dip 1 ON, Dip 2 OFF for the right (blue) side SHOW GAME Does not dispense tickets and clears all accumulated credits if ON AMUSEMENT ONLY Does not dispense tickets if ON NJ LOCKOUT...
  • Page 52: Game Decal Diagram

    GAME DECAL DIAGRAM...
  • Page 53: Parts Pictures

    PARTS PICTURES A5BR30500 A5BU30500 A5BU30501 A5CA1005 A5EW30500 A5HU16000 A5LK2001 A5LK5002 A5RP30500 AAPB2700A AASW200 W5HG1015 W5HG1055 W5KE5000 W5TM4000 A5CB1499 A5HO1003 A5BK9999 A5ME30500 A5ME30501 A5ME30502 A5ME30503 A5ME30504 A5ME30505 A5ME30506 A5ME4179 A5ME4180 A5ME5508 A5TT4100 A5TT4101 AABK1013 A5CE2321 A5CEAU010 A5CORD33 A5CORD35A A5CORD47 A5CORD5 A5CORD5001 A5CORD5003 A5SP4100 A5CORD58 A5OU5000 AACE30500...
  • Page 54 PARTS PICTURES AACE30522 AACE35023 AACE30524 AACE30525 AACE30526 AACE30527 AACE30528 AACE30529 AACE30530 AACE30531 AACE30532 AACE30533 AACE30534 AACE30535 AACE30536 AACE30537 AACE30538 AACE30539 AACE30540 AACE30541 AACE30542 AACE30543 AACE30544 AACE30545 AACE30546 AACE30547 AACE8811A AACO1020 AACBL4A-DOORA A5DE0042 A5DE30500 A5DE30501 A5DE30502 A5DE30503 A5DE30504 A5DE30505 A5DE30506 A5DE30507 A5DE30508 A5DE30509 A5DE30510 A5DE30511 A5DE30512 A5DE30513...
  • Page 55: Parts List

    PARTS PICTURES PARTS LIST A5DE30524 A5DE30525 A5DE30526 A5DE30527 A5PT30501 A5PT30502 A5PT30503 A5CB5156B A5CB9621A A5FI9012 A5GC8001 A5MO5506 A5PS1013 A5TD1 AACB15001 AACB30500A AACB3850A AACB9605A-GNR AAHD0032-GNR AAIMB1-GNR AASE30500A PARTS LIST PART # DESCRIPTION PART # DESCRIPTION A5BR30500 Bearing, Ball, R10, 5/8" (4 per game) A5ME30504 Metal, Tensioner Bracket (4 per game) A5BU30500...
  • Page 56 PARTS LIST PART # DESCRIPTION PART # DESCRIPTION AACE30504 Cable, P1-L/P2-R Button Light Jumper (2/game) A5DE30502 Decal, Left Top Monitor Side, Printed Plexi AACE30506 Cable, P1-R/P2-L Button Light Jumper (2/game) A5DE30503 Decal, Right Top Monitor Side, Printed Plexi AACE30507 Cable, Player 2 Right Side Rear Cable A5DE30504 Decal, Left Bottom Monitor Side, Printed Plexi AACE30511...
  • Page 57: Maintenance Log

    REPAIR/MAINTENANCE LOG If you need to make repairs or order replacement parts it is a good idea to keep a log. Below is a chart you can use to track repairs and maintenance. DATE MAINTENANCE PERFORMED PARTS ORDERED MISC. NOTES...
  • Page 58: Technical Support

    TECHNICAL SUPPORT Excellent customer service is very important to Bay Tek Entertainment! We know that keeping your games in great operating condition is important to your business. When you need us, we are here to help. You can call us for free technical assistance, and you can count on us to have parts on-hand to support your game.
