Operating guide
2. System design
© Danfoss | 2023.03
Installation, Operation and Maintenance APP 21-46 pumps
The design of the system must ensure that
self-emptying of the pump during standstill is
avoided.
The inlet pressure of the pump must never
exceed the outlet pressure. This may typically
occur in boosted or open-ended systems with
direct water supply.
2.1 Open-ended systems with direct water
supply
The pump is supplied with water directly from a
feed pump.
The inlet pressure for APP 21-38 must be at least
2 barg (29 psig) and 3.5 barg (50.8 psig) for the
APP 46, depending on speed. It must not exceed
5 barg (72.5 psig) continuous.
To protect the pump from being damaged by
peaks of high-pressure in case the pump stops
momentarily, it is required to mount a low-
pressure relief valve on the inlet line.

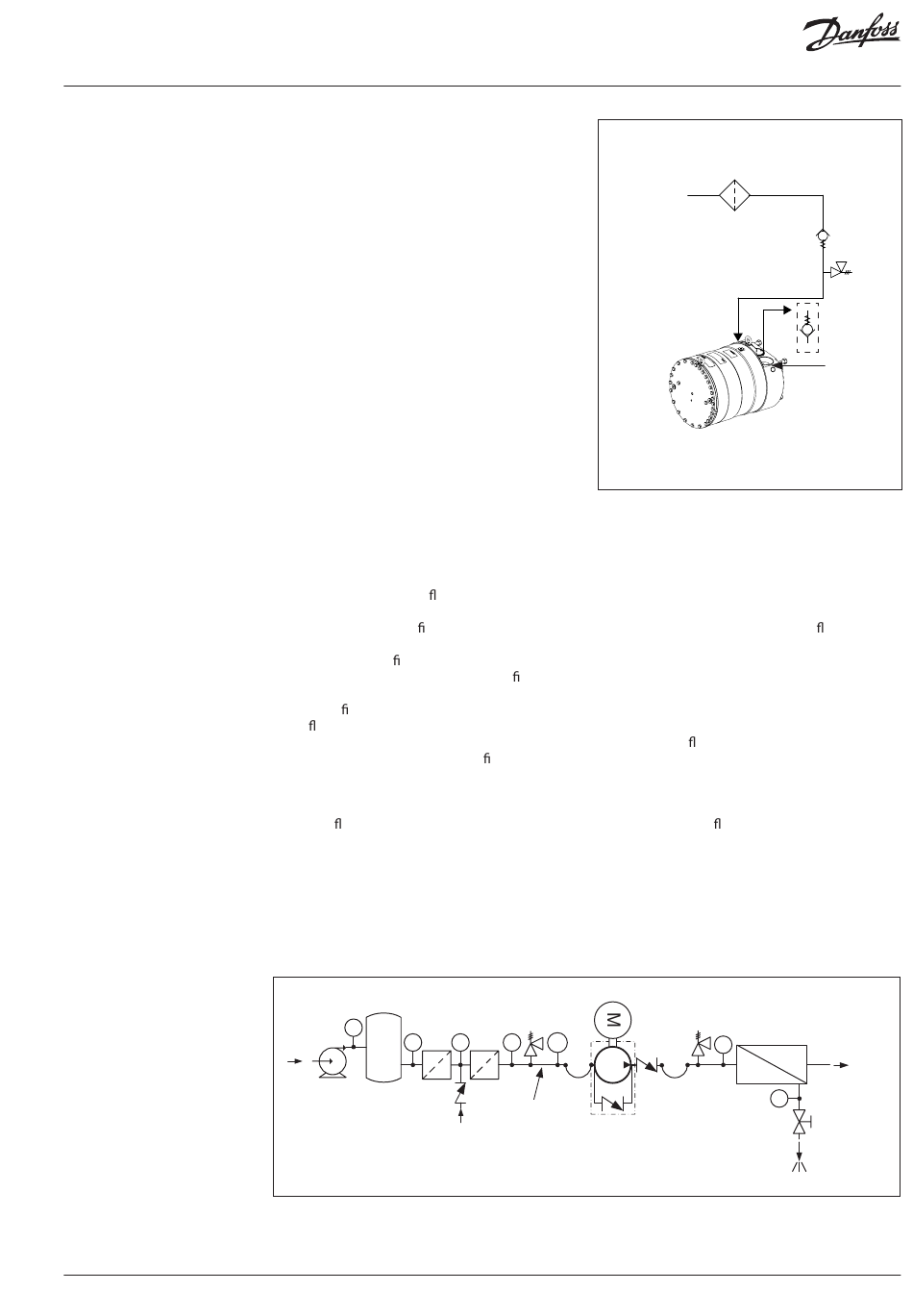

2.2 Preferred RO system design and P&ID
1. Dimension the inlet line to obtain minimum
pressure loss (large ow, minimum pipe
length, minimum number of bends/
connections, and ttings with small
pressure losses).
2. Place an inlet lter (1) in front of the APP
pump (2). Please consult Danfoss lter data
sheet for guidance on how to select the
right lter. Thoroughly clean pipes and
ush system prior to start-up.
3. Place a monitoring pressure switch (3) set at
min. inlet pressure between lter and
pump inlet. The monitoring switch must
stop the pump at pressures lower than
minimum pressure.
4. Use exible hoses (4) to minimize vibrations
and noise.
5. In order to eliminate the risk of damage and
cavitation, a positive pressure at the inlet (5)
is always to be maintained at min. inlet
pressure and max. inlet pressure.
Media filter
PI
1
PI
Feed
Fresh water
permeat flush
It is recommend to install safety valve or a
pressure relief valve (9) in order to avoid high-
pressure peaks in case the pump stops momen-
tarilly or is spinning backwards.
6.
7.
8.
Note: If a non-return valve is mounted in the
inlet line, a low-pressure relief valve is also
required between non-return valve and pump
as protection against high-pressure peaks.
9 3
1
PI PI
PT 2
5
6
Inlet
For easy system bleeding and ushing, a
bypass non-return valve (6) is integrated in
the APP pump.
A non-return valve (7) in outlet can be
installed in order to avoid backspin of the
pump. The volume of water in the mem-
brane vessel works as an accumulator and
will send ow backwards in case of the
pump stops momentarily.
A safety valve or a pressure relief valve (8)
can be installed in order to avoid system
damage as the Danfoss APP pump creates
pressure and ow immediately after start-
up, regardless of any counter pressure.
PI
7
4
PI
Brine
180R9407 | AQ274347577038en-000902 | 41
Outlet
Permeate
