Operating guide

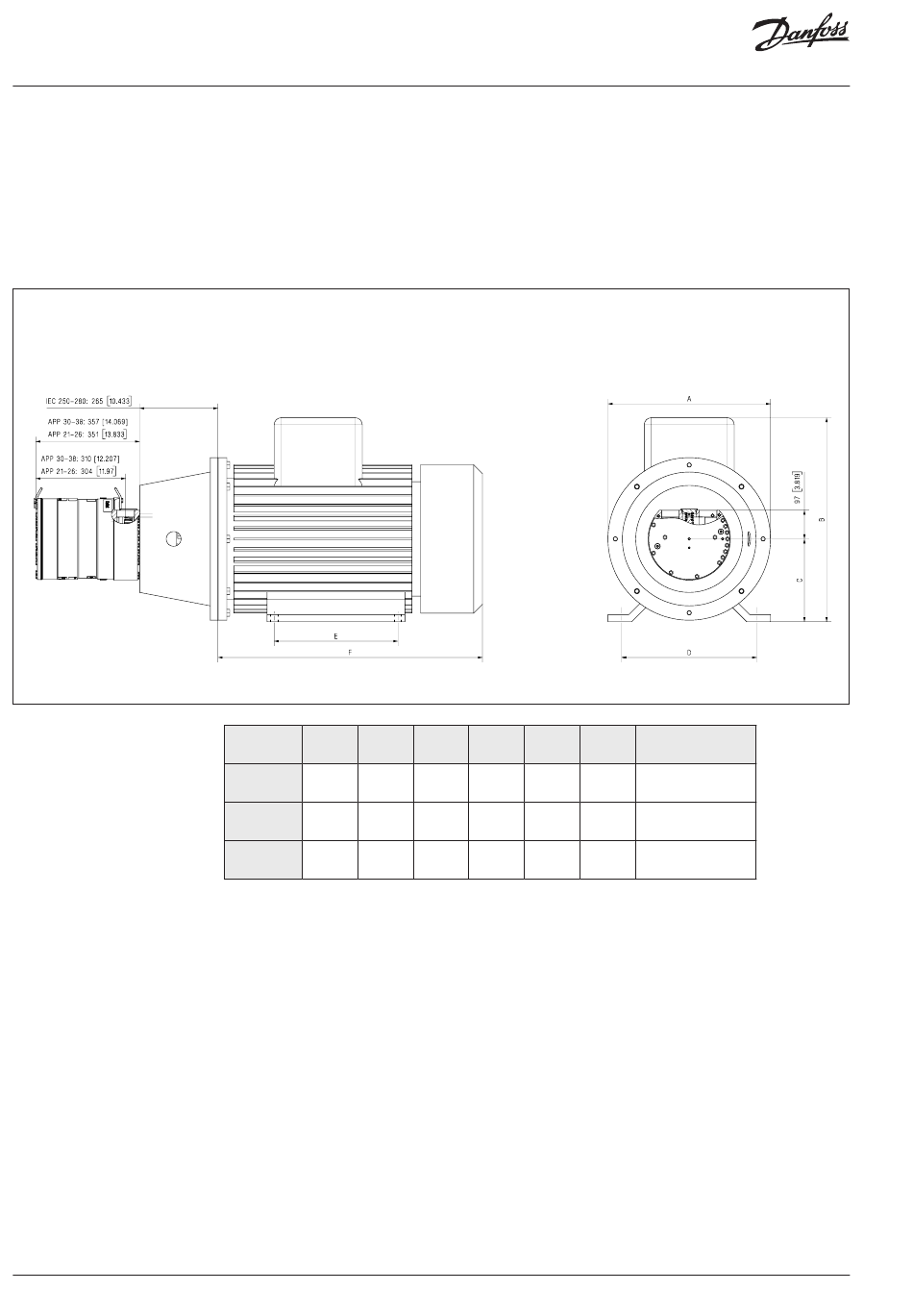

11. Dimensions with motor
unit
APP 30/1200-APP 38: 357 [14.069]
APP 21-26 & APP 30/1500: 351 [13.833]
APP 30/1200-APP 38: 310 [12.207]APP
21-26 & APP 30/150: 304 [11.97]
34 | 180R9407 | AQ274347577038en-000902
Installation, Operation and Maintenance APP 21-46 pumps
11.5 APP 21.0-38.0
The examples of assemblies with motor are only
for IEC motors and couplings. Please make sure
to check required motor power and dimensions
when selecting size of pump and motor. For ad-
vice and calculation tool, please contact Danfoss.
A mm B mm
Pump
(inch) (inch)
550 635
APP 21-24
(21.65) (25.0)
550 693
APP 24-26
(21.65) (27.28)
550 693
APP 26-38
(21.65) (27.28)
C mm D mm E mm F mm
(inch) (inch) (inch) (inch)
250 406 349
(9.84) (15.98) (13.74) (30.31)
280 457 368
(11.02) (17.99) (14.49) (33.27)
280 457 419
(11.02) (17.99) (16.50) (35.24)
IEC Electric motor
770
55 kW, IEC 250 M-4
845
75 kW, IEC 280 S-4
895
90 kW, IEC 280 M-4
