Installation, Operation and Maintenance APP 21-46 pumps

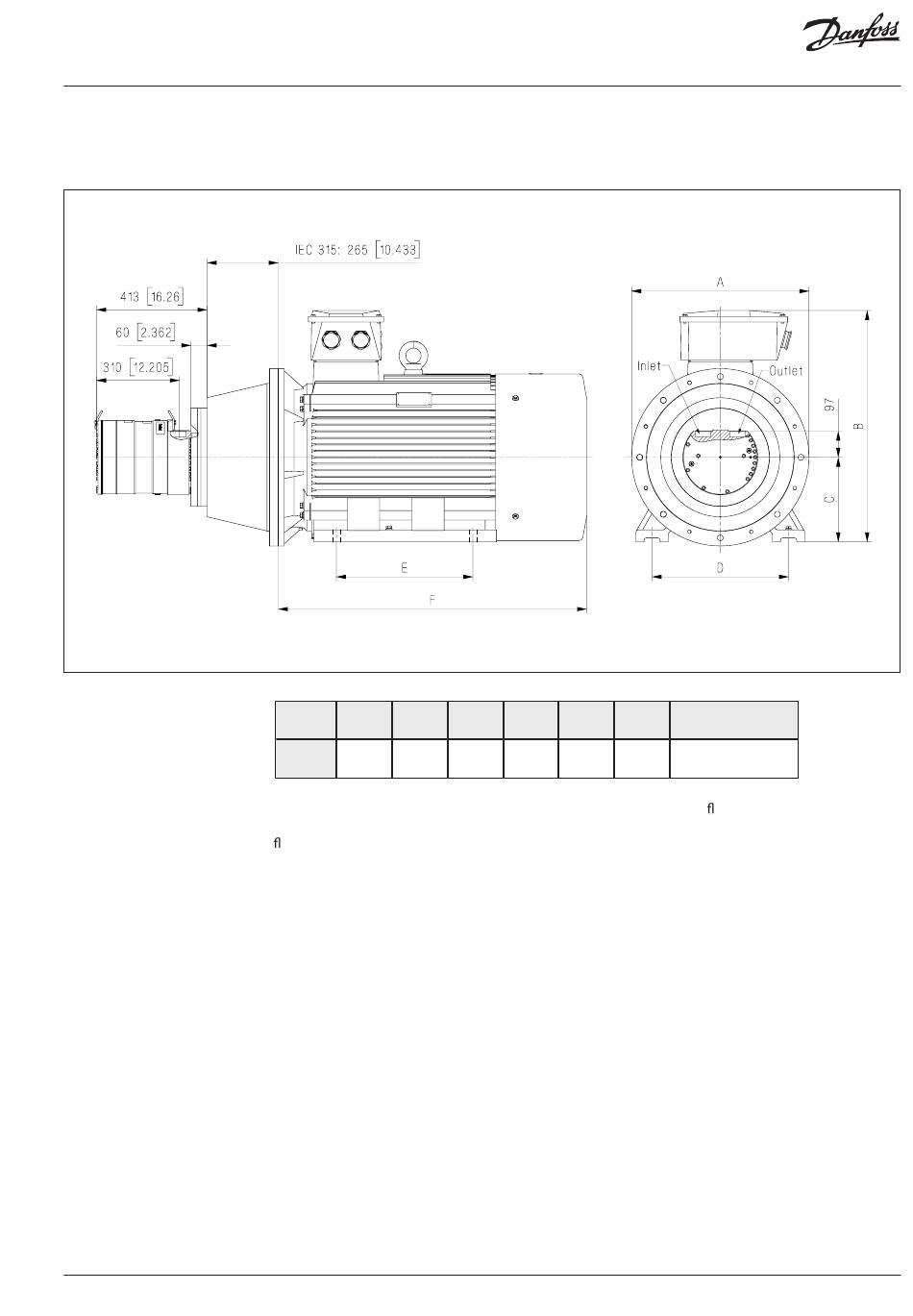

11.6 APP 46
A mm B mm
Pump
(inch) (inch)
660 861
APP 46
(25.98) (33.90)
Due to the design and dimensions of an APP 46
pump, bell housing and IEC motor, a dampening
ange on the bell housing is standard when an
IEC 315 motor is selected.
C mm D mm E mm F mm
(inch) (inch) (inch) (inch)
315 508 406 1038
(12.40) (20.00) (15.98) (40.87)
If this dampening ange for some reason is
deselected, an extension for the non-return
valve may be needed in order to mount the pipe
or hose with Victaulic clamps. For details and
relevant accessories, please contact Danfoss.
IEC Electric motor
110 kW, IEC 315 S-4
