Danfoss iC7 Series Operating Manual page 19

Encoder/Resolver Option OC7M0
Operating Guide
Table 13: Parameters for BiSS Encoder
Parameter
9.4.1 Interface configuration
9.4.4 Encoder Supply Voltage
9.6.1 Resolution
9.6.2 Data Length
Encoder supply + 17
Encoder supply GND
15
Track Z+ (Clock +) 10
8
Track Z– (Clock –)
Track D+ (Data +) 6
4
Track D– (Data –)
Plug detect + 13
Plug detect – 11

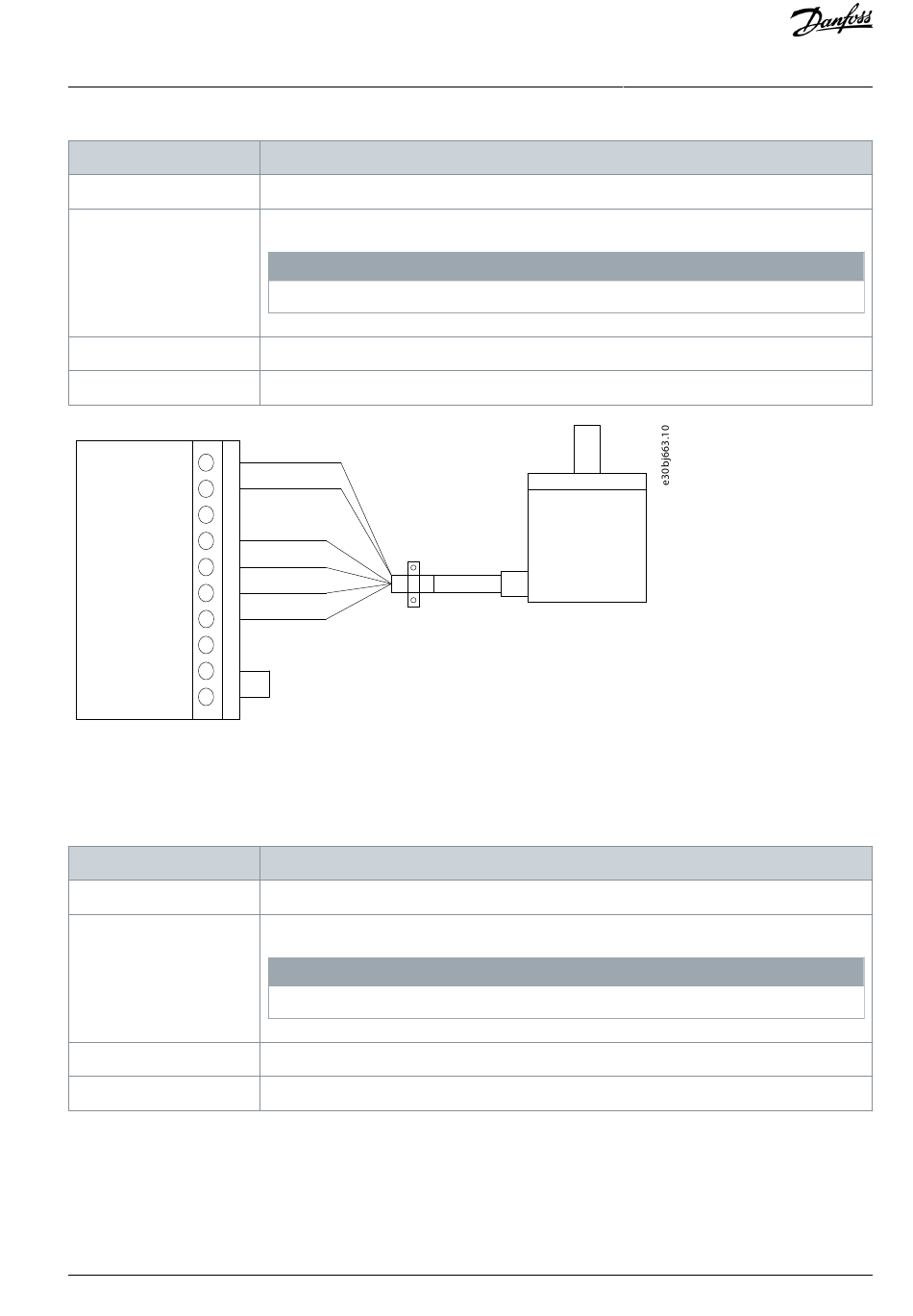

Illustration 11: Wiring Configuration for 2-Track BiSS Encoder
4.8.8 HIPERFACE DSL
Absolute position is read from the encoder and used to set the actual position after power-up.
Table 14: Parameters for HIPERFACE DSL
Parameter
9.4.1 Interface configuration
9.4.4 Encoder Supply Voltage
9.6.1 Resolution
9.6.2 Data Length
Danfoss A/S © 2022.02
Description
Select [29] BiSS Z,D.
Set the appropriate supply voltage for the connected encoder.
Voltage can be up to 24 V. Setting the voltage too high can damage the connected encoder.
Set the number of bits used for 1 revolution.
Set total number of bits used for position/angle + revolution count.
®
Description
Select [26] Hiperface DSL D.
Set the appropriate supply voltage for the connected encoder.
Voltage can be up to 24 V. Setting the voltage too high can damage the connected encoder.
Set the number of bits used for 1 revolution.
Set total number of bits used for position/angle + revolution count.
Encoder/Resolver Installation and
N O T I C E
N O T I C E
AQ390830267692en-0001 / 136R0273 | 19
Configuration
