Danfoss iC7 Series Operating Manual page 14

Encoder/Resolver Option OC7M0
Operating Guide
Encoder supply + 17
Encoder supply GND
15
Track A+
18
Track B+
14
Plug detect + 13
Plug detect – 11

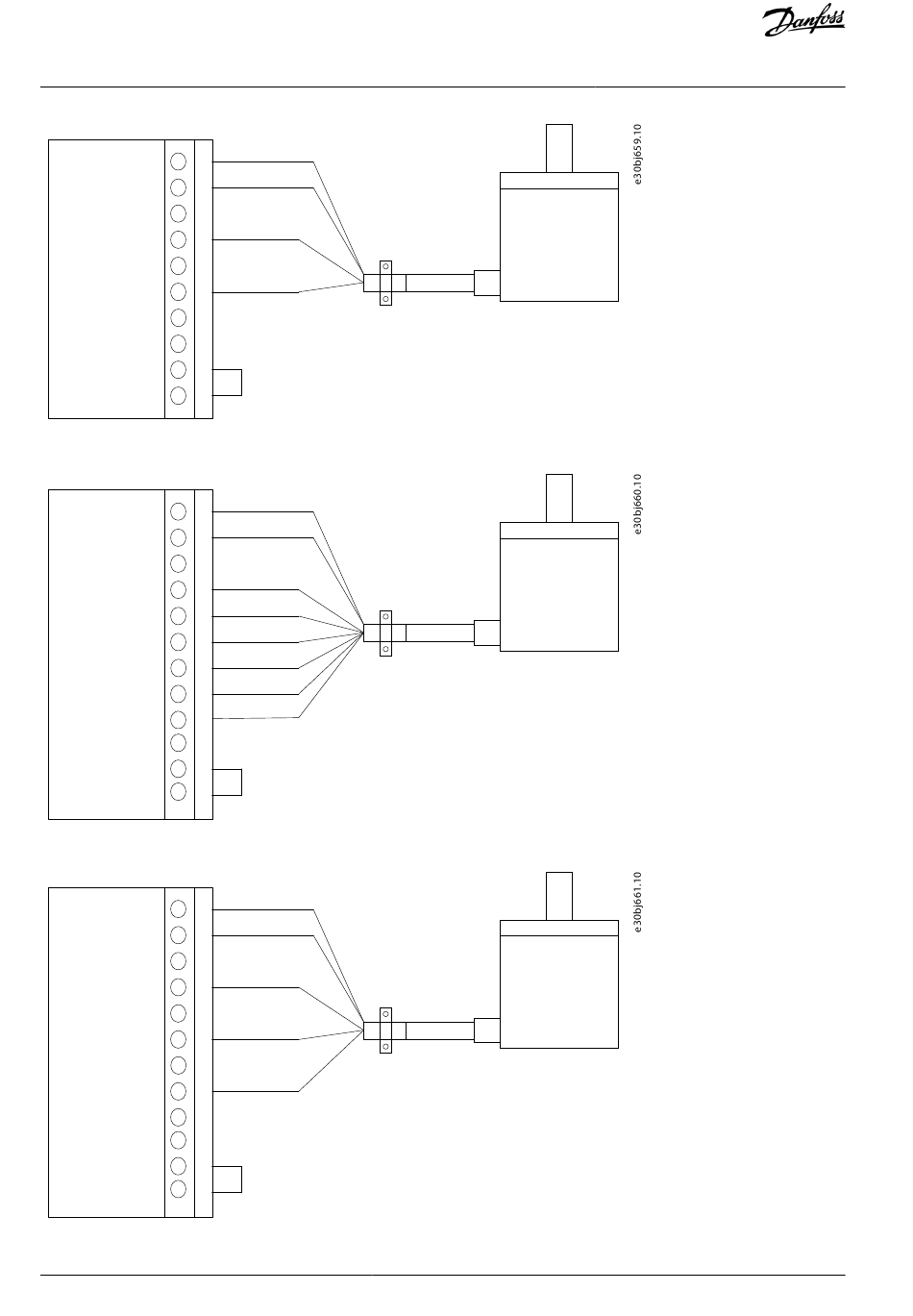

Illustration 3: Wiring Configuration for Incremental Encoder, 2 Single Tracks (TTL, HTL)
Encoder supply + 17
Encoder supply GND
15
Track A+
18
Track A–
16
Track B+
14
Track B–
12
Track Z+ 10
Track Z– 8
Plug detect + 13
Plug detect – 11
Illustration 4: Wiring Configuration for Incremental Encoder, 3 Differential Tracks (TTL, HTL)
Encoder supply + 17
Encoder supply GND
15
Track A+
18
Track B+
14
Track Z+ 10
Plug detect + 13
Plug detect – 11
Illustration 5: Wiring Configuration for Incremental Encoder, 3 Single Tracks (TTL, HTL)
