Dyness Battery System
QUICK INSTALLATION GUIDE
STACK100
File version-20241022-V1-EN information might be subject to change without notice during product improving.
V1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the STACK100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dyness STACK100

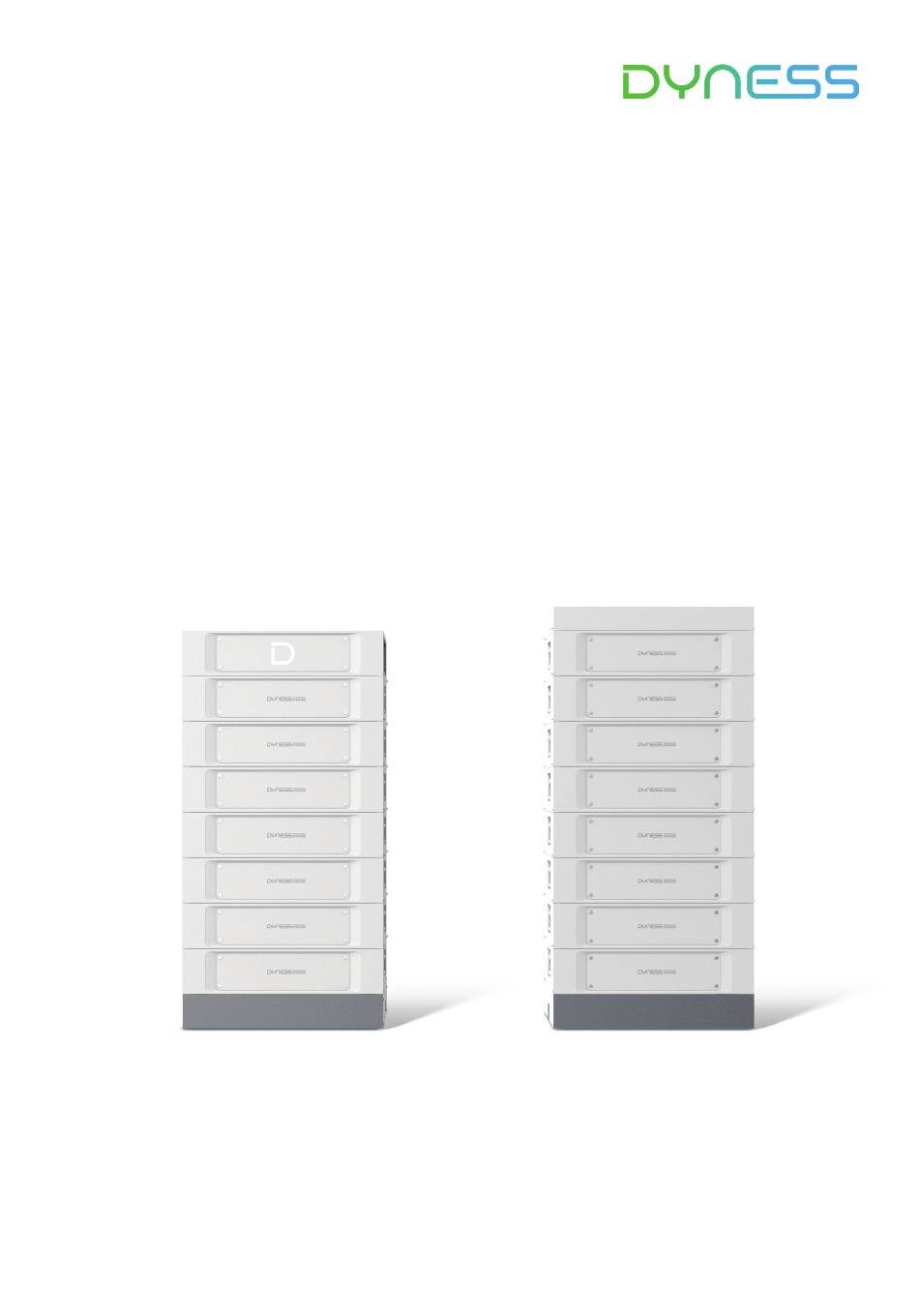

  • Page 1 Dyness Battery System QUICK INSTALLATION GUIDE STACK100 File version-20241022-V1-EN information might be subject to change without notice during product improving. V1.0...
  • Page 2: Checking Before Installation

    Socket wrench Torque Wrench Drilling machine Figure 1-1 Installation tools Safety Gear We recommend wearing the following safety gear when working with batteries: Insulated gloves Safety goggles Safety shoes Figure 1-2 Safety gear © Dyness reserves the copyright of this document.
  • Page 3 STACK100-QUICK-REFERENCE-GUIDE Check the components of the STACK100 Battery System in different capacities Table 1-1 Scope of delivery Package Name Specifications Quantity Image SBDU100 590*390*133.5mm STACK100 590*390*100mm base To secure with the Hanging ear wall Expansion M6*80 screw Expansion M12*100 screw...
  • Page 4 Terminal OT4-6 (optional) Extended Communication communicatio between two cluster n line Power cable Two clusters in series UL10269 4AWG fix to the Hanging ear wall Expansion M6*80 screw Expansion M12*100 screw © Dyness reserves the copyright of this document.
  • Page 5 46.1kWh A+B*9 STACK100-10S 51.2kWh A+B*10 STACK100-11S 56.3kWh A+B*11 STACK100-12S 61.4kWh A+B*12 A+B*13+C STACK100-13S 66.6kWh A+B*13 (Recommend two columns) A+B*14+C STACK100-14S 71.7kWh A+B*14 (Recommend two columns) A+B*15+C STACK100-15S 76.8kWh A+B*15 (Recommend two columns) © Dyness reserves the copyright of this document.
  • Page 6: Equipment Installation

    DANGER Please note that the battery should be installed with a minimum safe clearance from the surrounding equipment or battery. Please refer to the minimum clearance diagram below. Figure 2-1 Minimum clearance © Dyness reserves the copyright of this document.
  • Page 7 3. Confirm that the DC breaker is in the OFF position. Mechanical Installation DANGER The battery system is a high-voltage DC system. Ensure that installation area of STACK100 is stable and reliable. Please confirm that the battery system is switched off before connecting. Electric shock and damage to the inverter may be caused if the battery is connected directly without being switched off.
  • Page 8 Step 2: Place the Battery Module onto the base, ensuring that the locating pins of the Battery with the locating points on the base. Step 3: Install four M5*30 locking screws on the left and right sides. © Dyness reserves the copyright of this document.
  • Page 9 3.Hanging ears are installed on the left and right sides respectively and locked to the wall with expansion screws(M6x80). 4.Use two M5*30 screws to fix the left and right Hanging ears to the chassis respectively. © Dyness reserves the copyright of this document.
  • Page 10 • Use a multimeter to measure the output voltage on the positive and negative ports of the BDU. • The output voltage should conform to the Operating Voltage range Parameter of the © Dyness reserves the copyright of this document.
  • Page 11 Operating 448-584V 492-642V 537-700V 582-759V 627-818V 672-876V Voltage Table 2-1 Operating Voltage range 5. Turn the POWER ON knob to OFF, battery shutdown. 6. Switch the BDU DC BREAKER to OFF position. © Dyness reserves the copyright of this document.
  • Page 12 6 months. Maximum 12 STACK100clusters are allowed to be connected in parallel. Parallel wiring The general configuration diagram of the STACK100 in parallel connection is as under. Take three clusters for example: © Dyness reserves the copyright of this document.
  • Page 13 STACK100-QUICK-REFERENCE-GUIDE Step 4 Parallel system Figure 2-2 The general configuration diagram of the STACK100 © Dyness reserves the copyright of this document.
  • Page 14 Host Slave Last Slave Communication network cable connection between inverter and STACK100(Host): CAN/RS485 of the BDU of STACK100 to the communication port of the inverter. Host Connect to the inverter RJ45 CAN/RS485 communication port Attention The STACK100 in parallel must be of the same model and same capacity.
  • Page 15 Discover Your Nature Official Website Digital version access Dyness Digital Energy Technology Co., LTD. www.dyness.com...
