Dyness Battery + Solis Inverter quick installation guide
This is quick installation guide for Dyness Powerbox Pro + Solis S5/S6 Hybird inverter.
Please use this guide in conjunction with:
Dyness battery installation manual
inverter installation manual
Meter installation manual
If you have any questions, please contact Solis Service team:
Nick: 0498864577 / nick.wang@solisinverters.com
Luigi: 0493748994 / luigi@solisinverters.com
Battery installation video
AC couple Application
.
Advertisement
Related Manuals for Dyness Powerbox Pro
Summary of Contents for Dyness Powerbox Pro
- Page 1 Dyness Battery + Solis Inverter quick installation guide This is quick installation guide for Dyness Powerbox Pro + Solis S5/S6 Hybird inverter. Please use this guide in conjunction with: Dyness battery installation manual Battery installation video inverter installation manual AC couple Application...
- Page 2 Purchase list from OSW: 1 x box of Dyness Powerbox Pro 1 x box of Solis S5-EH1P(3-6)K-L 1 x ZJ BENY Battery DC Breaker 500V/125A 2 pole (BDW-125) (Optional) 1 x meter (SDM120CT) marked with ID 2 if 3rd party PV inverter is onsite Installation Tips->...

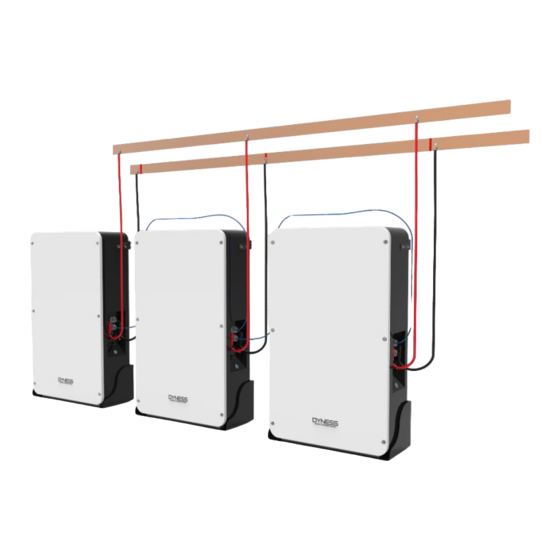

- Page 3 Installation Tips-> Dual Battery Connection ➢ Battery DC connection: External circuit breaker is required for each individual battery Additional Terminal block is recommended for combining the DC from two batteries before entering inverter. ➢ Battery communication connection: Battery to battery parallel communication cable: Please use normal Standard LAN communication cable between battery and battery.
- Page 4 ➢ meter connection -always use the meter that comes with the inverter at grid side to measure import/export power. meter is only required when 3 party inverter is onsite, please refer to “AC Couple Application” for more detail...
