Before cables are bundled, mark labels and stick the labels to cables wherever appropriate.

Cables should be neatly and properly bundled in the rack without twisting or bending, as shown in
4.

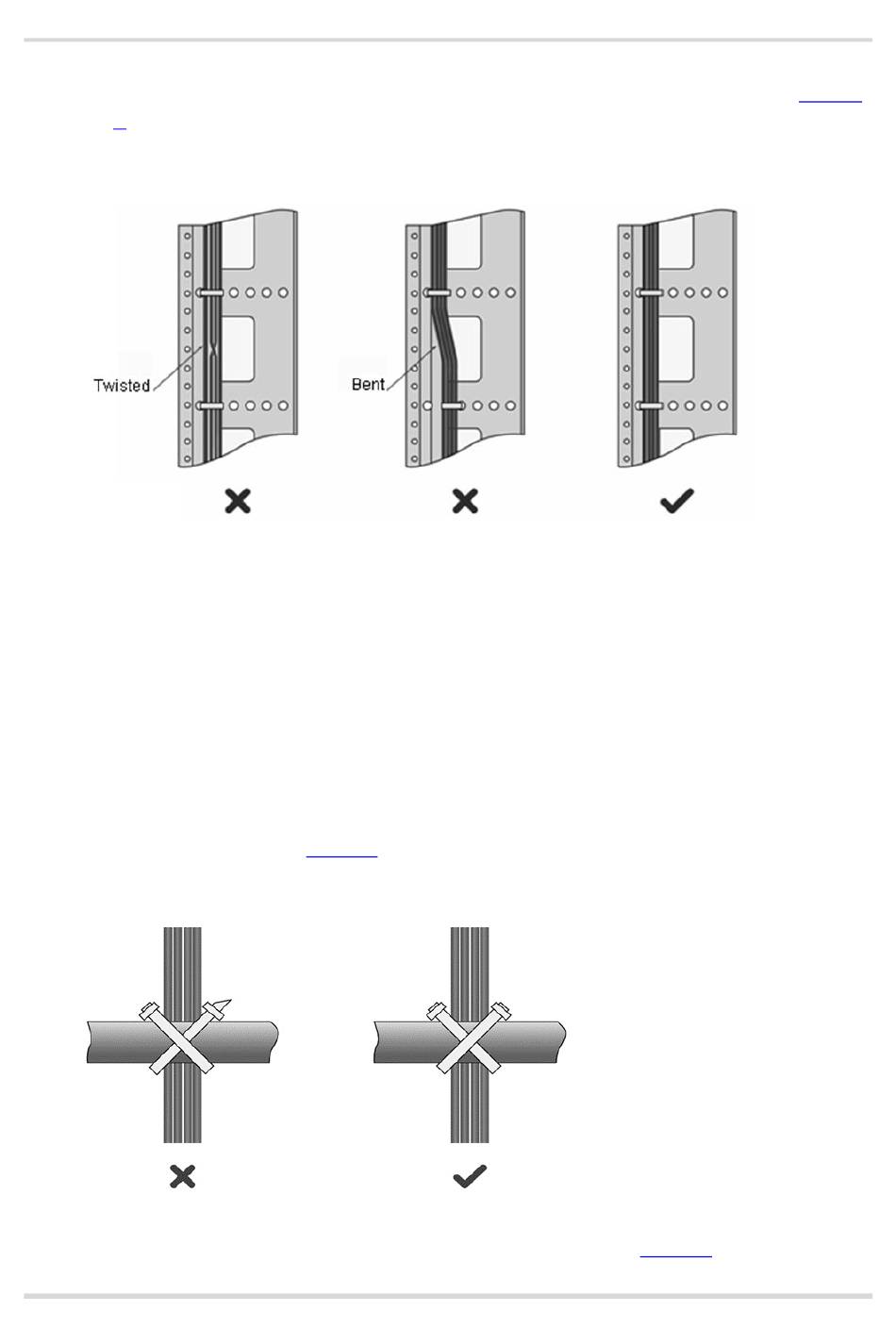

Figure 7-4 Bundling up Cables (1)

Cables of different types (such as power cords, signal cables, and grounding cables) should be separated in
cabling and bundling. Mixed bundling is disallowed. When they are close to each other, you are advised to
adopt crossover cabling. In the case of parallel cabling, maintain a minimum distance of 30 mm (1.18 in.)
between power cords and signal cables.

The cable management brackets and cabling troughs inside and outside the cabinet should be smooth
without sharp corners.

The metal hole traversed by cables should have a smooth and fully rounding surface or an insulated lining.

Use cable ties to bundle up cables properly. Do not connect two or more cable ties to bundle up cables.

After bundling up cables with cable ties, cut off the remaining part. The cut should be smooth and trim, without
sharp corners, as shown in
Figure 7-5 Bundling up Cables (2)

When cables need to be bent, you should first bundle them up, as shown in
Figure 7-5.
