SF 26PT • Setup Guide (Continued)

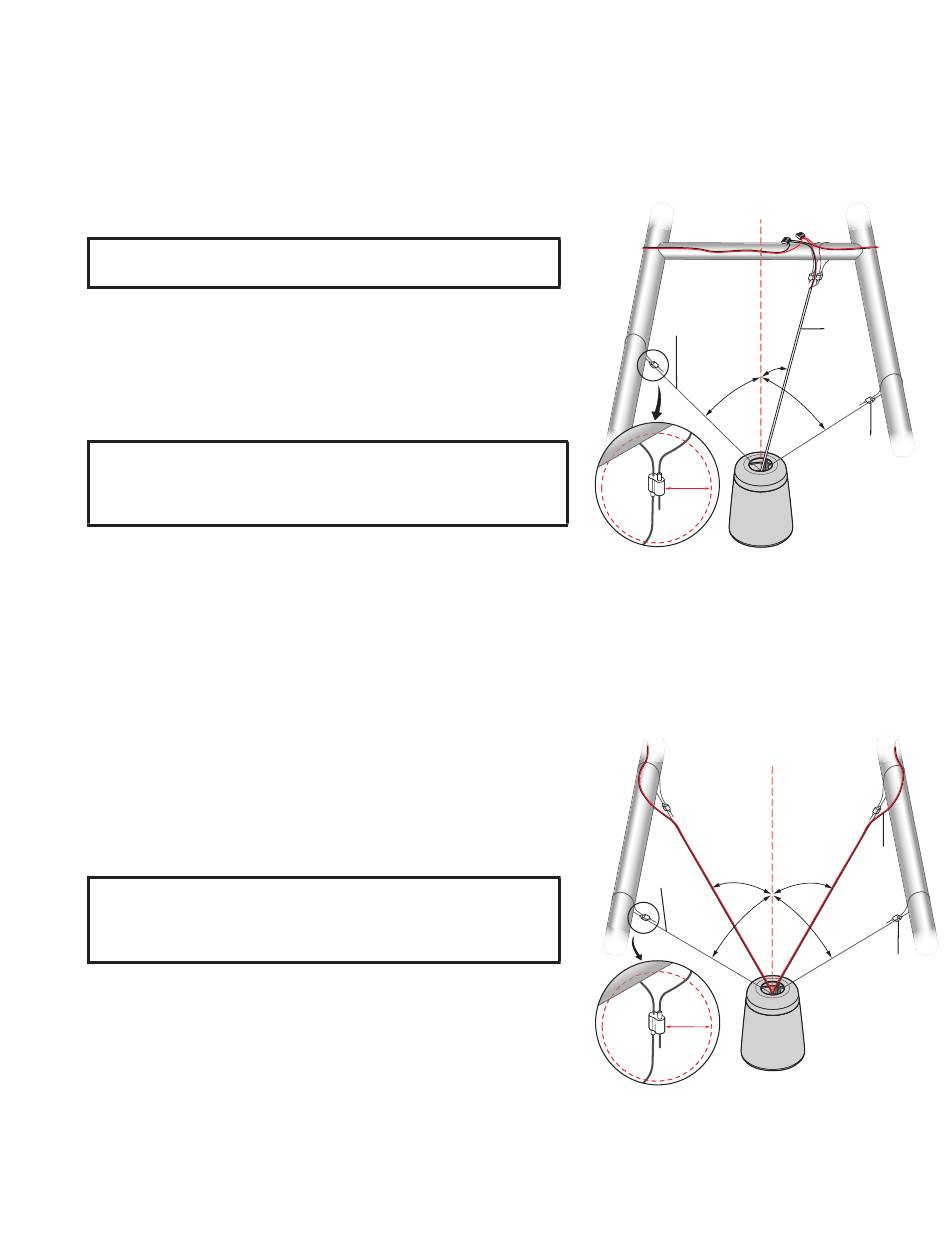

Optional 2-Cable Installation Kit
The optional Extron SMK A 2C 2-aircraft cable installation kit allows the SF
26PT speaker to be suspended from 3 overhead points such as a pipe or
eye bolt using the 2 included PCC-2 steel cables and the 2 additional cables
from the kit.
1.
Route the cut end of both PCC-2 steel cables to an overhead anchor
point using the cable locks to secure the cables in place.
1
NOTE:
The angle between those PCC-2 steel cables and the 0°
vertical position directly above the speaker is 45°.
2. Route the two cables from the kit to overhead mounting locations such
that angle between those cables
above the speaker is 45°.
3. The angle between each of the 3 cables and its adjacent cable is 120°.
4. Use cable locks to secure both cables from the kit to the mounting
locations .
3
NOTE:
In order to ensure that the cable lock is not unintentionally
unlocked, keep the area within 2 inches of all cable lock in
any direction free of any other objects. See the Warning at the
beginning of this guide.
5.
Connect the 4 swaged steel cable ends (2 from the PCC-2 cable and
2 from the kit) through the speaker cap and to the hook
Optional 4-Cable Installation Kit
The optional Extron SMK A 4C 4-aircraft cable installation kit allows the SF
26PT speaker to be suspended from 4 overhead points or 5 overhead points
such as a pipe or eye bolt (when also using the PCC-2 cable).
Four Mounting Points
1. Route the four cables from the kit to overhead mounting locations such
that the angle between each cable and the vertical position directly
above the speaker is 45°
2. The angle between each of the 4 cables and its adjacent cable is 90°.
3. Use cable locks to secure the 4 cables from the kit to the mounting
locations .
2
NOTE:
In order to ensure that all cable locks are not
unintentionally unlocked, keep the area within 2 inches of all
cable locks in any direction free of any other objects (see the
Warning on page 1).
4. Connect the 4 swaged steel cable ends from the kit through the speaker
cap and to the hook
6
and the 0° vertical position directly
2
.
1
3
.
5
0° Vertical
4 4 4
1 1 1
Steel
PCC-2
Cables (2)
45°
2 2 2
45°
45°
5 5 5
2" min.
Three Mounting Points
0° Vertical
Steel
45° 45°
Cables (4)
1 1 1
45° 45°
3 3 3
2" min.
Four Mounting Points
3 3 3
Cable Lock
Speaker
Wires (2)
2 2 2
Cable Lock
