activTek INDUCT 2000+ OZONE Manual page 11

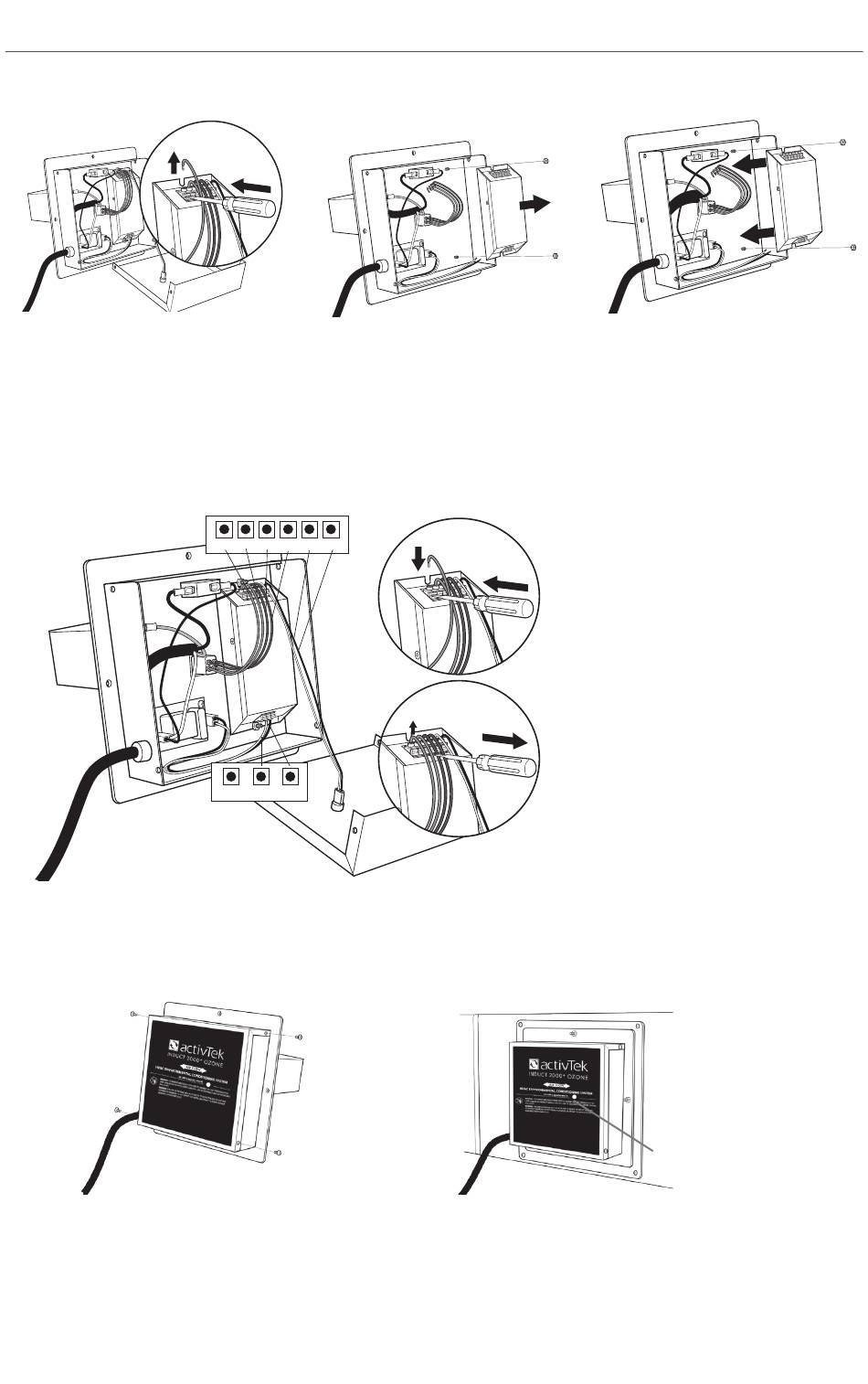

REPLACING THE BALLAST (CONTINUED)
3. Disconnect all ballast wiring by
pressing down on connector tabs
and pulling wire straight out.
6. To reconnect wiring, (A) press each tab on the ballast and insert wire.
(B) Release tab and gently pull wire to ensure it is properly locked into place.
7. Replace cover and secure with the
original four (4) screws.
4. Remove the two (2) nuts
securing ballast to the case.
Remove the ballast.
BLUE BLUE RED RED LED- LED+
GREEN WHITE BLACK
5. Place new ballast into the
A
UPPER (6 terminals)
• Black LED wire in LED+
• White LED wire in LED-
• 2 Blue wires in BLUE
• 2 Red wires in RED
B
LOWER (3 terminals)
• Black power wire in BLACK
• White power wire in WHITE
•
8. Re-install unit if removed from duct.
Reconnect power and check for
proper operation.
NOTE: UV Bulb Indicator should
be lit when in operation.
original location and secure
using the two nuts removed in
step 4.
GREEN is not used
UV Bulb
Indicator
