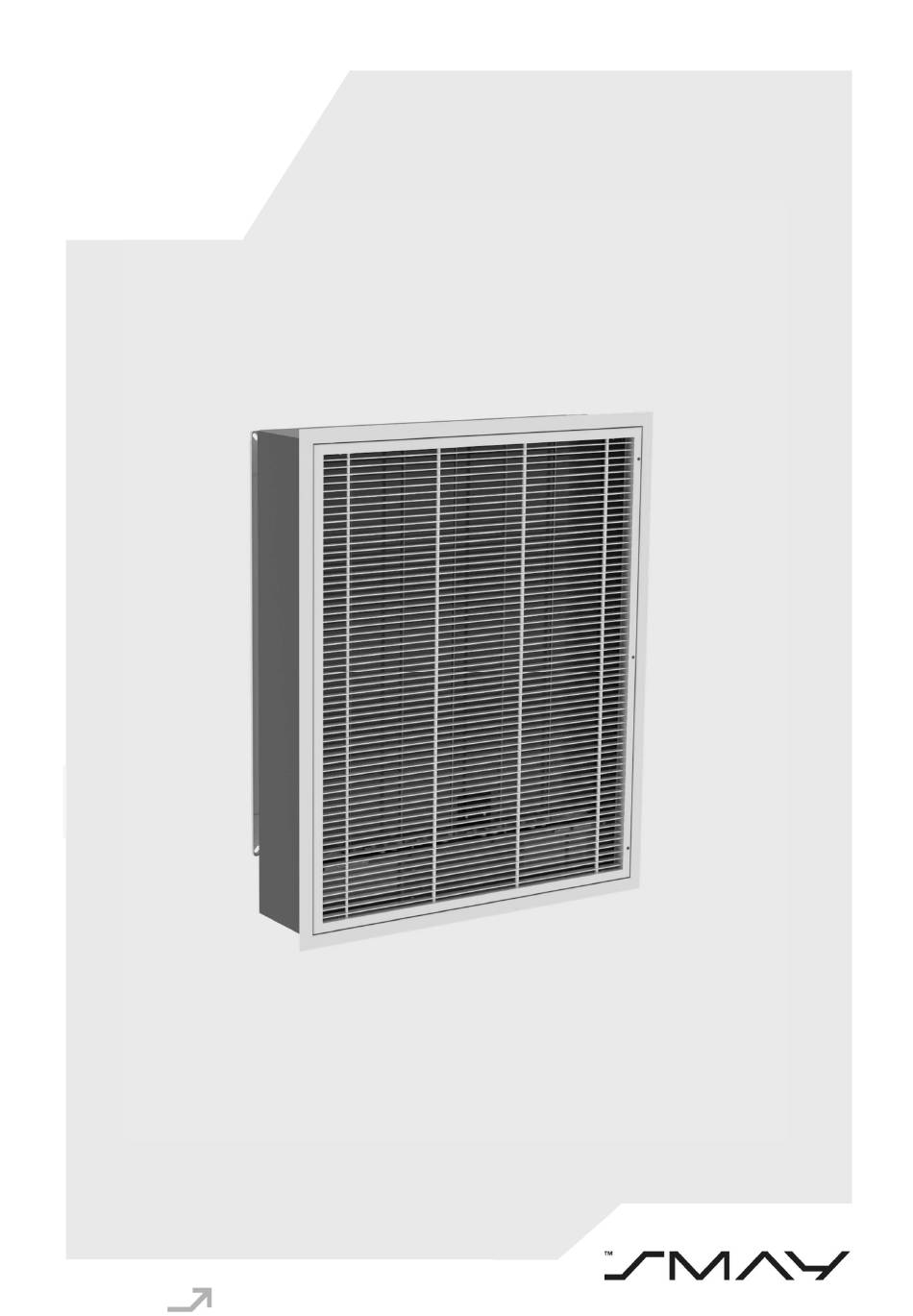

  • Page 1 WKS-P Rectangular smoke control damper Technical Documentation Strona 0 z 24 https: www.smay.eu...
  • Page 2 Technical documentation WKS-P 2434 SMAY Sp. z o.o. CSWU: 2434-CPR-0360 DWU: 035-CPR-2024 PN-EN 12101-8:2011 Smoke control dampers type: WKS-P Nominal activation conditions/sensitivity Automatic starting: Pass Closing/opening during the test at the right time Response time/Closure time: Automatic starting: Pass Reliability: 10 000 cycles, <120s.
  • Page 3: Table Of Contents

    Technical documentation WKS-P Version 6.3 SMAY reserves the right to make changes to this document. TABLE OF CONTENT INTRODUCTION ....................3 LEGAL REGULATIONS ..................3 INTENDED USE ....................3 TECHNICAL DESCRIPTION .................. 4 BELIMO ELECTRIC ACTUATORS USED IN WKS-P ............ 6 ACCESSORIES FOR WKS-P DAMPERS ..............
  • Page 4: Introduction

    – Part 2: Smoke control dampers, Part 10: Smoke control dampers.” The WKS-P smoke control dampers are classified as tightness class C (housing tightness) devices on the basis of tests carried out according to EN 1751 “Ventilation for buildings. Air terminal devices. Aerodynamic testing of dampers and valves.”...
  • Page 5: Technical Description

    The WKS-P damper is equipped with a drive mechanism that ensures the rotation of the blades in an opposing arrangement. The mechanism includes, among other components, fireproof gears, blades, and an electric actuator.
  • Page 6 Table 2. Weight of WKS-P dampers Table 4. Range of Actuators Used for WKS-P Dampers Width, C [mm] Width, C [mm] 18,3 23,9 31,6 31,2 42,9 20,7 26,7 34,6 35,0 46,6 23,1 29,5 37,5 38,8 50,3 25,5 32,2 40,5 42,6...
  • Page 7: Belimo Electric Actuators Used In Wks-P

    Ø16mm gland in the flange. Figure 2. Wiring of actuator cables for WKS-P Damper If necessary, it is also permissible to swap the covers of the actuator housing (full and with holes for cables) and lead the cables out from the other side of the damper.
  • Page 8 Technical documentation WKS-P Electric actuator wiring diagram BEN230, BEE230, BE230-12 Electric actuator connection diagram BEN24, BEE24, BE24-12 Electric actuator electrical connection diagram BEN24-ST, BEE24-ST, BE24-12-ST Version 6.30 Page 7 z 29 Date of editing: 13.11.2024r.
  • Page 9 Technical documentation WKS-P Technical data: BEN230 BEN24 (-ST) Technical data: BEE230 BEE24 (-ST) Version 6.30 Page 8 z 29 Date of editing: 13.11.2024r.
  • Page 10 Technical documentation WKS-P Technical data: BE230-12 BE24-12 (-ST) Version 6.30 Page 9 z 29 Date of editing: 13.11.2024r.
  • Page 11: Accessories For Wks-P Dampers

    ACCESSORIES FOR WKS-P DAMPERS From the mounting flange side, the WKS-P smoke control damper should be equipped with a dedicated aluminum louvre grille type ALWT-P, painted in any RAL color (default RAL9010). It is installed inside the damper flange and equipped with hinges to allow easy access to the interior of the damper for servicing purposes.
  • Page 12: Conditions Of Transport And Storage

    200mm around the damper. The use of WKS-P dampers in walls with a different fire resistance is permissible, however, it should be noted that the fire resistance rating EI of the entire WKS-P damper assembly is determined by the lowest-rated component in that assembly.
  • Page 13: Instalation Technology - Flexible Wall

    Technical documentation WKS-P 8.1. INSTALATION TECHNOLOGY – FLEXIBLE WALL Build a wall with a rectangular opening using C-profiles, or create an opening in the wall and place the missing C- profiles around the opening. The distance between vertical profiles should be at least C+100mm, and the distance between horizontal profiles should be at least D+255mm (where C and D are the nominal dimensions of the damper).
  • Page 14 Screw the damper frame to the wall profiles through all Ø9.5mm holes located around the mounting frame using self-drilling screws Ø5.5mm with a length matched to the thickness of the frame with boards. Figure 7.Method of installing WKS-P smoke control dampers in flexible wall constructions. Version 6.30 Page 13 z 29 Date of editing: 13.11.2024r.
  • Page 15: Instalation Technology - Rigid Wall

    Technical documentation WKS-P 8.2. INSTALATION TECHNOLOGY – RIGID WALL 8.2.1. INSTALLATION TECHNOLOGY – RIGID WALL WITH A THICK OF 125÷200 MM Build a wall with a rectangular opening or create an opening in the wall. The width of the opening should be at least C+100mm, and the height of the opening should be at least D+255mm (where C and D are the nominal dimensions of the damper).
  • Page 16: Installation Technology - Rigid Wall Construction With Athickness Of 200 Mm And Greater

    Screw the damper frame to the wall profiles through all Ø9.5mm holes located around the mounting frame using Ø6mm anchors with a length matched to the thickness of the frame with boards. Figure 10. Method of installing WKS-P dampers in rigid wall constructions with a thickness less than 200 mm. 8.2.2.
  • Page 17 Screw the damper frame to the wall through all Ø9.5mm holes located around the mounting frame using Ø6mm anchors suitable for the type of wall. Figure 12. Method of installing WKS-P dampers in rigid wall constructions with a thickness greater than 200 mm. Version 6.30 Page 16 z 29 Date of editing: 13.11.2024r.
  • Page 18 Technical documentation WKS-P Figure 13. Possible examples of fitting the opening for a gap up to 50 mm. Figure 14. Possible examples of fitting the opening for a various gap width. Version 6.30 Page 17 z 29 Date of editing: 13.11.2024r.
  • Page 19: Installation Technology - Mkw-S Mesh Cover

    Technical documentation WKS-P 8.3. INSTALLATION TECHNOLOGY – MKW-S MESH COVER Before installing the cover, you should adhere a self-adhesive ventilation seal on the inner surface of the cover along the bend, around the entire perimeter. Mount the cover to the wall using mounting dowels suitable for the type of wall, with the recommended dimensions of Ø5x40mm, through all the holes in the cover.
  • Page 20 Technical documentation WKS-P Close the grille and screw in the securing screws; Figure 17. Location of securing screws. Figure 18. Installation method of the ALWT-P grille Version 6.30 Page 19 z 29 Date of editing: 13.11.2024r.
  • Page 21: Installation Technology - Ductwork Connection

    START-UP PROTOCOL) within 30 days from the commissioning date (date indicated in the Installation and Commissioning Protocol for the WKS-P damper). Failure to comply with this formality will result in the loss of warranty for the device. Below is an example of a smoke/fire damper installation and start-up protocol (universal for all flaps from the SMAY offer).
  • Page 22 Technical documentation WKS-P Version 6.30 Page 21 z 29 Date of editing: 13.11.2024r.
  • Page 23 Technical documentation WKS-P Version 6.30 Page 22 z 29 Date of editing: 13.11.2024r.
  • Page 24: Periodic Maintenance And Servicing Rules

    SMAY devices should be carried out by the SMAY Manufacturer's Service or technical staff of SMAY trading partners appropriate for a given country. Damage to the WKS-P damper resulting from failure to comply with the guidelines contained in the documentation will not be covered by warranty repairs.
  • Page 25 Technical documentation WKS-P Version 6.30 Page 24 z 29 Date of editing: 13.11.2024r.
  • Page 26 Technical documentation WKS-P Version 6.30 Page 25 z 29 Date of editing: 13.11.2024r.
  • Page 27 Technical documentation WKS-P Version 6.30 Page 26 z 29 Date of editing: 13.11.2024r.
  • Page 28 Technical documentation WKS-P Version 6.30 Page 27 z 29 Date of editing: 13.11.2024r.
  • Page 29: Classification Of Dampers For Repair

    The manufacturer provides a warranty for the delivered products, on the terms set forth in the Agreement or the General Warranty Conditions of Smay, Sp. z o.o. The warranty does not cover defects resulting from improper storage, transportation, installation, and commissioning, operation, periodic maintenance, service, especially mechanical damage and damage to anti-corrosive coatings.
  • Page 30 The templates of forms attached to this Technical Documentation (related to installation, commissioning, inspections) are the intellectual property of Smay sp. z o.o. Copying, duplicating, and using them for purposes other than those specified in this Technical and Operating Documentation is prohibited. To maintain the warranty, it is required to fill them out and deliver them to SMAY sp.
