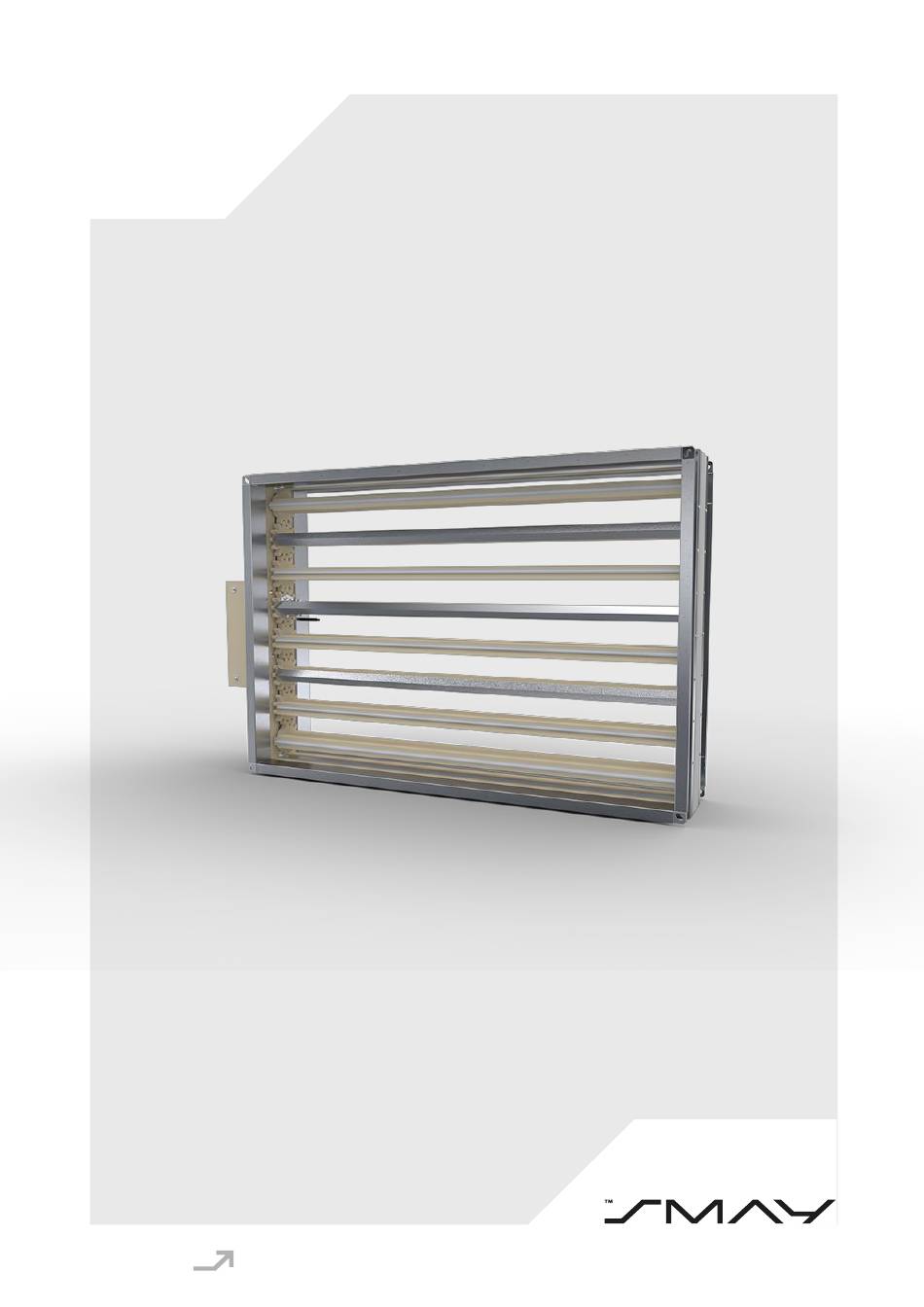

  • Page 1 WKP-O Technical Fire damper - rectangular Documentation https: www.smay.eu...
  • Page 2 Technical documentation WKP-O 2434 SMAY Sp. z o.o. 2434-CPR-0010 EN 15650:2010 Fire damper type: WKP-O Nominal activation conditions/sensitivity: Pass Closing/opening during the test at the right time Response time/Closure time: Pass Reliability: 300 cycles – pass Fire resistance: Fire integrity - E...

  • Page 3: Table Of Contents

    Technical documentation WKP-O Version 6.00 SMAY reserves the right to make changes to this document. TABLE OF CONTENT INTRODUCTION ....................3 LEGAL REGULATIONS ..................3 INTENDED USE ....................3 TECHNICAL DESCRIPTION .................. 4 BELIMO ELECTRIC ACTUATORS USED IN WKP-O ........... 7 ACCESSORIES FOR WKP DAMPERS ..............

  • Page 4: Introduction

    (impregnated fireproof boards, anti-corrosive steel elements). WKP-O fire dampers may also be installed in building partition of a smaller fire resistance. In this case, the damper`s fire resistance is equal to the building partition fire resistance, considering the smoke leakage criterion.

  • Page 5: Technical Description

    B x H connection duct is 12 m/s. The WKP-O damper is equipped with an electric spring return actuator of BF or BFN series by BELIMO and a BAT or BAE thermal fuse (72 ° C) (optionally 95 ° C), which is the damper's drive system with AC 230 V or AC / DC 24V The range of dampers covers the following dimensions: a clear damper width from 200 to 1200 mm (10 mm intervals) and clear damper height from 200 to 800 mm (100 mm intervals).
  • Page 6 Technical documentation WKP-O Figure 1. WKP-O-E-K damper Version 6.00 Page 5 z 27 Date of editing: 16.09.2022...
  • Page 7 Technical documentation WKP-O Figure 2. WKP-O-E-T damper Version 6.00 Page 6 z 27 Date of editing: 16.09.2022...

  • Page 8: Belimo Electric Actuators Used In Wkp-O

    Technical documentation WKP-O BELIMO ELECTRIC ACTUATORS USED IN WKP-O Spring-return 90° actuator BFN series, combined with thermoelectric tripping device BAT: BFN230-T, ▪ BFN24-T, ▪ where: ST - connection plug. Spring-return 90° actuator BF series, combined with thermoelectric tripping device BAE: BF230-TN, ▪...
  • Page 9 Technical documentation WKP-O Wiring diagram BFN230-T Wiring diagram BFN24-T Version 6.00 Page 8 z 27 Date of editing: 16.09.2022...
  • Page 10 Technical documentation WKP-O Wiring diagram BF230-T Wiring diagram BF24-T Version 6.00 Page 9 z 27 Date of editing: 16.09.2022...
  • Page 11 Technical documentation WKP-O Technical data: BFN230-T Version 6.00 Page 10 z 27 Date of editing: 16.09.2022...
  • Page 12 Technical documentation WKP-O Technical data: BFN24-T Version 6.00 Page 11 z 27 Date of editing: 16.09.2022...
  • Page 13 Technical documentation WKP-O Technical data: BF230-T Version 6.00 Page 12 z 27 Date of editing: 16.09.2022...
  • Page 14 Technical documentation WKP-O Technical data: BF24-T Version 6.00 Page 13 z 27 Date of editing: 16.09.2022...

  • Page 15: Accessories For Wkp Dampers

    WKP-O ACCESSORIES FOR WKP DAMPERS WKP-O dampers can be used as transfer dampers with use of KST type grilles with horizontal or vertical lamellas or with use of MKW flat or convex honeycomb mesh cover. Both products are used to prevent the damper from colliding with unwanted objects, covering sensitive moving parts.

  • Page 16: Conditions Of Transport And Storage

    Before installing the fire dampers, make sure that there are no damage, during transport or storage, that could block the baffle. Check that the baffle can be opened and closed (full opening and closing position). To open fire dampers WKP-O use the actuator key.

  • Page 17: Installation Technology - Rigid Wall

    Rigid wall Figure 5. Dimensions of the installation opening of the WKP-O dampers in rigid wall with a horizontal and with vertical axis of rotation of the baffle, with planned cut for actuator housing. The C dimension is given in the table.
  • Page 18 Technical documentation WKP-O Figure 6. Installing method of WKP-O fire dampers in rigid wall. Figure 7. Installing method of WKP-O fire dampers in rigid wall Version 6.00 Page 17 z 27 Date of editing: 16.09.2022...
  • Page 19 Technical documentation WKP-O Figure 8. Installing method of WKP-O fire dampers in rigid wall with KST grille in rigid wall structure. Version 6.00 Page 18 z 27 Date of editing: 16.09.2022...

  • Page 20: Promaduct Channel

    60 mm width. Connection of damper and the wall, and damper with the band must be made by K84 glue. The sides of the duct and the band must be connected by using 4,2x90 – 4,8x120 screws. Figure 9. Installing method of WKP-O fire dampers with PROMAT boards duct. Version 6.00...

  • Page 21: Installation Technology - Structures Thicker Than 125 Mm

    INSTALLATION TECHNOLOGY – STRUCTURES THICKER THAN 125 mm In rigid walls, with thickness less than or equal to 125 mm, WKP-O fire dampers are installed in this way that an axis of the fire baffle matches the axis of the wall, and ensure a concentricity of fire damper and installation opening.

  • Page 22: Installation Technology - Light Wall

    Technical documentation WKP-O 8.3. INSTALLATION TECHNOLOGY – LIGHT WALL Make an opening in the wall with the dimensions 230 [mm] (acceptable 210 ÷ 250 [mm]) greater than the dimension B and 100 [mm] (acceptable 80 ÷ 120 [mm]) greater than the heigh H, That is B+230 i H+100.
  • Page 23 Technical documentation WKP-O Figure 11. Installation method of fire dampers WKP-O in standard wall with 125 mm thick Version 6.00 Page 22 z 27 Date of editing: 16.09.2022...
  • Page 24 Technical documentation WKP-O Figure 12. Installation method of fire dampers WKP-O in standard wall Version 6.00 Page 23 z 27 Date of editing: 16.09.2022...

  • Page 25: Installation Technology - Mkw Honeycomb Mesh Cover

    Technical documentation WKP-O 8.4. INSTALLATION TECHNOLOGY – MKW HONEYCOMB MESH COVER Before installing honeycomb mesh cover, glue self-adhesive ceramic gasket 5x10 on inner surface of mesh cover along the bend edge around all perimeter. Honeycomb mesh cover install to the wall with use metal pins for gas-concrete 6x32 and with use 5x40 screws.

  • Page 26: Principles Of Maintenance

    After installation of the WKP-O fire damper, when running the system, it is recommended to carry out regular checks and record them as shown in table below. It is recommended to repeat checks at intervals or at least once every 6 months.
  • Page 27 Technical documentation WKP-O In order to check the proper functioning of fire damper, in particular: Make a visual inspection of the interior of fire damper, determine the condition of the baffle and seal, whether there are no damage or dirt that could block the fire baffle during closing.

  • Page 28: Terms Of Warranty

    Technical documentation WKP-O TERMS OF WARRANTY The manufacturer provides guarantee for the delivered product for a period of 24 moths from the date of sale or another period agreed in the contract. There is a possibility of extending the guarantee, provided that a separate Maintenance and Service Agreement is signed between the manufacturer and the owner/manager of the facility.
