SMAY WKP-O Technical Documentation Manual

Hide thumbs Also See for WKP-O:
Table of Contents

Advertisement

Quick Links

Download this manual
WKP-O
a
Fire damper -
rectangular
https:
//
www.smay.eu
Technical
Documentation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WKP-O and is the answer not in the manual?

Questions and answers

Related Manuals for SMAY WKP-O

Summary of Contents for SMAY WKP-O

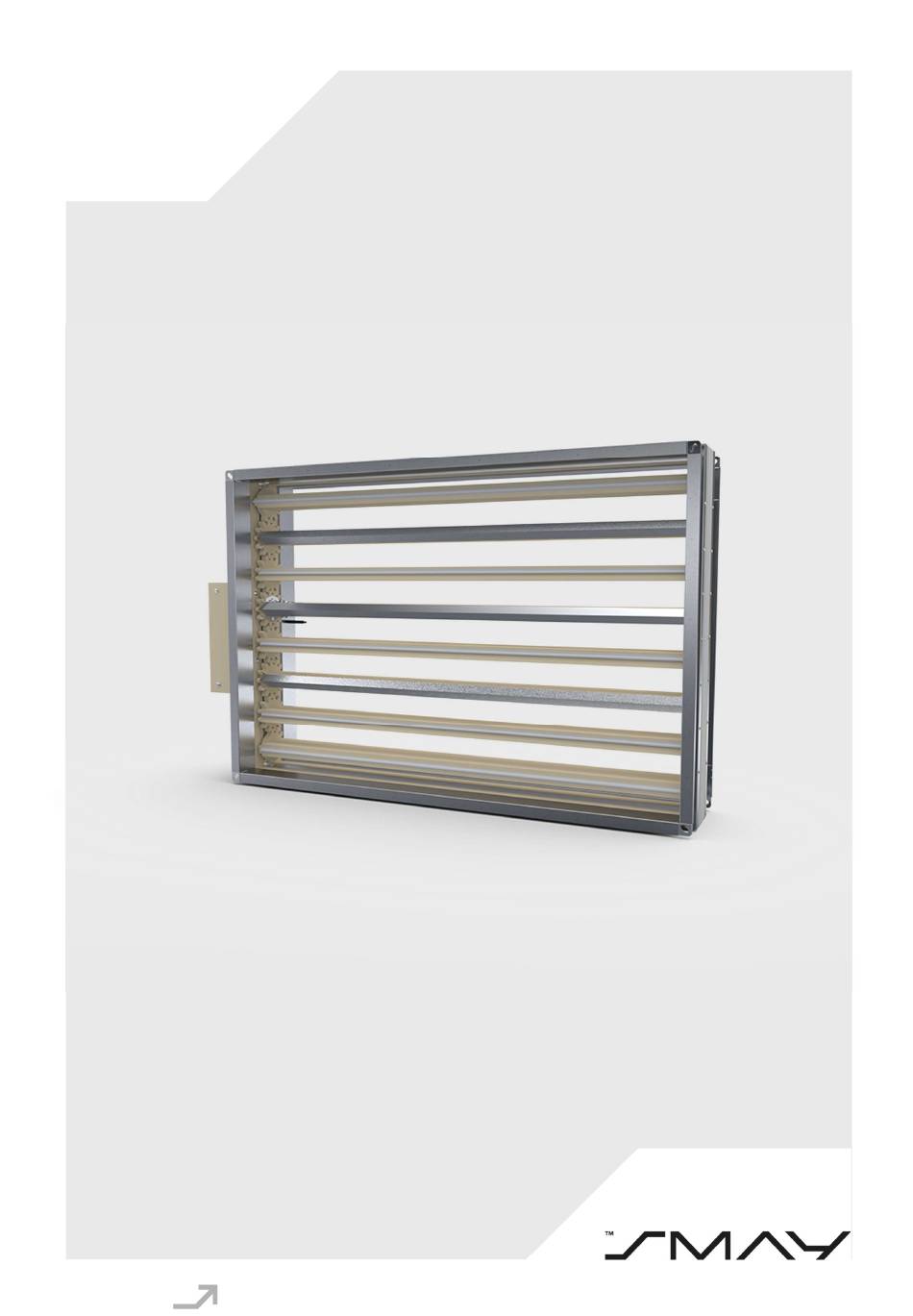

  • Page 1 WKP-O Technical Fire damper - rectangular Documentation https: www.smay.eu...
  • Page 2 Technical documentation WKP-O 2434 SMAY Sp. z o.o. 2434-CPR-0283 EN 15650:2010 Fire damper type: WKP-O Nominal activation conditions/sensitivity: Pass Closing/opening during the test at the right time Response time/Closure time: Pass Reliability: 300 cycles – pass Fire resistance: Fire integrity - E...

  • Page 3: Table Of Contents

    Technical documentation WKP-O Version 6.25 SMAY reserves the right to make changes to this document. TABLE OF CONTENT INTRODUCTION ....................3 LEGAL REGULATIONS ..................3 INTENDED USE ....................3 TECHNICAL DESCRIPTION .................. 4 BELIMO ELECTRIC ACTUATORS USED IN WKP-O ........... 7 ACCESSORIES FOR WKP DAMPERS ..............

  • Page 4: Introduction

    The effectiveness of the dampers is confirmed by tests according to PN-EN 1366-2 “Fire resistance tests for service installations – Part 2: Fire dampers.” The WKP-O fire damper is classified as tightness class C (housing tightness) on the basis of tests carried out according to PN-EN 1751 “Ventilation for buildings. Air terminal devices. Aerodynamic testing of dampers and valves.”...

  • Page 5: Technical Description

    B x H connection duct is 12 m/s. The WKP-O damper is equipped with an electric spring return actuator of BF or BFN series by BELIMO and a BAT or BAE thermal fuse (72 ° C) (optionally 95 ° C), which is the damper's drive system with AC 230 V or AC / DC 24V The range of dampers covers the following dimensions: a clear damper width from 200 to 1200 mm (10 mm intervals) and clear damper height from 200 to 800 mm (100 mm intervals).
  • Page 6 Technical documentation WKP-O Figure 1. WKP-O-E-K damper Version 6.25 Page 5 z 34 Date of editing: 27.06.2024...
  • Page 7 Technical documentation WKP-O Figure 2. WKP-O-E-T damper Version 6.25 Page 6 z 34 Date of editing: 27.06.2024...

  • Page 8: Belimo Electric Actuators Used In Wkp-O

    Technical documentation WKP-O BELIMO ELECTRIC ACTUATORS USED IN WKP-O Spring-return 90° actuator BFN series, combined with thermoelectric tripping device BAT: BFN230-T,  BFN24-T,  where: ST - connection plug. Spring-return 90° actuator BF series, combined with thermoelectric tripping device BAE: BF230-TN, ...
  • Page 9 Technical documentation WKP-O Wiring diagram BFN230-T Wiring diagram BFN24-T Version 6.25 Page 8 z 34 Date of editing: 27.06.2024...
  • Page 10 Technical documentation WKP-O Wiring diagram BF230-T Wiring diagram BF24-T Version 6.25 Page 9 z 34 Date of editing: 27.06.2024...
  • Page 11 Technical documentation WKP-O Technical data: BFN230-T Version 6.25 Page 10 z 34 Date of editing: 27.06.2024...
  • Page 12 Technical documentation WKP-O Technical data: BFN24-T Version 6.25 Page 11 z 34 Date of editing: 27.06.2024...
  • Page 13 Technical documentation WKP-O Technical data: BF230-T Version 6.25 Page 12 z 34 Date of editing: 27.06.2024...
  • Page 14 Technical documentation WKP-O Technical data: BF24-T Version 6.25 Page 13 z 34 Date of editing: 27.06.2024...

  • Page 15: Accessories For Wkp Dampers

    WKP-O ACCESSORIES FOR WKP DAMPERS WKP-O dampers can be used as transfer dampers with use of KST type grilles with horizontal or vertical lamellas or with use of MKW flat or convex honeycomb mesh cover. Both products are used to prevent the damper from colliding with unwanted objects, covering sensitive moving parts.

  • Page 16: Conditions Of Transport And Storage

    Before installing the fire dampers, make sure that there are no damage, during transport or storage, that could block the baffle. Check that the baffle can be opened and closed (full opening and closing position). To open fire dampers WKP-O use the actuator key.

  • Page 17: Installation Technology - Rigid Wall

    Figure 5. Dimensions of the installation opening of the WKP-O dampers in rigid wall with a horizontal and with vertical axis of rotation of the baffle, with planned cut for actuator housing. The C dimension is given in the table.
  • Page 18 Technical documentation WKP-O Figure 6. Installing method of WKP-O fire dampers in rigid wall. Figure 7. Installing method of WKP-O fire dampers in rigid wall Version 6.25 Page 17 z 34 Date of editing: 27.06.2024...
  • Page 19 Technical documentation WKP-O Figure 8. Installing method of WKP-O fire dampers in rigid wall with KST grille in rigid wall structure. Version 6.25 Page 18 z 34 Date of editing: 27.06.2024...

  • Page 20: Promaduct Channel

    60 mm width. Connection of damper and the wall, and damper with the band must be made by K84 glue. The sides of the duct and the band must be connected by using 4,2x90 – 4,8x120 screws. Figure 9. Installing method of WKP-O fire dampers with PROMAT boards duct. Version 6.25...

  • Page 21: Installation Technology - Structures Thicker Than 125 Mm

    INSTALLATION TECHNOLOGY – STRUCTURES THICKER THAN 125 mm In rigid walls, with thickness less than or equal to 125 mm, WKP-O fire dampers are installed in this way that an axis of the fire baffle matches the axis of the wall, and ensure a concentricity of fire damper and installation opening.

  • Page 22: Installation Technology - Light Wall

    After mounting the collar, remove the supports or suspensions, check the fire damper correct operation and leave it in open position. Figure 9. Installation method of fire dampers WKP-O in standard wall with 125 mm thick Version 6.25 Page 21 z 34 Date of editing: 27.06.2024...
  • Page 23 Technical documentation WKP-O Figure 102. Installation method of fire dampers WKP-O in standard wall Version 6.25 Page 22 z 34 Date of editing: 27.06.2024...

  • Page 24: Installation Technology - Mkw Honeycomb Mesh Cover And Kst Grille

    Technical documentation WKP-O 8.4. INSTALLATION TECHNOLOGY – MKW HONEYCOMB MESH COVER AND KST GRILLE Before installing honeycomb mesh cover/grille, glue self-adhesive ceramic gasket 5x10 on inner surface of mesh cover/grille along the bend edge around all perimeter. Mount the honeycomb mesh cover to the wall using metal pins for gas-concrete and 5x40 screws.
  • Page 25 Technical documentation WKP-O Figure 15. Installation method of KST grille Version 6.25 Page 24 z 34 Date of editing: 27.06.2024...

  • Page 26: Commissioning

    START-UP PROTOCOL) within 30 days from the commissioning date (date indicated in the Installation and Commissioning Protocol for the WKP-O damper). Failure to comply with this formality will result in the loss of warranty for the device. Installation and Commissioning Protocol - Smoke control dampers / Fire dampers (universal for all dampers in the SMAY offer) is outlined below: Version 6.25...

  • Page 27: Fire Dampers

    Technical documentation WKP-O INSTALLATION AND COMMISSIONING PROTOCOL - SMOKE CONTROL DAMPERS / FIRE DAMPERS Data of the company performing the installation and commissioning (seal) Device manufacturer OBJECT / INSTALLATION LOCATION INSTALLATION AND COMMISSIONING EXECUTION Object Name: KTM-(O) KTS-O KWP-O ……………………………………………………….…..…….………………….………………………...
  • Page 28 Installation and Commissioning Contractor License Number Signature Works Manager:: (Legible - First and Last Name) (issued by Smay) Optionally provided data - to be filled in by individuals holding a Certificate or Statement number. Version 6.25 Page 27 z 34 Date of editing:...

  • Page 29: Periodic Maintenance And Servicing Rules

    SMAY Manufacturer's Service or an Authorized SMAY Service/SMAY Service Partner. Damage to the WKP-O damper resulting from failure to comply with the guidelines contained in the documentation will not be covered by warranty repairs.
  • Page 30 Technical documentation WKP-O ANNUAL INSPECTION PROTOCOL - SMOKE CONTROL DAMPERS / FIRE DAMPERS Company performing the inspection (seal) Device manufacturer OBJECT / INSTALLATION LOCATION INSPECTION EXECUTION Date ……………………………………………… of execution: Object Name: ………………….……………………..…………..…... ……………………………………………………….…….…..…….…… KTM-(O) KTS-O KWP-O Subject …………………………………………………………….…..…….…… KWP-P...
  • Page 31 The next inspection should be performed before ………………………..………..………….. 20…………. r. (Month) Confirmation by the Client: Inspection contractor License number Signature (issued by Smay company) Please mark the correct answer Version 6.25 Page 30 z 34 Date of editing: 27.06.2024...
  • Page 32 Technical documentation WKP-O Version 6.25 Page 31 z 34 Date of editing: 27.06.2024...
  • Page 33 Technical documentation WKP-O Version 6.25 Page 32 z 34 Date of editing: 27.06.2024...

  • Page 34: Classification Of Dampers For Repair

    The manufacturer provides a warranty for the delivered products, on the terms set forth in the Agreement or the General Warranty Conditions of Smay, Sp. z o.o. The warranty does not cover defects resulting from improper storage, transportation, installation, and commissioning, operation, periodic maintenance, service, especially mechanical damage and damage to anti-corrosive coatings.
  • Page 35 The templates of forms attached to this Technical Documentation (related to installation, commissioning, inspections) are the intellectual property of Smay sp. z o.o. Copying, duplicating, and using them for purposes other than those specified in this Technical and Operating Documentation is prohibited. To maintain the warranty, it is required to fill them out and deliver them to SMAY sp.
