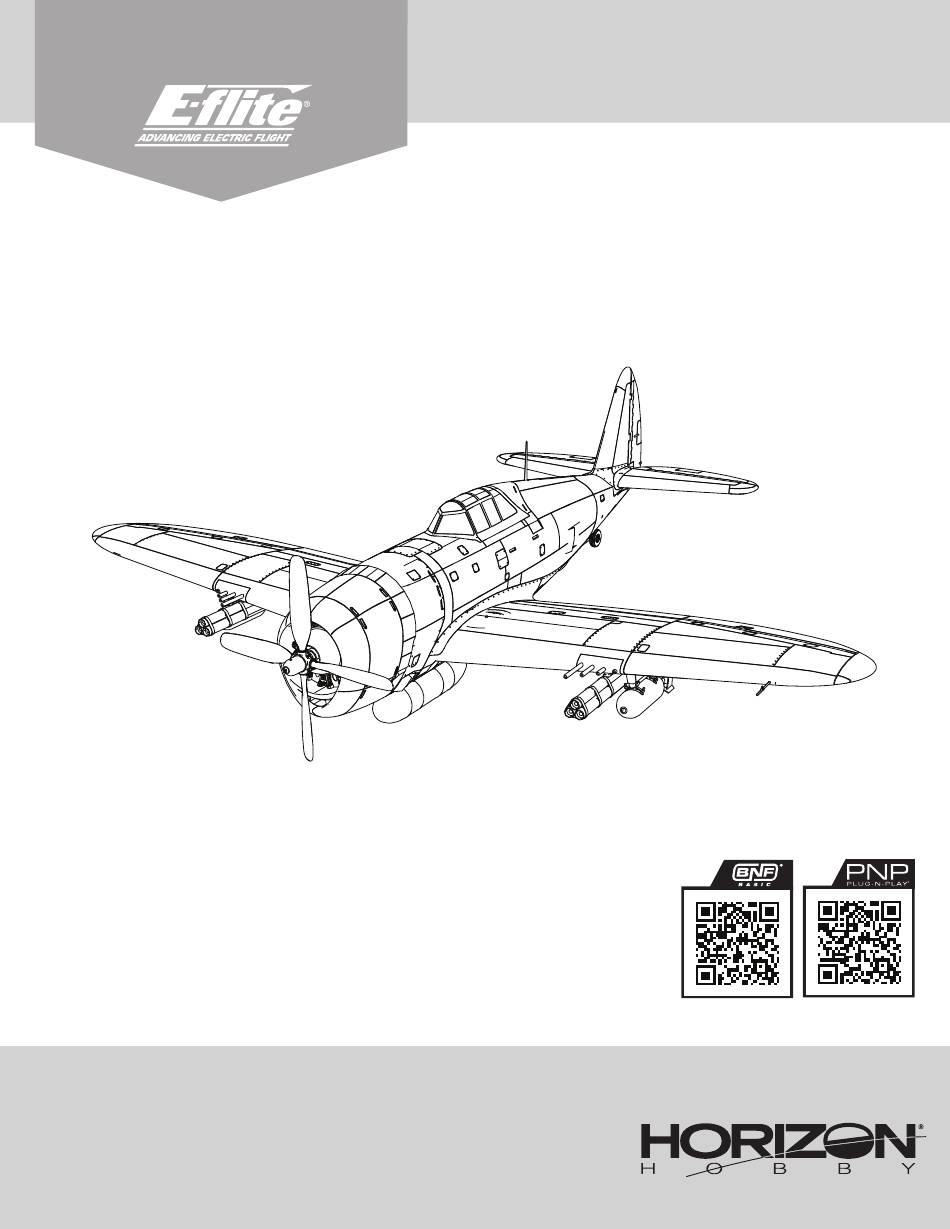

P-47 Razorback 1.2m
Scan the QR code and select the Manuals and Support quick links from the
Instruction Manual
product page for the most up-to-date manual information.
Bedienungsanleitung
Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks
Manuel d'utilisation
Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
Manuale di Istruzioni
Scannez le code QR et sélectionnez les liens rapides Manuals and Support sur la
page du produit pour obtenir les informations les plus récentes sur le manuel.
Scannerizzare il codice QR e selezionare i Link veloci Manuali e Supporto dalla
EFL08450
EFL08475
pagina del prodotto per le informazioni manuali più aggiornate.
475220
Created 03/23
www.modellmarkt24.ch

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-flite P-47 Razorback 1.2m and is the answer not in the manual?

Questions and answers

Related Manuals for Horizon Hobby E-flite P-47 Razorback 1.2m

Summary of Contents for Horizon Hobby E-flite P-47 Razorback 1.2m

  • Page 1 P-47 Razorback 1.2m Scan the QR code and select the Manuals and Support quick links from the Instruction Manual product page for the most up-to-date manual information. Bedienungsanleitung Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks Manuel d’utilisation Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
  • Page 2 This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance.

  • Page 3: Table Of Contents

    Included / Recommended Equipment Specifications 47.25 in. (1200 mm) Motor: 880Kv 15 Outrunner Motor, 14 Pole (EFL8463) Included Included ESC: Avian 70-Amp Smart Lite Brushless ESC; 3S-6S, IC3 Installed Installed (SPMXAE70B) Servos: A330 9g Sub-Micro servo: 140mm Lead (SPMSA330) Aileron: (2) Installed Installed Rudder: (1) Elevator: (1)

  • Page 4: Model Assembly

    Model Assembly Horizontal Stabilizer Installation 1. Slide the horizontal stabilizer tube (A) into the hole in the rear of the fuselage. 2. Install the 2 piece (left and right) horizontal stabilizer as shown. Ensure the control horn faces down. 3. Secure the two horizontal stabilizer pieces in place using the 2 included M2mm x 10mm countersunk self-tapping screws (B).
  • Page 5 Wing Installation 1. Remove the battery hatch by pulling up on each side of the back edges. 2. Guide the Flaps, Retracts and Aileron servo connectors (A) through the hole (B) located in the bottom of the fuselage as shown. Tip: If needed, use hemostats or pliers to pull the servo connectors into the fuselage.
  • Page 6 Optional Drop Tank, Rocket Tubes and Bomb Installation 1. Clip the bombs (A) and center drop tank (B) to the brackets. 2. Slide the Rocket Tubes (C) into the rails on each wing. See the Adjusting the Center of Gravity instructions for more information. www.modellmarkt24.ch P47 Razorback 1.2m...

  • Page 7: Transmitter Setup

    Transmitter Setup WARNING: Enable the throttle cut feature. Always engage throttle cut NX Series Transmitter Setup before approaching the aircraft. 1. Power ON your transmitter, click on scroll wheel, roll to System Setup and click the scroll wheel. Select YES. WARNING: Never assign Aux 2 to SAFE Select during transmitter setup with any model transmitter.

  • Page 8: Transmitter Setup Continued

    Transmitter Setup Continued DX Series Transmitter Setup 11. Go to D/R (Dual Rate) and Expo; Channel: Rudder Set Switch: Switch G Set Switch Positions O and 1: Rate 100%, Expo 10% Set Switch Positions 2: Rate 70%, Expo 5% 12. Go to Flap System; Set Switch: Switch D Set Switch Positions O: Flap 100% Set Switch Positions 1: Flap 0%...

  • Page 9: Pnp Receiver Selection And Installation

    PNP Receiver Selection and Installation The recommended receiver for this aircraft is the Spektrum AR631. If you choose to install a different receiver, ensure that it is at least a 6-channel full range receiver. AR631 Port Refer to the manual of your chosen receiver for correct installation and operation Assignments instructions.

  • Page 10: Battery Installation And Esc Arming

    Battery Installation and ESC Arming Battery Selection We recommend the 4S 2200mAh 30C Smart LiPo Battery. Refer to the Optional Parts List for other recommended batteries. If using a battery other than those listed, the battery should be within the range of capacity, dimensions and weight of the Spektrum Li-Po battery packs to fit in the fuselage.

  • Page 11: General Binding Tips And Failsafe

    General Binding Tips and Failsafe • The included receiver has been specifically programmed for operation of this • Once bound, the receiver will retain its bind settings for that transmitter until you aircraft. Refer to the receiver manual for correct setup if the receiver is replaced. re-bind.

  • Page 12: Safe ® Select Switch Designation Bnf

    ® SAFE Select Switch Designation BNF Stick Inputs Assigning a Switch 1. Power on the transmitter. Once SAFE Select is enabled, you can choose to fly in SAFE mode full-time, or assign a switch. Any switch on any channel between 5 and 9 can be used on your 2.

  • Page 13: Control Direction Test

    Control Direction Test Switch on the transmitter and connect the battery. Use the transmitter to operate Transmitter Command Control SurfaceResponse the aileron, elevator and rudder controls. View the aircraft from the rear when checking the control directions. The BNF Basic version of this model has a built in aileron to rudder mix, when the ailerons are deflected the rudder will move.

  • Page 14: As3X Response Test

    AS3X Response Test This test ensures that the AS3X ® control system is functioning properly. Assemble Aircraft movement AS3X Reaction the aircraft and bind your transmitter to the receiver before performing this test. 1. Raise the throttle just above 25%, then lower the throttle to activate AS3X. CAUTION: Keep all body parts, hair and loose clothing away from a moving propeller, as these items could become entangled.

  • Page 15: Control Surface Centering And Adjusting A Clevis

    Control Surface Centering and Adjusting a Clevis IMPORTANT: Perform the Control Direction Test before performing control surface centering. While SAFE is inactive, mechanically center the control surfaces. IMPORTANT: Correct operation of the SAFE system requires sub-trim and trim at 0. After binding a transmitter to the receiver, set the trims and sub-trims to 0, ensure the servo arms are in the correct positions, then adjust the linkages to center the control surfaces.

  • Page 16: Center Of Gravity (Cg)

    Center of Gravity (CG) The CG location is measured from the leading edge of the wing at the root. This CG location has been determined with the recommended Li-Po battery (SPMX22004S30) installed all the way forward in the battery compartment. Check 65mm +/-3 the CG with the model inverted, with the landing gear retracted.

  • Page 17: Post Flight

    Post Flight 1. Disconnect the flight battery from the ESC (Required for Safety and 5. Repair or replace all damaged parts. battery life). 6. Store the flight battery apart from the aircraft and monitor the battery charge. 2. Power OFF the transmitter. 7.

  • Page 18: Troubleshooting Guide

    Troubleshooting Guide Problem Possible Cause Solution Throttle not at idle and/or throttle trim too high Reset controls with throttle stick and throttle trim at lowest setting Aircraft will not respond Throttle servo travel is lower than 100% Make sure throttle servo travel is 100% or greater to throttle but responds to Throttle channel is reversed Reverse throttle channel on transmitter...

  • Page 19: Replacement Parts

    Replacement Parts Recommended Items Part # Description Part # Description SPMR6775 NX6 6-Ch Transmitter Only EFL8451 Fuselage W / Hatch: P-47 SPMX22004S30 2200mAh 4S 14.8V Smart 30C; IC3 EFL8452 Wing W / Screws: P-47 SPMXC2080 S1100 G2 100W Smart Charger EFL8453 Horizontal Stab: P-47 EFL8454...

  • Page 20: Ama National Model Aircraft Safety Code

    (iii) modification of or to any part process found on our website or call Horizon to obtain a Return Merchandise of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized Authorization (RMA) number. Pack the Product securely using a shipping carton.

  • Page 21: Contact Information

    It should be deposited at an appropriate facility to enable recovery and recycling. EFL P47 Razorback 1.2M BNF Basic (EFL08450); Hereby, Horizon Hobby, LLC EU Manufacturer of Record: declares that the device is in compliance with the following: EU Radio Equipment...
  • Page 22 ©2023 Horizon Hobby, LLC. E-flite, Plug-N-Play, Bind-N-Fly, BNF, the BNF logo, DSM, DSM2, DSMX, Spektrum AirWare, EC3, IC3, AS3X, SAFE, the SAFE logo, ModelMatch, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. All other trademarks, service marks and logos are property of their respective owners.
