EGR ROLLTRAC RT040036E Installation Instructions Manual page 7

15
16
5

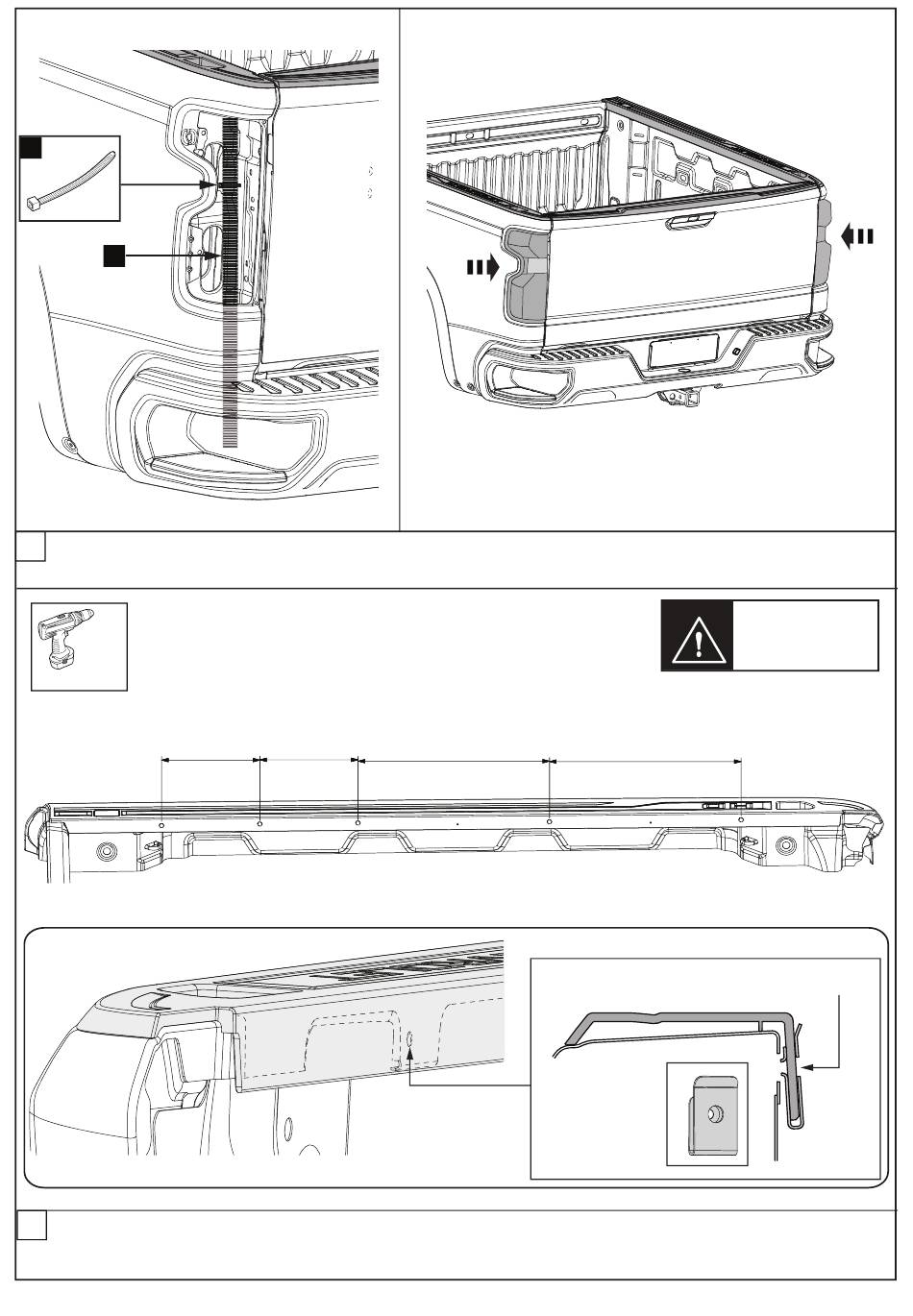

Secure the drain tube (16) to the sheet metal inside the tail light cavity using one cable tie (15) as shown.
Refit the tail lights. Repeat for RHS.
Ø6mm (1/4")
261mm
LHS
6
Locate the 5 holes in the sheet metal. Slide the drill jig over the 5 locations using above dimentions, locating the
extruded hole centrally into existing hole. Drill a pilot hole using a Ø6mm (1/4") drill bit through the plastic only.
Remove the jig.
RT0090
LHS & RHS
261mm 508mm
Page 7 of 35
ATTENTION
508mm
6mm (1/4") DRILL BIT WITH 10mm STOPPER
SECTION VIEW
USE DRILL JIG
Issue 3: 04/09/24
