EGR ROLLTRAC RT040036E Installation Instructions Manual page 25

4mm(5/32'')
LHS
2
4
11
3
1
7

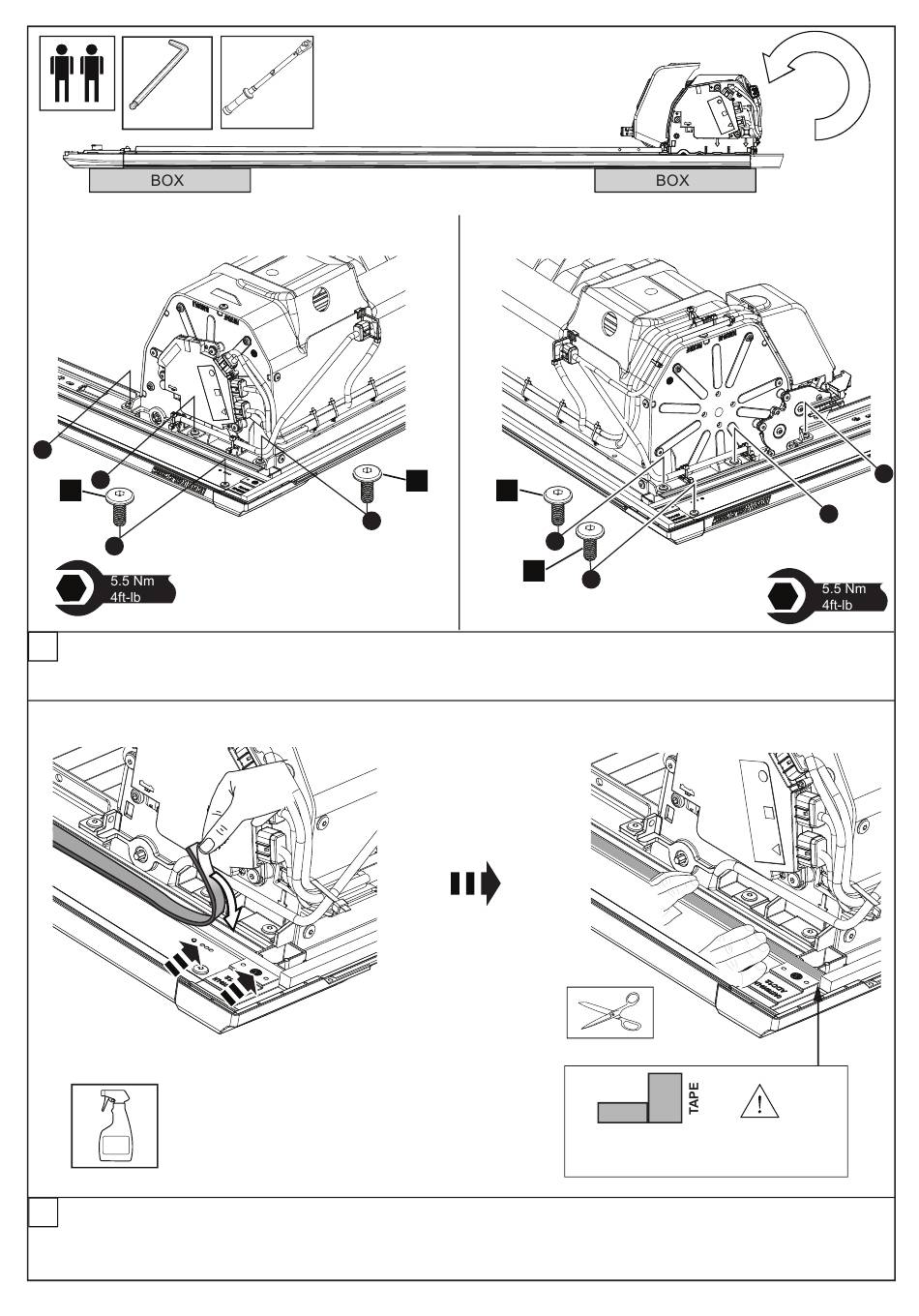

Carefully flip the assembly over onto a flat protected surface which will not damage the cover or scratch the paint
work. Install the 2 screws (11) on each side through the canister and side rail into front cover.
Torque all screws in order shown to 5.5Nm (4ft-lb).
CLEAN WITH
ALCOHOL FIRST
8
Clean powder coated surface first with alcohol spray. Trim foam tape length to ensure the end will butt against front
cover seal - avoiding any gap. Peel the protective liner from the foam tape, adhere to the channel in the side rail,
Press down firmly to secure. Repeat on RH side rail.
RT0090
5.5Nm
(4ft-lb)
SIDE VIEW
11
1
LHS SHOWN - RHS IS A MIRROR IMAGE
11
1
11
3
TAPES MUST CONTACT
Page 25 of 35
1
TAPE
Issue 3: 04/09/24
RHS
2
4
