Generac Power Systems GP Series Owner's Manual page 9

Hour Meter
See 2-4. The Hour Meter tracks hours
Figure
of operation for scheduled maintenance.
• The SVC display will illuminate one hour
before and one hour after each 200 hour
interval providing a two hour window to per-
form service.
When the hour meter is in flash alert mode,
the maintenance message will alternate with
elapsed time in hours and tenths. The hours
will flash four times, then alternate with the
maintenance message four times until the
meter automatically resets.
• 200 hours - SVC — Change oil, oil filter, air
filter, fuel filter, and spark plug. Clean spark
arrestor screen. (Every 200 hrs)
NOTE: The hour glass icon will flash when the
engine is running. This signifies the meter is
recording hours of operation.
0000.0

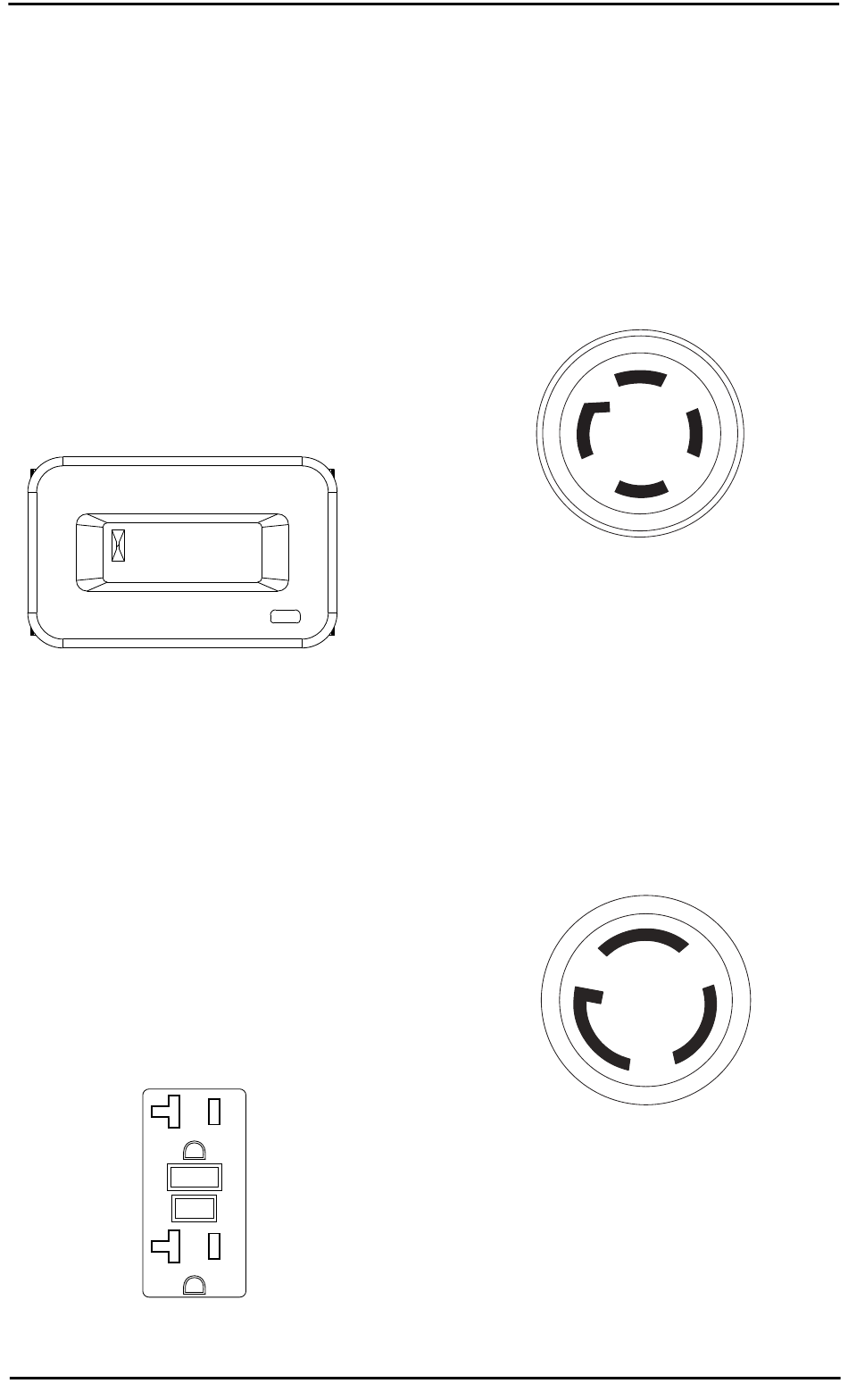

Figure 2-4. Hour Meter
Connection Plugs
120 VAC, 20 Amp, GFCI Duplex
Receptacle
See 2-5. The 120 Volt outlet is overload
Figure
protected by a 20 Amp push-to-reset circuit
breaker. Each receptacle will power 120 Volt
AC, single phase, 60 Hz electrical loads
requiring up to 2400 watts (2.4 kW) or 20
Amps of current. Use only high quality, well-
insulated, 3-wire grounded cord sets rated for
125 Volts at 20 Amps (or greater). It also pro-
vides protection with a Ground Fault Circuit
Interrupter with a press to TEST and RESET
button.
Figure 2-5. 120 VAC, 20 Amp, GFCI Duplex
Receptacle NEMA 5-20R
Owner's Manual for Portable Generator
120/240 VAC, 30 Amp Receptacle
See
Figure
this receptacle (rotate to lock/unlock). Connect
a suitable 4-wire grounded cord set to plug
and desired load. The cord set should be
rated 250 Volts AC at 30 Amps (or greater).
Use this receptacle to operate 120 Volt AC, 60
Hz, single phase loads requiring up to 3600
watts (3.6 kW) of power at 30 Amps or 240
Volt AC, 60 Hz, single phase loads requiring
up to 7200 watts (7.2 kW) of power at 30
Amps. The outlet is protected by a 30 Amp 2-
pole circuit breaker.
Figure 2-6. 120/240 VAC, 30 Amp Receptacle
120 VAC, 30 Amp Receptacle
See
Figure
000205
this receptacle (rotate to lock/unlock). Connect
a suitable 3-wire cord set to the plug and to
desired load. The cord set should be rated for
125 Volts AC at 30 Amps (or greater).
Use this receptacle to operate 120 Volt AC,
60Hz, single phase loads requiring up to 3600
watts (3.6kW) of power at 30 Amps. The outlet
is protected by a 30 Amp push-to-reset circuit
breaker.
Figure 2-7. 120 VAC, 30 Amp Receptacle
120/240 VAC, 50 Amp receptacle
See Figure
this receptacle. Connect a 4-wire cord set
rated for 250 Volts AC at 50 Amps to plug.
000203
2-6. Use a NEMA L14-30 plug with
NEMA L14-30R
2-7. Use a NEMA L5-30R plug with
NEMA L5-30R
2-8. Use a NEMA 14-50 plug with
000204
000844
