Generac Power Systems GP Series Owner's Manual page 13

3. Call Generac Customer Service 1-888-
GENERAC (1-888-436-3722) with the unit
model and serial number for any missing
carton contents.
4. Record model, serial number, and date of
purchase on front cover of this manual.
Assembly
WARNING
Consult Manual. Read and understand manual
completely before using product. Failure to
completely understand manual and product
could result in death or serious injury.
Call Generac Customer Service at 1-888-
GENERAC (1-888-436-3722) for any assem-
bly issues or concerns. Please have model
and serial number available.
The following tools are required to install the
accessory kit.
• 13mm wrenches (2)
• Plyers
NOTE: The wheels are not intended for over-
the-road use.
See Figure 2-12.
Install wheels and axle as follows:
1. Insert axle (C) through axle bracket holes
on frame.
L
P
A
Owner's Manual for Portable Generator
(000100a)
Q
H
E
M
J

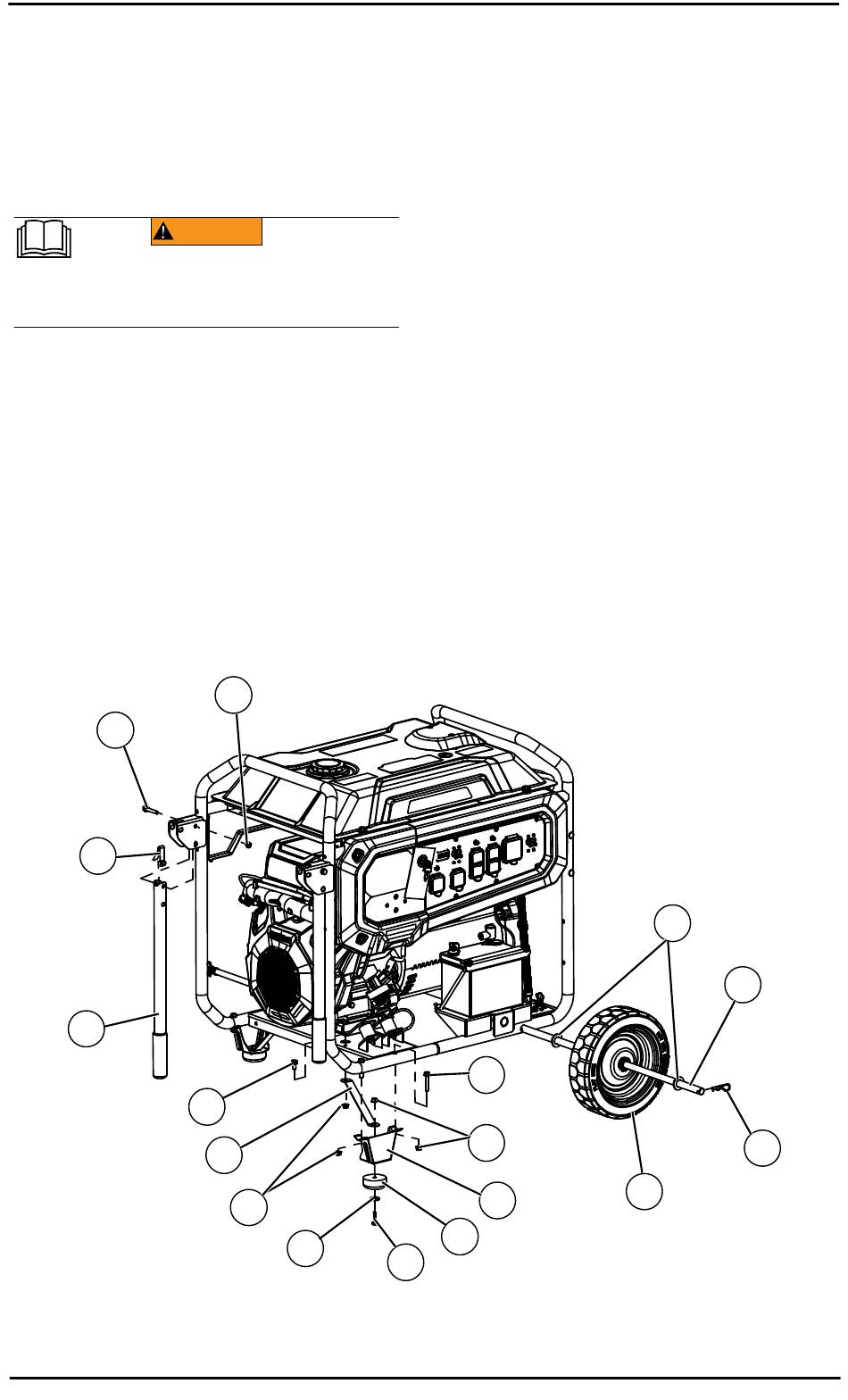

Figure 2-12. Wheel and Handle Assembly
2. Slide washer (G) on both ends of axle.
3. Place wheel (B) onto axle (C). Slide on
washer (G) and secure with a cotter pin
(F). Use plyers to secure cotter pins.
Assemble vibration mount (N) to foot bracket
(D) as follows:
1. Install washer (J), vibe mount (N), foot
bracket (D) and support bracket (E) onto
bolt (K).
2. Install nut (M) and finger-tighten.
Assemble feet to frame as follows:
1. Align foot bracket assembly with the pre-
drilled holes under the frame.
2. Secure with bolt (L), nut (M) and 13mm
wrenches.
3. Attach support bracket (E) to frame with
bolt (H) and nut (M). Tighten nuts on sup-
port bracket (E) with 13mm wrenches.
Install handle as follows:
1. Install snap button (P) into handle tube (A)
so the button snaps into the hole in the
tube.
2. Install handle tube (A) to handle bracket
on frame. The snap button should snap
into the lower hole of the bracket. Secure
with M8 x 45 bolt (L) through the upper
middle hole and secure with nylok nut (Q).
L
M
D
N
K
G
C
F
B
013993
11
