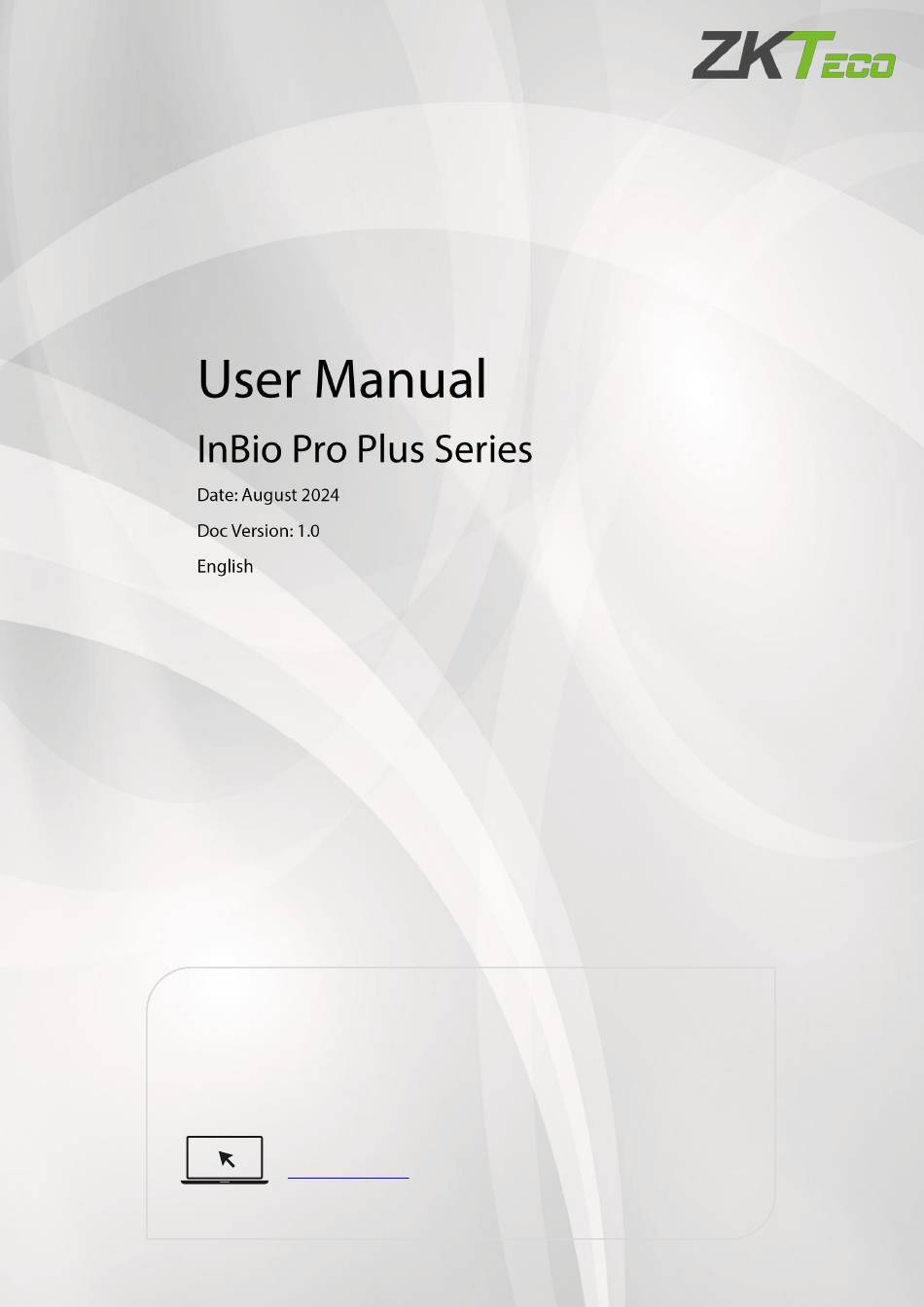

ZKTeco InBio Pro Plus Series User Manual

Hide thumbs Also See for InBio Pro Plus Series:

Quick start manual (22 pages)

page of 80

/ 80
Bookmarks

Quick Links

Download this manual

Product Name and Model Number

Thank you for choosing our product. Please read the instructions carefully

before operation. Follow these instructions to ensure that the product is

functioning properly. The images shown in this manual are for illustrative

purposes only.

| 1

P a g e

For further details, please visit our Company 's website

www.zkteco.com.

User Manual

Need help?

Do you have a question about the InBio Pro Plus Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ZKTeco InBio Pro Plus Series

Page 1 Follow these instructions to ensure that the product is functioning properly. The images shown in this manual are for illustrative purposes only. For further details, please visit our Company ’s website www.zkteco.com. P a g e Copyright©2020 ZKTECO CO., LTD. All rights reserved.
Page 2 ZKTeco supplied equipment vests in and is the property of ZKTeco. The contents hereof should not be used or shared by the receiver with any third party without express written permission of ZKTeco.
Page 3 InBio Pro Plus Series User Manual relating to the use of the information contained in or referenced by this manual, even if ZKTeco has been advised of the possibility of such damages. This manual and the information contained therein may include technical, other inaccuracies or typographical errors.
Page 4 User Manual About the Company ZKTeco is one of the world’s largest manufacturer of RFID and Biometric (Fingerprint, Facial, Finger-vein) readers. Product offerings include Access Control readers and panels, Near & Far-range Facial Recognition Cameras, Elevator/floor access controllers, Turnstiles, License Plate Recognition (LPR) gate controllers and Consumer products including battery-operated fingerprint and face template-reader Door Locks.
Page 5 The general information which helps in performing the operations faster. The information which is significant. Care taken to avoid danger or mistakes. The statement or event that warns of something or that serves as a cautionary example. P a g e Copyright©2020 ZKTECO CO., LTD. All rights reserved.
Page 6 4.2.7 RS485 R EADER IRING ........................35 4.2.8 PC485 E XTENSION OMMUNICATION IRING 4.2.9 D ...............................37 ENSORS IRING 4.2.10 L ................................37 ELAY IRING KF1000 P ..................40 ONNECTION WITH ERIES EADERS P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 7 ......................68 ET THE OMMUNICATION DDRESS ........................68 EVICE ON THE OFTWARE ......................69 ERSONNEL ON THE OFTWARE ★ ..........................70 OBILE REDENTIAL PRIVACY POLICY ..........................76 ECO-FRIENDLY OPERATION .........................78 P a g e Copyright©2020 ZKTECO CO., LTD. All rights reserved.
Page 8 Power supply: Operate the equipment with only the type of power supply indicated on the label. Contact the technician for any uncertainty about the type of power supply. P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 9 To protect the access control system against the self-induced electromotive force generated by an electronic lock at the instant of switching off/on, it is necessary to connect a diode in parallel (please P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 10 It is recommended to use the power supply delivered with the system as the control panel power supply. In a place with substantial magnetic interference, galvanized steel pipes or shielded cables are recommended, and proper grounding is required. P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 11 Wiegand interface (W26/ W34/ W66). To enhance data security, the InBio Pro Plus Series employs the AES 256-bit algorithm encryption to protect data storage. Also, it utilizes the AES 128-bit algorithm encryption for communication with readers over RS-485 (ZKTeco's RS-485 or OSDP).
Page 12 Three unique InBio Pro Plus Models Available InBio Pro Plus series comprises three models to suit various project needs. InBio Pro Plus consists of 1-door, 2-door, and 4-door models, that can be mixed and matched in an optimized system architecture and to reduce the cost of unused capacity architecture.
Page 13 Exit Button*1, Alarm*1 Exit Button*2, Alarm*2 Exit Button*4, Alarm*4 Webserver, Upto 14-digit User ID, Access Levels, Access Groups, Holidays, Standard Functions Anti-passback,Anti-tailgating, Linkage, Global Linkage, Multiple Verification Methods | 12 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 14 151 x 94 x 65 mm(L*W*H)] size:151 x 94 x 65 mm(L*W*H)] Gross Weight:3.57Kg Gross Weight:3.57Kg Gross Weight:3.77Kg Certifications ISO14001, ISO9001, CE, FCC, RoHS Factory ID AC02-C11H-U10 AC02-C12H-U10 AC02-C14H-U10 | 13 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 19 CARD indicator (yellow): indicates input of Wiegand signal if it is lit.  Indicator Diagram: Figure 2-5 Indicators in the InBio460 Pro Plus | 18 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 20 Figure 3-1 Installation the metal enclosure on the wall Note: The metal enclosure is equipped with an tamper alarm switch. When it is working normally, please keep the enclosure closed. | 19 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 21 Engage the hooks on the top of the controller with the DIN rail and firmly press the controller onto the rail until it locks into place, as depicted in Figure 3-3 below. Figure 3-3 Mount the controller to the DIN rail adapter | 20 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 22 The access control wires must be separated according to heavy and light current; the control  panel wires, electronic lock wires, and exit button wires must run through their casing pipes, respectively. | 21 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 23 PC, access control management personnel can remotely perform various management functions, like adding/deleting a user, viewing event records, opening/closing doors, and monitoring the status of each door in real-time. | 22 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 24 UPS at least, and access control locks are powered externally to guarantee the access control management system can still work normally during power failure. | 23 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 25 InBio Pro Plus Series User Manual Terminal and Wiring Description Terminal Description 4.1.1 InBio160 Pro Plus Figure 4-1 InBio160 Pro Plus terminal description | 24 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 28 Exit button Control lock relay Door sensor Extension input Extension output    TCP/IP RS485 extension    communication PC485 Customization Customization Customization communication | 27 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 29 InBio Pro Plus Series User Manual Wiring Description 4.2.1 Power Wiring Without Backup Battery  With Backup Battery  Figure 4-4 Power supply wiring diagram | 28 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 30 The InBio460 Pro Plus provides four readers, which can be connected in the two-door two-way or four-door one-way mode. The Wiegand interfaces provided by the InBio Pro Plus series can be connected to different types of readers. If your card reader does not use the voltage of DC 12V, an external power supply is needed.
Page 32 (such as light switches and computers). It is recommended to use two-core wires with a gauge over 0.3mm as the connection wire between an exit switch and the Control panel. Figure 4-9 Exit button supply wiring diagram | 31 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 33 The tamper switch for the ProID100 reader is on the back case of the unit. The KF1000 Pro series reader's tamper switch is located on the bottom of the unit. And when the screws on the bottom of | 32 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 35 The buzzer rings once. verified Successfully verified lights up Verification Voice prompt: Failed The indicator (red) lights The buzzer sounds twice failure to verify up briefly twice. fast. | 34 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 36 4.2.8 PC485 Extension Communication Wiring The InBio Pro Plus series can be connected to the EX0808 expansion board via PC485. Note: PC software communication is a customized feature and not supported by default, please contact your dealer if you need it.
Page 37 If the cable length is more than 200 meters, the switch 6 should be ON for noise reduction on long RS485 cables. The detailed settings of the DIP switches are shown in the table 4-1 below. Table 4-1 - DIP Switch Setting for RS485/OSDP Communication | 36 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 38 In general, the default connection mode of the door lock is "Dry Mode". Dry mode supports separate power supply for the door lock using an external independent power supply. Wet mode supports the door lock sharing power with the controller. | 37 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 39 Figure 4-14 Schematic diagram for switching between wet and dry modes Controller not sharing power with the lock (Dry Connect)  Figure 4-15 Schematic diagram of the controller not sharing power with the lock | 38 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 40 The access controller comes standard with a 12V/3A power supply, and this power supply only takes into account the power consumption of the controller itself, the output power | 39 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 41 4.3.1 KF1000 Pro Series Reader Wiring The KF1000 Pro Series acts as a 485 reader and communicates with the InBio Pro Plus Series controller via RS-485. Note: Separate power supply for the reader is required. The wiring diagram is shown below.
Page 42 Identifying Mode in Webserver. Click Confirm to save. 2）Then click Advanced Settings > System > Serial Comm to set the serial port, baudrate and RS485 address. Click Confirm to save. | 41 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 43 4) Click Add in operation column, a new window will pop-up. Select Icon type, Area, and Add to Level from each dropdown and click OK to add the device. | 42 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 44 After the KF1000 Pro is wired according to normal RS485 wiring and the reader is configured in the software, it can communicate normally with the InBio Pro Plus controller, and the user verifies | 43 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 45 Then enable the face template extraction function for the reader. 2. Setting the Facial Template Extraction Server Click Personnel > Personnel > Parameters to enable facial template extraction. | 44 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 46 Click Personnel > Person > New > Browse to find the photo you need to upload. Thenclick Send to comfirm and follow the prompts. After entering the person's information, click OK to save and exit. | 45 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 47 First, name the user photo file with the user ID number. Then click Personnel > Personnel > Person > Import > Import Personnel Photo to import photos in bulk | 46 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 48 Once the upload is complete, the result of Succeed or Failed will be displayed on the image and a pop-up alert box will appear. Click to close it. | 47 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 50 [Add Door] icon in the levels group bar to open the settings window. Select the door and then click to move it to the selected column on the right. Click OK to confirm and exit. | 49 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 51 [AddtoLevels] icon in its bar to open the settings window. Select the levels group and then click to move it to the selected column on the right. Click OK to confirm and exit. | 50 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 52 Check the department and click the settings window. Select the levels group and then click to move it to the selected column on the right. Click OK to confirm and exit. | 51 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 53 The voice prompts "Unauthorized multi-people authentication personnel" and the red light failure, background blinks three times. authentication timeout, global anti-submarine, global interlocking, personnel validity, the number of people control | 52 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 54 4.3.6 Online Firmware Upgrade The InBio Pro Plus Series controller supports online firmware upgrades with ZKBioCVSecurity software, and synchronized firmware upgrades for downstream 485 readers. Click Access > Access Device > Device > Control > Upgrade Firmware to upgrade the firmware online for the selected controller.
Page 55 No lightning conductor can serve as a ground wire and ensure there is no lightning current through any ground wire when there is lightning. Metal wiring troughs and pipes must be connected continuously and reliably and linked to ground wires through large-diameter | 54 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 56 Figure 5-1 TCP/IP Communication System Networking In Access software: Click Device > Search Device to search for access controllers in the network, and directly add from the search result. | 55 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 57 111001, put number 1, 2, 3, and 6 to ON position, as illustrated below. Figure 5-3 DIP switch setting diagram Table 4-1 485 address setting table Switch Setting Place Address Address No. | 56 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 59 Restoring factory setting  If you forget the IP address of the InBio Pro Plus series panel or the device does not work normally, you can use the number 7 DIP switch to restore it to factory default settings. The parameters which gets reset are device IP address, communication password, gateway, and subnet mask.
Page 60 Then you can visit the Web Server. When Web Server is used, “User Name“ and “Password“ should be set firstly. The default “user name” is admin and the default “password” is zkteco@12345. Click Sign In to access the Web Server.
Page 61 Enter the old and new passwords in the pop-up window and click Confirm to change the administrator login password. Language Settings  Click , change the language in which the server interface is displayed, and click Confirm. | 60 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 63 Primary DNS: the default value is null, and you can set its value.  Click Confirm to write parameters into the device. please restart the device by manual. | 62 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 64 Http Port: Indicates that the client initiates an HTTP request to a specified port on the server. the default HTTP Port is 80, and you can modify it according to the actual. | 63 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 66 Time Settings You can manually configure the controller time or synchronize the controller time with the PC time, and click Confirm to complete the setting. | 65 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 67 User Manual System Settings Click Reboot. The device will be restarted. Device Information You can view the basic information, remaining capacity, and network information of the current device. | 66 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 68 Users can view and download webserver operation logs here. Load Certificate This feature enables users to upload their authenticated browser certificate for accessing the InBio Pro Plus series's webserver. | 67 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 69 Click [Add] in operation column, a new window will pop-up. Select Icon type, Area, and Add to Level from each dropdown and click [OK] to add the device. | 68 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 70 Fill in all the required fields and click OK. Click Access Device > Device > Control > Synchronize All Data to Devices to synchronize all the data to the device including the new users. | 69 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 71 QR code status according to the actual situation. The default is Dynamic, the valid time of the QR code can be set. On the Server, choose System > Authority Management > Client Register to add a registered App client. | 70 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 72 Open the App on the Smartphone. On the login screen, choose [Personnel] to enter the Personnel Login screen. In the Personnel Login screen, enter the Personnel ID and Password (Default: 123456) to login. | 71 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 73 Organization Name: Scan the organization code you get before.  Account & Password: The personnel ID & password; Same account & password as ZKBio  CVSecurity web. Light Mode Dark Mode | 72 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 74 Note: The QR code is automatically refreshed for every 30s, and it also supports manual refresh. Visitor Invitation  My Invitation Records Show your invitation history, click the Re-Invitation button to quickly invite the visitor. | 73 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 75 User Manual Invite Visitor Click the Add button to fill in visitor information. After clicking the Submit button, the page jumps to the visitor invitation success screen. | 74 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 76 You can take a screenshot of this page and send it to your visitor, or the system will automatically send an email to the visitor. Note: For other specific operations, please refer to ZKBioCVSecurity Mobile App User Manual. | 75 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 77 Privacy Policy Notice: To help you better use the products and services of ZKTeco and its affiliates, hereinafter referred as “we”, “our”, or “us”, the smart service provider, we consistently collect your personal information. Since we understand the importance of your personal information, we took your privacy sincerely and we have formulated this privacy policy to protect your personal information.
Page 79 The components which contain toxins or harmful elements are included due to the current economic or technical limitations which prevent their replacement with non-toxic materials or elements. | 78 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
Page 80 ZKTeco Industrial Park, No. 32, Industrial Road, Tangxia Town, Dongguan, China. Phone : +86 769 - 82109991 : +86 755 - 89602394 www.zkteco.com Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.

This manual is also suitable for:

Inbio160 pro plus Inbio260 pro plus Inbio460 pro plus
