Section 2 Electronic Engine Control
Operational Analysis—Key ON
Signal to
Brush Assy
Signal and AC
voltage to
CO_MON
16

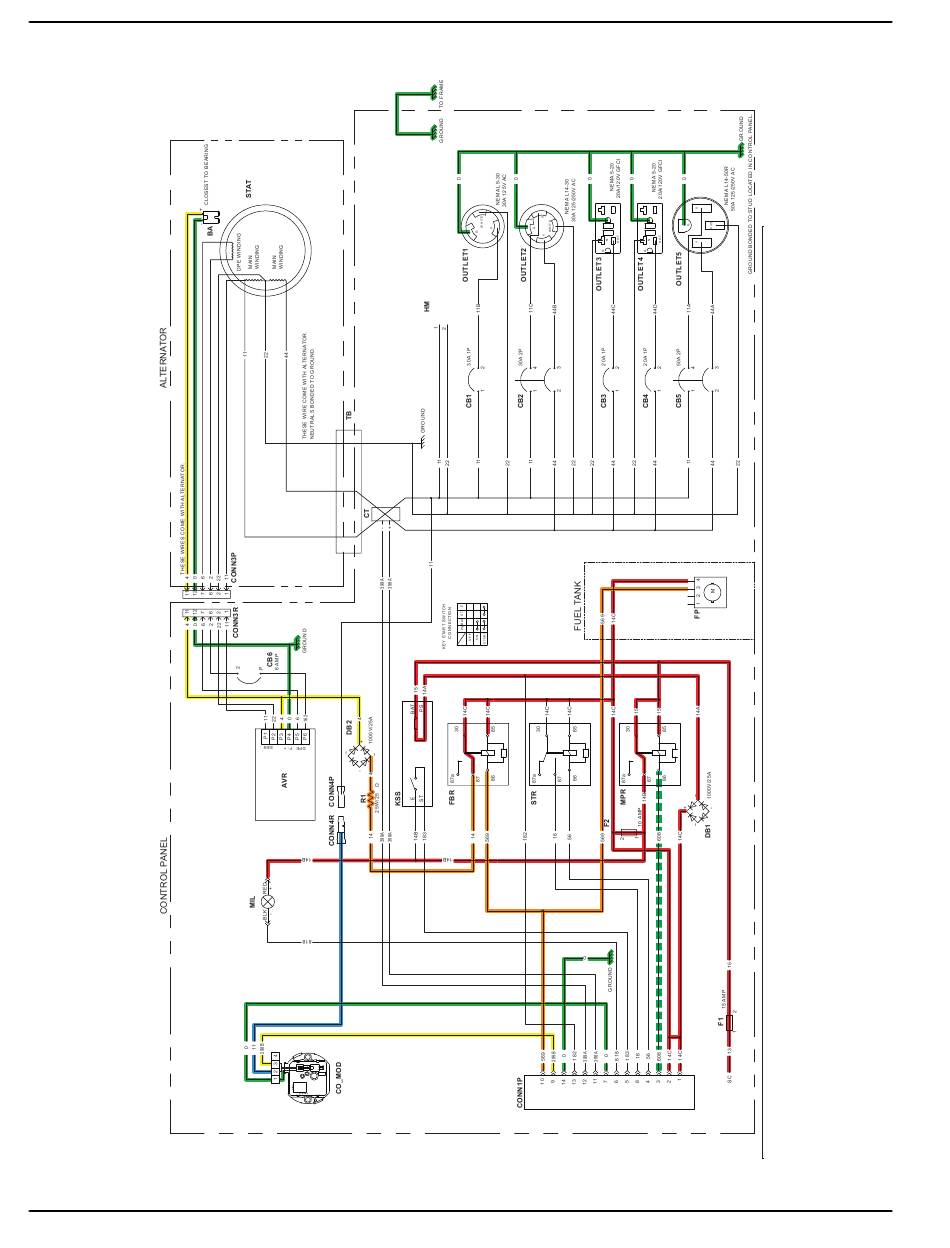

Figure 2-40. Operational Analysis—Key ON
12 VDC supply to
FP, KSS, FBR,
MPR, MIL, DB1
and SC
12 VDC control to
FP, FBR, MPR,
and R1
ECM ground
control to MPR
