Section 2 Electronic Engine Control
Operational Analysis—Key OFF
Ground to Brush
Assy
Ground to
CO_MON
14

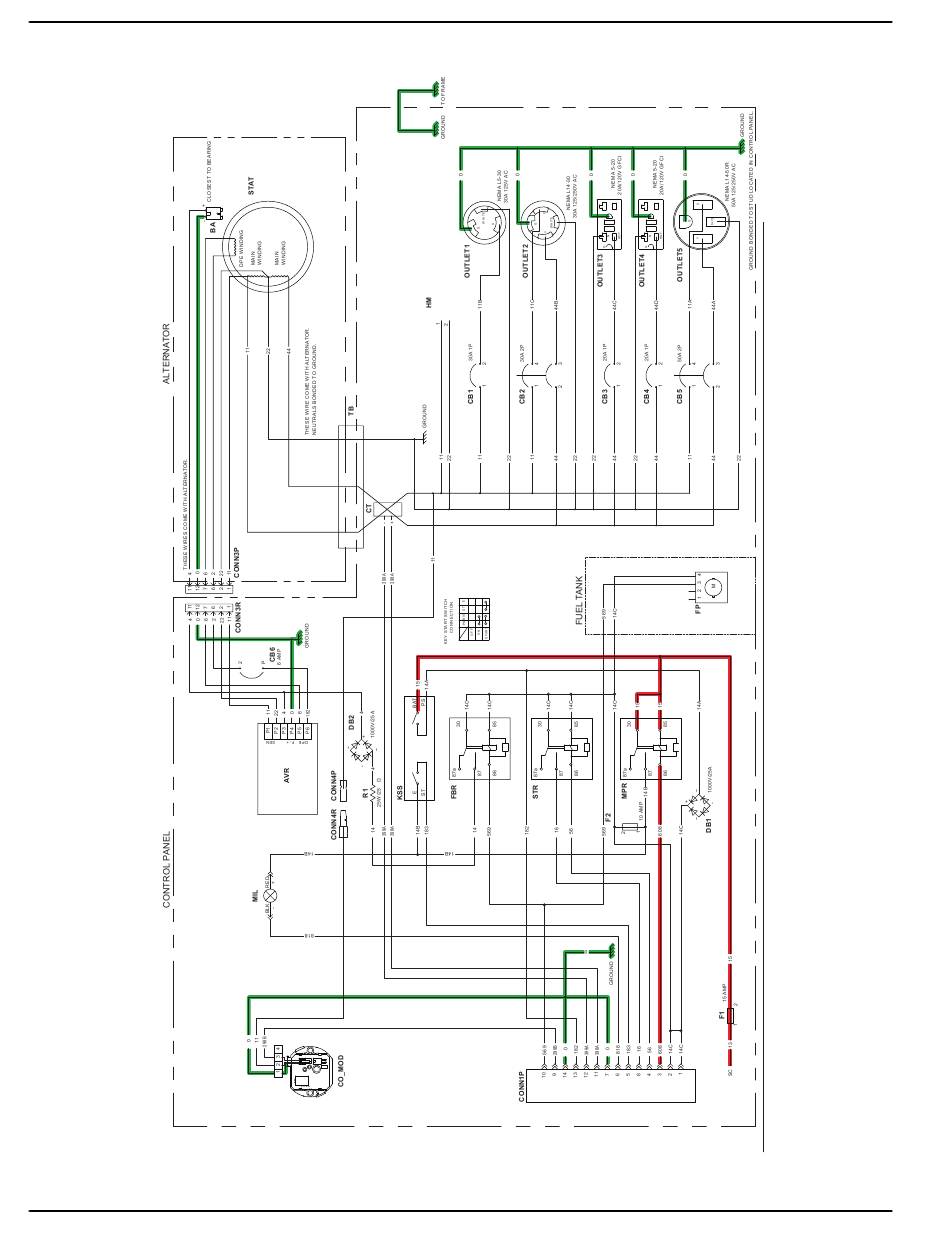

Figure 2-38. Operational Analysis—Key OFF
Ground to Panel
Outlets
12 VDC supply to
KSS and MPR
