Section 2 Electronic Engine Control

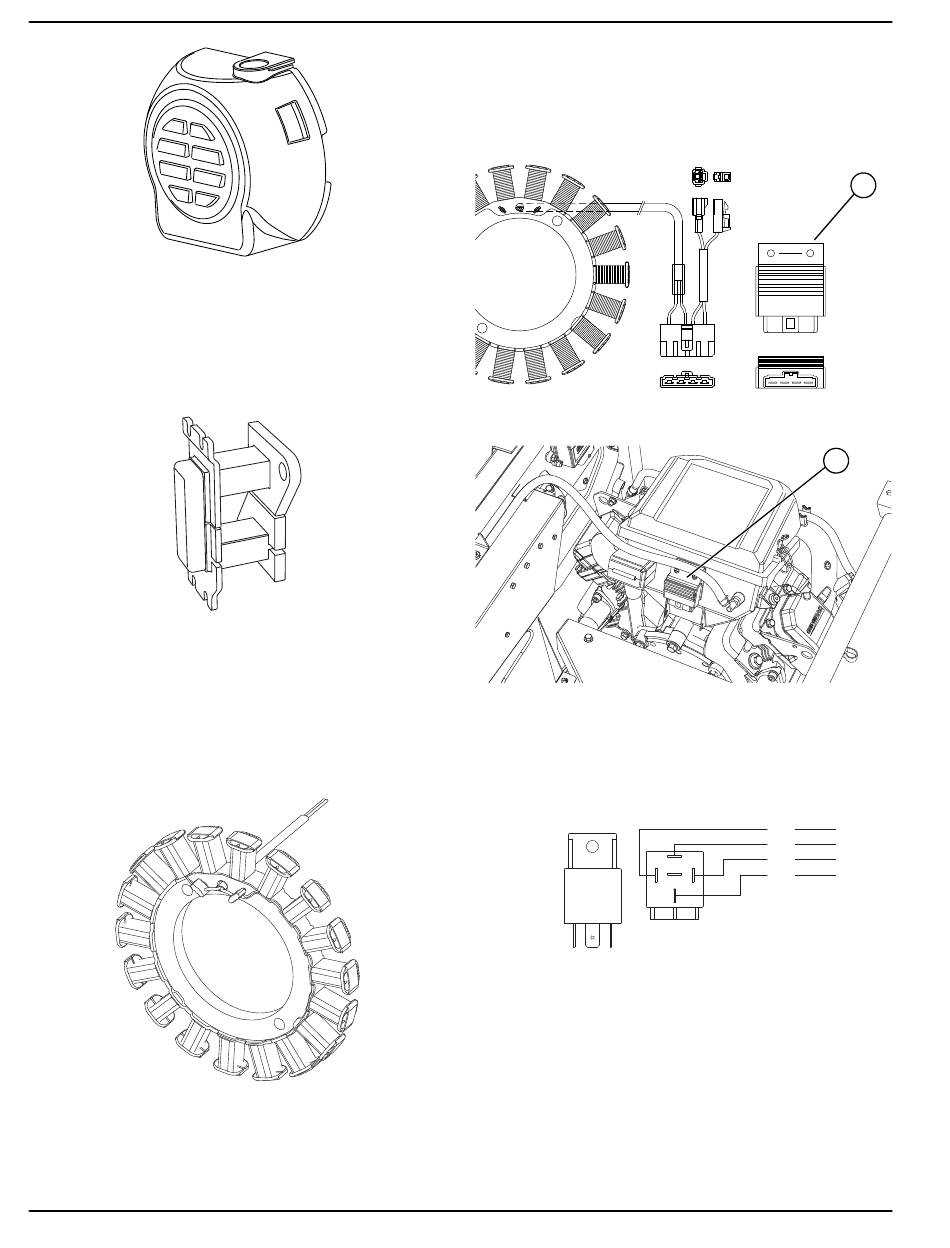

Figure 2-24. CO Module
Current Transformer
See Figure 2-25. The current transformer (CT1) monitors
load voltage. Load fluctuations are instantaneously
signaled to the ECM to maintain optimal fuel delivery
during load transitions.
Figure 2-25. Current Transformer
Engine Charging Components
Engine Stator
See Figure 2-26. The engine stator works in conjunction
with the engine mounted Voltage Regulator to generate
charging voltage for the 12 VDC battery during operation.
Figure 2-26. Engine Stator
8
Voltage Regulator
See Figure 2-27
voltage regulator (VR) (Item E) works in conjunction with
the engine stator to generate charging voltage for the 12
VDC battery during operation.
015005
Figure 2-27. Engine Stator and Voltage Regulator
015006
Figure 2-28. Voltage Regulator Location
Field Boost Relay
See Figure 2-29. The field boost relay (FBR) is located
inside the control panel. The FBR receives 12 VDC
supply from the MPR to flash the field boost circuit.
Figure 2-29. Field Boost Relay
