iFIT PRO-FORM HYBRID TRAINER User Manual page 13

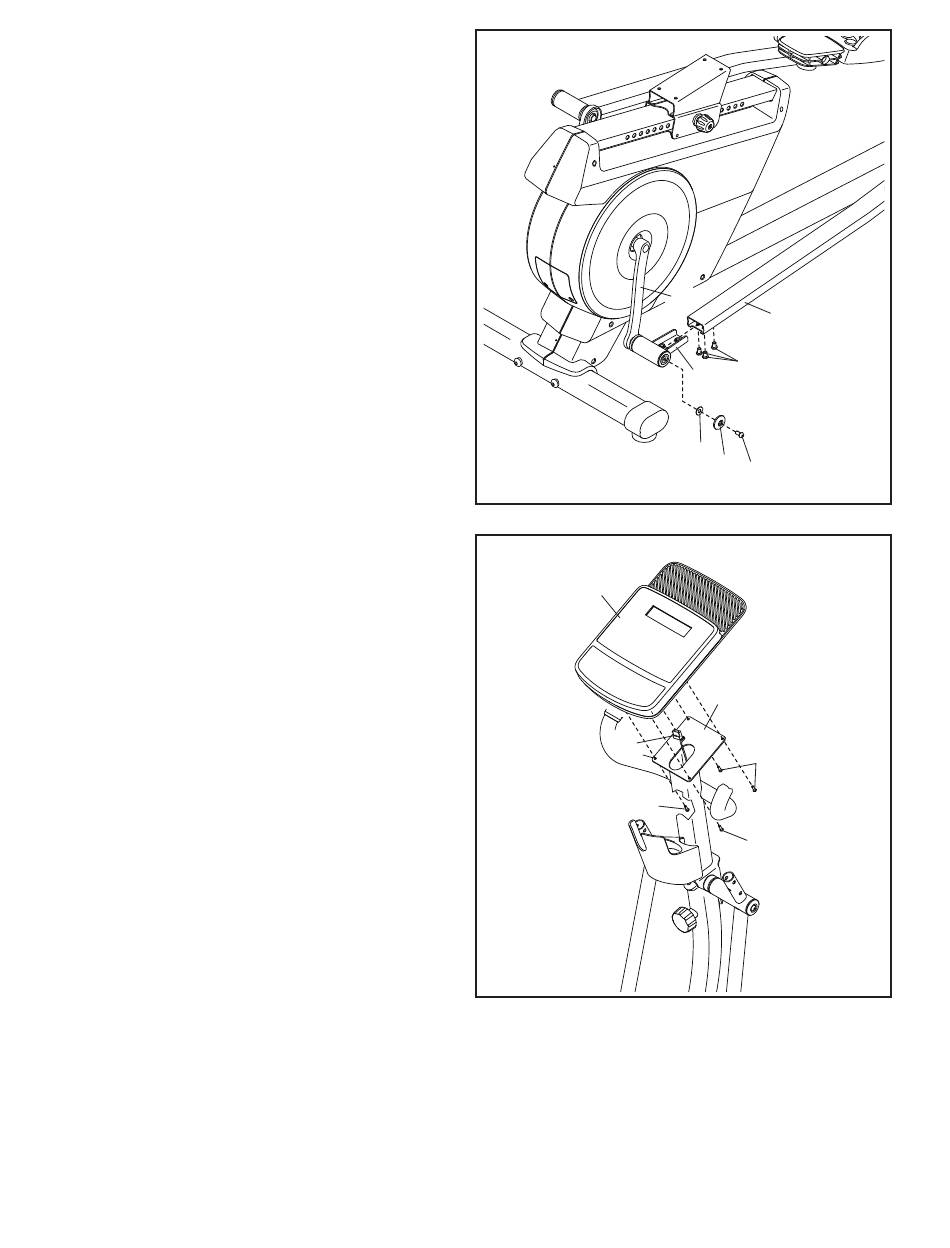

12. Remove and discard the packaging on the Right
Crank Bracket (30). Then, tighten an M8 x 14mm
Shoulder Screw (86) with a Pivot Cover (83) and
an M8 Washer (87) into the right Crank Arm (24).
Next, slide the Right Pedal Arm (9) onto the
Right Crank Bracket (30).
Then, attach the Right Pedal Arm (9) with three
M8 x 12mm Screws (106); start all the Screws,
and then tighten them.
Repeat this step on the other side of the
hybrid trainer.
13. Untie and discard the wire tie on the Upper
Wire (94).
While a second person holds the Console (4)
near the Pivot Bracket (3), plug the Upper Wire
(94) into the receptacle on the Console. Tip: The
wire connector should slide in easily and
snap into place with an audible click. If it
does not, turn the connector and try again.
Insert the excess wire into the Pivot Bracket (3).
Tip: Avoid pinching the wires. Attach the
Console (4) to the Pivot Bracket (3) with four
M4 x 16mm Screws (84); start all the Screws,
and then tighten them.
