wwcomplements AP & EU

Section:

HEIGHT ADJUSTABLE TABLES

Description:

WWCOMP HA BENCH - AP & EU

Double-Sided Rectangular Worksurface (MHWBWBD/EHWBWBD), Double

-Sided Rectangular Worksurface w/ Radius Corners (MHWBWJD/EHWBWJD)

and Double-Sided Frame (MHWBFYD/EHWBFYD)

NOTE:Installation for

WWComplements Europe (EU)

is same as Asia Pacific (AP).

Installation Guides

NOTE:For WWComplements

Europe (EU) products starts

with EH and for Asia Pacific

(AP) starts with MH.

NOTE: MHWBFYD1418

and MHWBWBD071806B

is shown as example.

D1 or D2

Date:

WWC_102

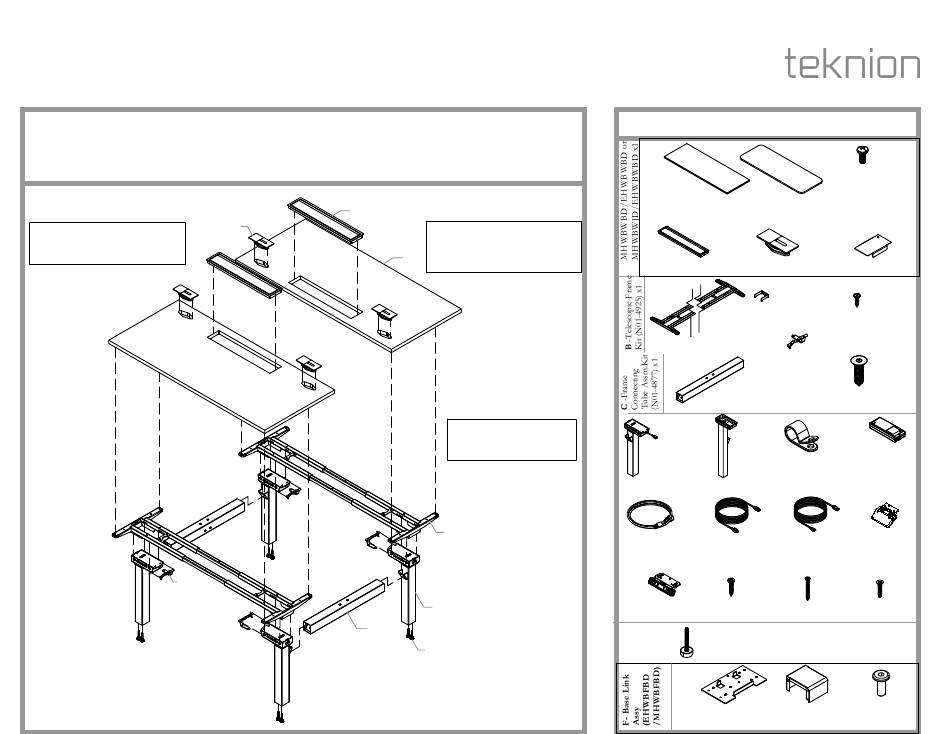

Part and Product Identification

A1 - Rectangula HA Wksf.

A1 - Rectangular HA Wksf.

for- hiSpace(C07-7491) x1

for- hiSpace W\ Rad. (C07-7414) x1

(for MHWBWBD/EHWBWBD)

(for MHWBWJD/EHWBWJD)

A3 - Rect. Grommet

A2 - Access Door Asm.

(RAGC) x1(for both)

(N01-4759) x1 (for both)

B2 - Motor Housing

Cover (A16-9446) x2

B1 - Telescope Frame

(N01-4851) x2

C1 - Frame Connecting

Tube Assm. (N01-4851) x2

D1 -Leg L/R

(N01-4876) x2

D3 - Cable Clamp

(N01-4852) x2

(B02-0558) x10

D2 -Fixed Height

Leg L/R (N01-7764) x2

D5 - Right Angle

D6 - 3m Power

D7 - 3m Power Cord

Connector 1m Lg.

Cord

(I04H-0007) x1

(D06-4277) x2

(D06-4136) x1

D9 - Keypad,hiSpace

D10 - #10 x 25mm,

D11 - #4 x 25mm,

Table (D06-4276) x2

(E01-1415) x2

(E01-1470) x4

E - Leveler, M6 x 54mm long

(D06-4291) x8

F2 - Base Link

F1 - Base Link, SS

Cover, SS

(A16-9447) x1

(A16-9458) x1

Oct 2022

Page No:

1 of 23

Rev. No: 0

A5 - M5x0.8 Pan Head

Machine Screw

(E01-1106)x20

A4 - Alignment Kit

(X01-3835)x0.1 (for both)

B3 - Wood Screw

#10x20mm (E01-1414) x16

B4 - Cam Handle w/

Cotter Pin. (N09-9814) x2

C2 - M8x25mm Flat Socket

Head Screw (E01-1410) x4

D4 -

ControlBox

W\Anti Collison

(D06-4275\650)x1

(D06-4275\663)x1

D8 - Toggle

Switch Kit

(N01-7336) x2

D12 - #6 x 20mm,

(E01-1417) x10

F3 - M6 x 16mm

Screw Chrome

(E01-1409) x4

Need help?

Do you have a question about the MHWBWBD and is the answer not in the manual?

Questions and answers

Summary of Contents for Teknion MHWBWBD

Page 1 1 of 23 Description: WWCOMP HA BENCH - AP & EU WWC_102 Rev. No: 0 Double-Sided Rectangular Worksurface (MHWBWBD/EHWBWBD), Double Part and Product Identification -Sided Rectangular Worksurface w/ Radius Corners (MHWBWJD/EHWBWJD) and Double-Sided Frame (MHWBFYD/EHWBFYD) A5 - M5x0.8 Pan Head...
Page 2 wwcomplements AP & EU Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Oct 2022 Page No: 2 of 23 Description: WWCOMP HA BENCH - AP & EU WWC_102 PLACE AND ALIGN BOTH WORKSURFACES STEP 1: Place and Align both the Worksufaces side by side.
Page 3 wwcomplements AP & EU Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Oct 2022 Page No: 3 of 23 Description: WWCOMP HA BENCH - AP & EU WWC_102 PLACE THE TELESCOPIC FRAME SECURE THE TELESCOPIC FRAME - 1 NOTE: Loosen the Set Screws on the Telescopic Frame and Shorten or Lengthen the Frame to align the Pilot holes on the Frames and Worksurfaces.
Page 4 wwcomplements AP & EU Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Oct 2022 Page No: 4 of 23 Description: WWCOMP HA BENCH - AP & EU WWC_102 SECURE THE FRAME - 2 Set Screw Set Screw STEP 3b: Attach the rest of the screws to Completely Secure the Frame as Shown above. Tighten the Set Screws after Securing the Frames. In Europe Worsurface Machine screws are used to fasten the frame as shown...
Page 5 wwcomplements AP & EU Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Oct 2022 Page No: 5 of 23 Description: WWCOMP HA BENCH - AP & EU WWC_102 ATTACH MOTOR HOUSING COVER ATTACH LEGS TO TELESCOPIC FRAME NOTE: Attach D1- LEG (N01-4876) for EHWBFYD (Europe version) or attach D1- LEG (N01-4852) for MHWBFYD (Asia-Pacific version)
Page 6 wwcomplements AP & EU Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Oct 2022 Page No: 6 of 23 Description: WWCOMP HA BENCH - AP & EU WWC_102 SECURE LEGS NOTE: D1 Leg (N01-7543) is for Height adjustable bench(EHWBFYD) STEP 6A: Secure legs to Telescopic Frame as shown above.
Page 7 wwcomplements AP & EU Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Oct 2022 Page No: 7 of 23 Description: WWCOMP HA BENCH - AP & EU WWC_102 ATTACH LEGS TO TELESCOPIC FRAME SECURE LEGS TO WORKSURFACE NOTE: Brackets will face away from User towards back of worksurface NOTE: D2 Leg (N01-7764) is for FIxed bench (EHWBFYD)
Page 8 wwcomplements AP & EU Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Oct 2022 Page No: 8 of 23 Description: WWCOMP HA BENCH - AP & EU WWC_102 INSTALL CAM HANDLE SECURE CAM HANDLE STEP 7: Install Cam Handle as shown above and Make sure its Locked In. STEP 8: Insert Pin and Lock the Cam Handle as Shown above.
Page 9 wwcomplements AP & EU Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Oct 2022 Page No: 9 of 23 Description: WWCOMP HA BENCH - AP & EU WWC_102 ATTACH LEVELER TO LEGS STEP 9: Attach Leveler to Legs as shown above. Fasten it by Rotating Clockwise.
Page 10 wwcomplements AP & EU Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Oct 2022 Page No: 10 of 23 Description: WWCOMP HA BENCH - AP & EU WWC_102 ATTACH FRAME CONNECTING TUBE INSERT ALIGNMENT KIT STEP 10: Attach the Frame Connecting Tube assembly to the Brackets on the Leg Assmembly. STEP 11: Place the Brackets as shown.
Page 11 wwcomplements AP & EU Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Oct 2022 Page No: 11 of 23 Description: WWCOMP HA BENCH - AP & EU WWC_102 ALIGN BOTH WORKSURFACES SECURE FRAME CONNECTING TUBE NOTE: Make sure the distance or gap between Worksurfaces are equal (X1=X2).
Page 12 wwcomplements AP & EU Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Oct 2022 Page No: 12 of 23 Description: WWCOMP HA BENCH - AP & EU WWC_102 ATTACH AND SECURE THE CONTROL BOX NOTE: Attach D4-Control Box(D06-4725\650) for EHWBFYD (Europe version) or attach D4-Control Box(D06-4725\663) for MHWBFYD (Asia-Pacific version) STEP 14: Attach the Control Box to the Worksurface and Secure using the Screws provided.
Page 13 wwcomplements AP & EU Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Oct 2022 Page No: 13 of 23 Description: WWCOMP HA BENCH - AP & EU WWC_102 ATTACH CONNECTOR TO CONTROL BOX STEP 15: Attach the Connector Cable to Control box and to Leg as shown. Arrange the extra wire between the Telescopic Frame.
Page 14 wwcomplements AP & EU Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Oct 2022 Page No: 14 of 23 Description: WWCOMP HA BENCH - AP & EU WWC_102 ATTACH SWITCH AND WIRE MANAGEMENT NOTE: Only install one Switch to avoid damage when flipping the table assembly.
Page 15 wwcomplements AP & EU Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Oct 2022 Page No: 15 of 23 Description: WWCOMP HA BENCH - AP & EU WWC_102 ATTACH SWITCH AND WIRE MANAGEMENT NOTE: Don't have to Attach NOTE: Attach D6- 3m Power Cord Toggle switch for fixed height (D06-4293) for EHWBFYD (Europe (EHWBFYD2F)
Page 16 wwcomplements AP & EU Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Oct 2022 Page No: 16 of 23 Description: WWCOMP HA BENCH - AP & EU WWC_102 PLACE CABLE CLAMP NOTE: Attach D6- 3m Power Cord (D06-4293) for EHWBFYD (Europe version) or attach D7-3m Power Cord (I04H-0007) for MHWBFYD (Asia-Pacific version)
Page 17 wwcomplements AP & EU Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Oct 2022 Page No: 17 of 23 Description: WWCOMP HA BENCH - AP & EU WWC_102 TURN THE TABLE ASSMEBLY NOTE: Please Make sure to have at least Two Persons for this Step. STEP 18: Turn the Table Assembly and Rest it on its Leveler.
Page 18 wwcomplements AP & EU Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Oct 2022 Page No: 18 of 23 Description: WWCOMP HA BENCH - AP & EU WWC_102 LINKING ASSEMBLYS: ALIGN WORKSURFACES STEP 19: Bring over 2nd Assembly and Align Worksurfaces so that they are 25mm apart.
Page 19 wwcomplements AP & EU Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Oct 2022 Page No: 19 of 23 Description: WWCOMP HA BENCH - AP & EU WWC_102 ROUGH LEVELLING NOTE: If the difference in floor elevation between frames is >1-1/8" they cannot be linked.
Page 20 wwcomplements AP & EU Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Oct 2022 Page No: 20 of 23 Description: WWCOMP HA BENCH - AP & EU WWC_102 ATTACH BASE LINK ATTACH BASE LINK COVER STEP 21: Attach Base Link to underside of Frame Connecting Tubes and Secure using STEP 22: Attach the Base Link Cover to the Base Link and snap in place.
Page 21 wwcomplements AP & EU Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Oct 2022 Page No: 21 of 23 Description: WWCOMP HA BENCH - AP & EU WWC_102 LEVELLING BENCH - FINAL ADJUSTMENTS NOTE: It is recommended to use a laser level tool to check final alignment.
Page 22 wwcomplements AP & EU Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Oct 2022 Page No: 22 of 23 Description: WWCOMP HA BENCH - AP & EU WWC_102 ATTACH GROMMET AND ACCESS DOOR ASSM SECURE ACCESS DOOR ASSEMBLY Wood Screw STEP 24: Attach Grommet and Access Door Assembly to the Worksurface. STEP 25: Secure Access Door Assembly to the Worksurface using 2 Wood Screws and Fasten it through the Pilot Hole shown.
Page 23 wwcomplements AP & EU Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Oct 2022 Page No: 23 of 23 Description: WWCOMP HA BENCH - AP & EU WWC_102 INSTALL THE REMAINING SWITCH AND SET UP SWITCHES (OPTIONAL) NOTE: For More information on Setting up hiSpace Table Keypad Switch .
