CBISOLID FAMILY OPERATING MANUAL // PAGE 16
6.2 ASSEMBLY: CBIsolid B/D/C
6.2.1 REQUIRED COMPONENTS
1 CBIsolid B, D or C
2 2 Mounting Screws
Tool Screwdriver
INFO Screw specifications
ST4. 2*16
If possible, do not use countersunk-head screws.

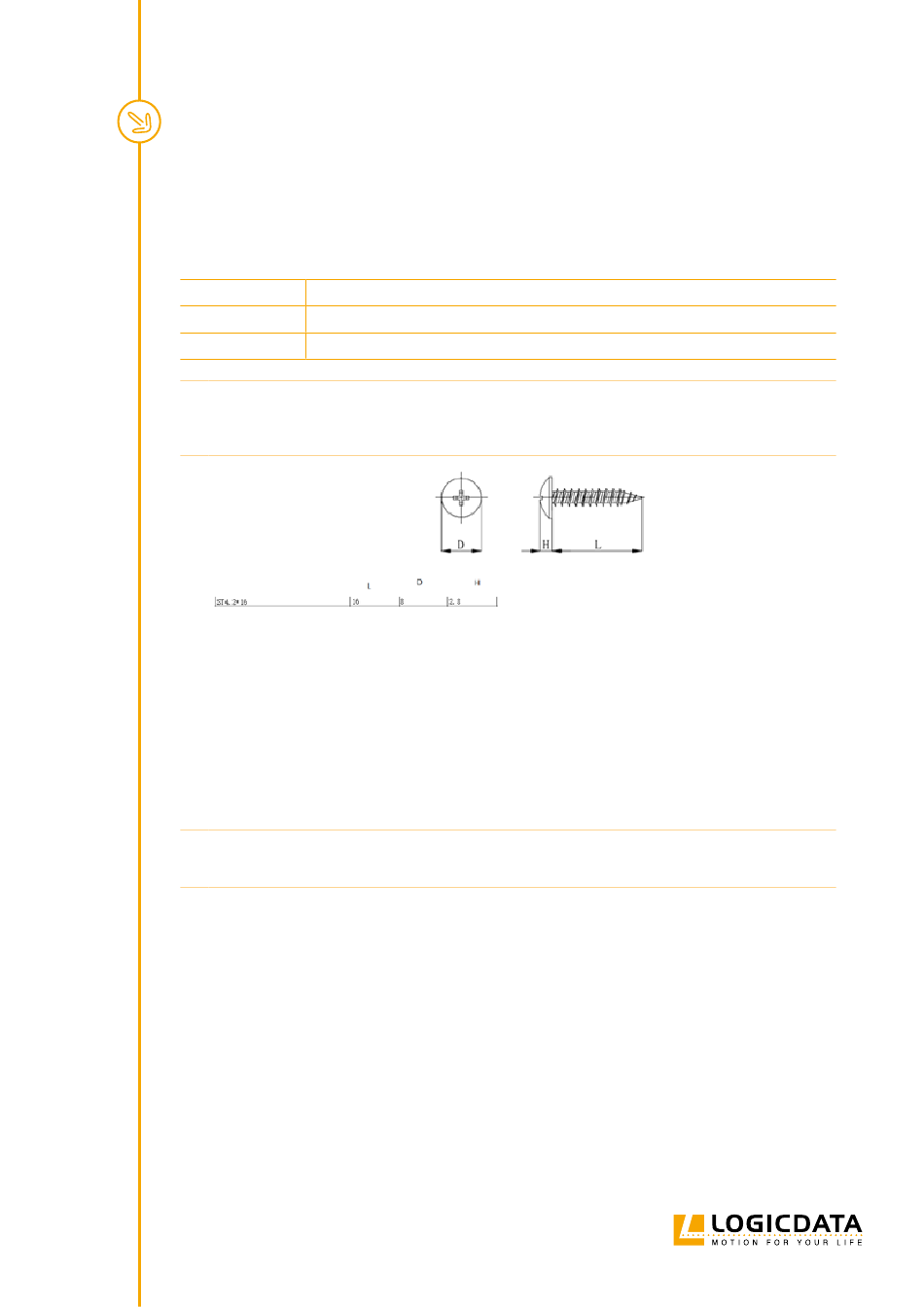

Fig. 10: Screw Specifications
6.2.2 PROCESS
1. Position the Handset under the table top and mark the position of the drilling holes.
2. Use the screwdriver and 2 Mounting Screws to attach the Handset to the Table Top at the
marked drilling points.
3. Use the screwdriver and 2 Mounting Screws to attach the Handset to the Table Top at the
marked drilling points.
NOTICE
The required tightening torque depends on the material of the Table Top. Do not exceed
2 Nm.
Please refer to section 5.3 Drilling Templates for dimensioning details
6.2.3 COMPLETING ASSEMBLY
After the CBIsolid B/D/C is attached to the Table Top, you must connect the Cable to the Control Box. Refer
to the manual for your chosen Control Box for instructions.
