2-stage heat pump, 2-stage heat
Wire Label
Y1
Compressor Relay (Stage 1)
Y2
Compressor Relay (Stage 2)
G
Fan Relay
O/B
Heat Pump Changeover Valve
Rc
24VAC Power from Heating
Transformer
W1
Heat Relay (Stage 1)
W2/AUX
Heat Relay (Stage 2)
C
24VAC Common Wire
*
Rh
AQ+
AQ-
Install Notes: Use for personal/or system notes
Function

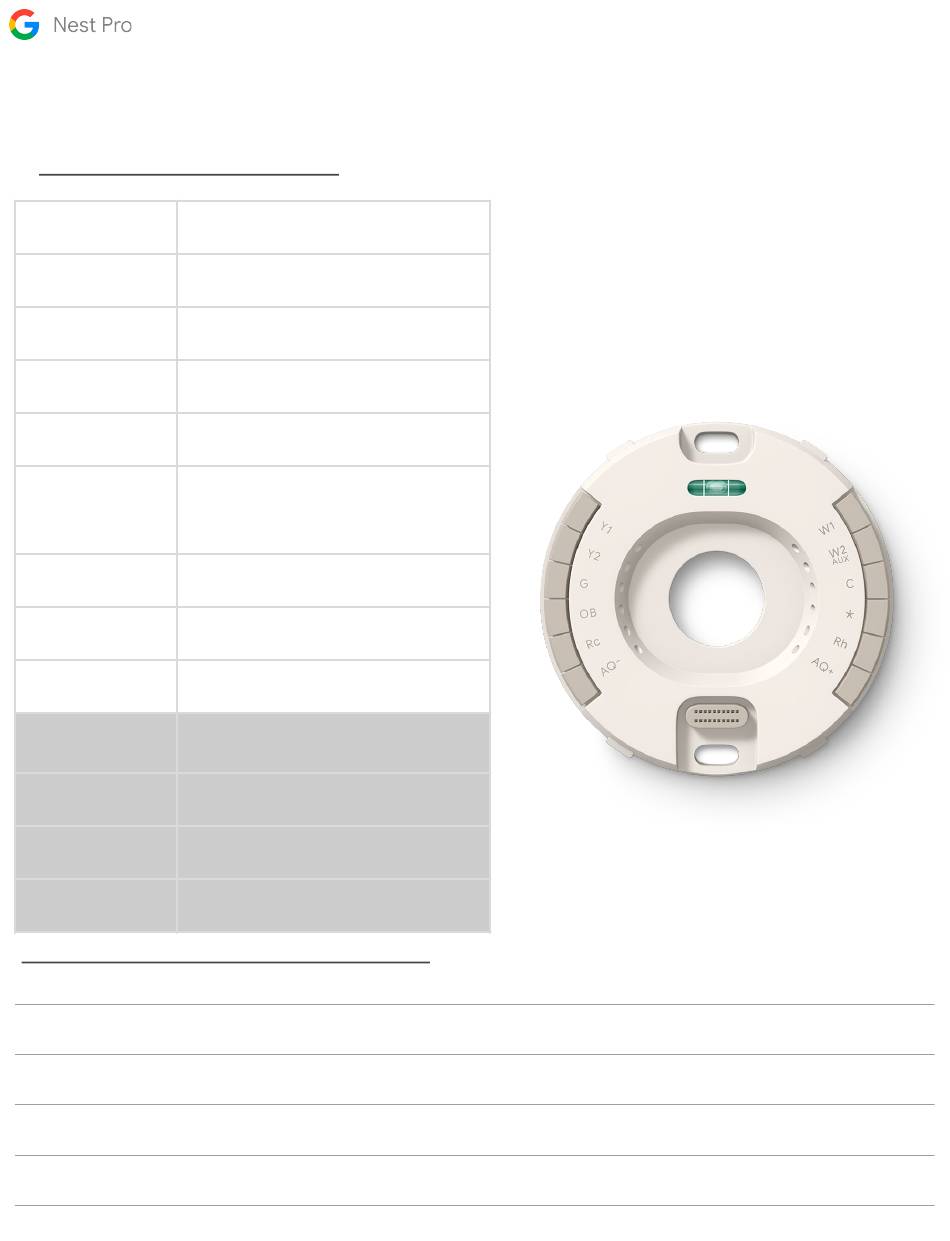

Wiring Diagrams - 2-Stage Heat Pump, 2-Stage Heat
65
