Heat Pumps

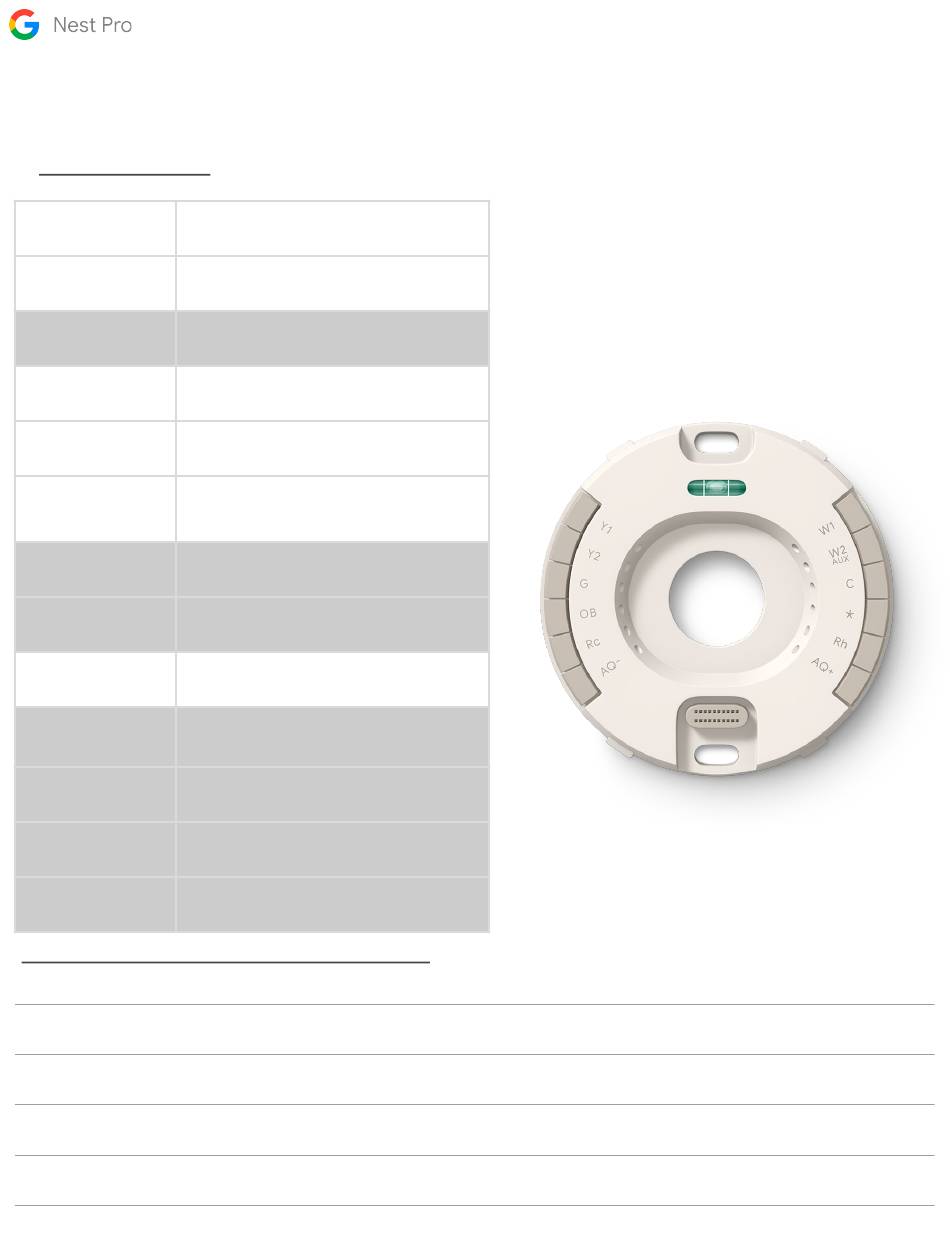

1-stage heat pump
Wire Label
Y1
Compressor Relay (Stage 1)
Y2
G
Fan Relay
O/B
Heat Pump Changeover Valve
Rc
24VAC Power from Cooling
Transformer
W1
W2/AUX
C
24VAC Common Wire
*
Rh
AQ+
AQ-
Install Notes: Use for personal/or system notes
Function
Wiring Diagrams - 1-Stage Heat Pump
56
