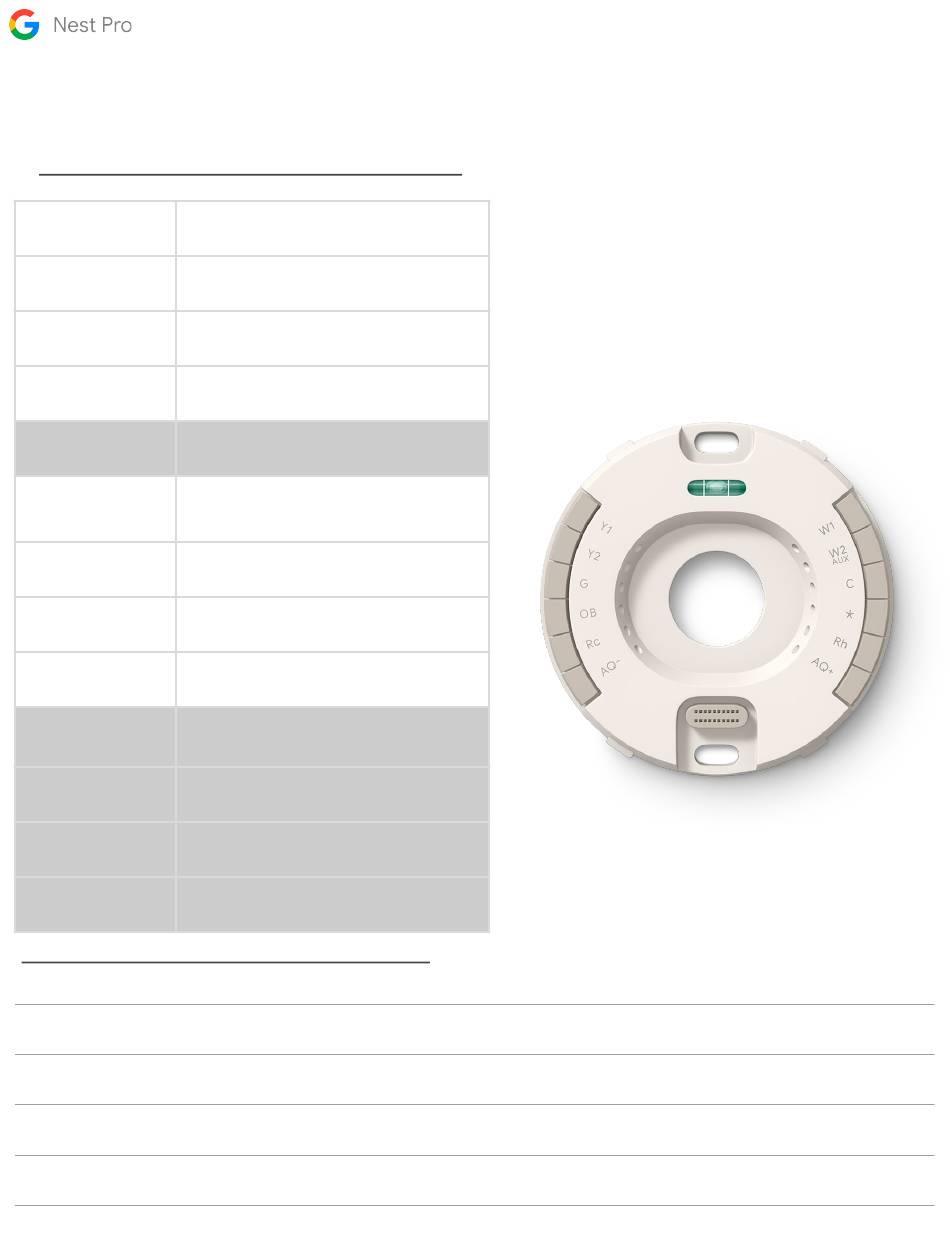

Conventional 2-stage heating, 2-stage cooling
Wire Label
Y1
Compressor Relay (Stage 1)
Y2
Compressor Relay (Stage 2)
G
Fan Relay
O/B
Rc
24VAC Power from Cooling
Transformer
W1
Heat Relay (Stage 1)
W2/AUX
Heat Relay (Stage 2)
C
24VAC Common Wire
*
Rh
AQ+
AQ-
Install Notes: Use for personal/or system notes
Wiring Diagrams - Conventional 2-Stage Heating, 2-Stage Cooling
Function
53
