5)
Equipment configuration - Heating: Now you will configure the equipment connected to your wires,
starting with the Heating wires. For a conventional system, you will choose the heat source and delivery
type. If you have a heat pump, you will be asked to configure your Primary heat then Alternate heating
equipment. As a pro, you will be given the option to configure advanced settings for your heat pump.

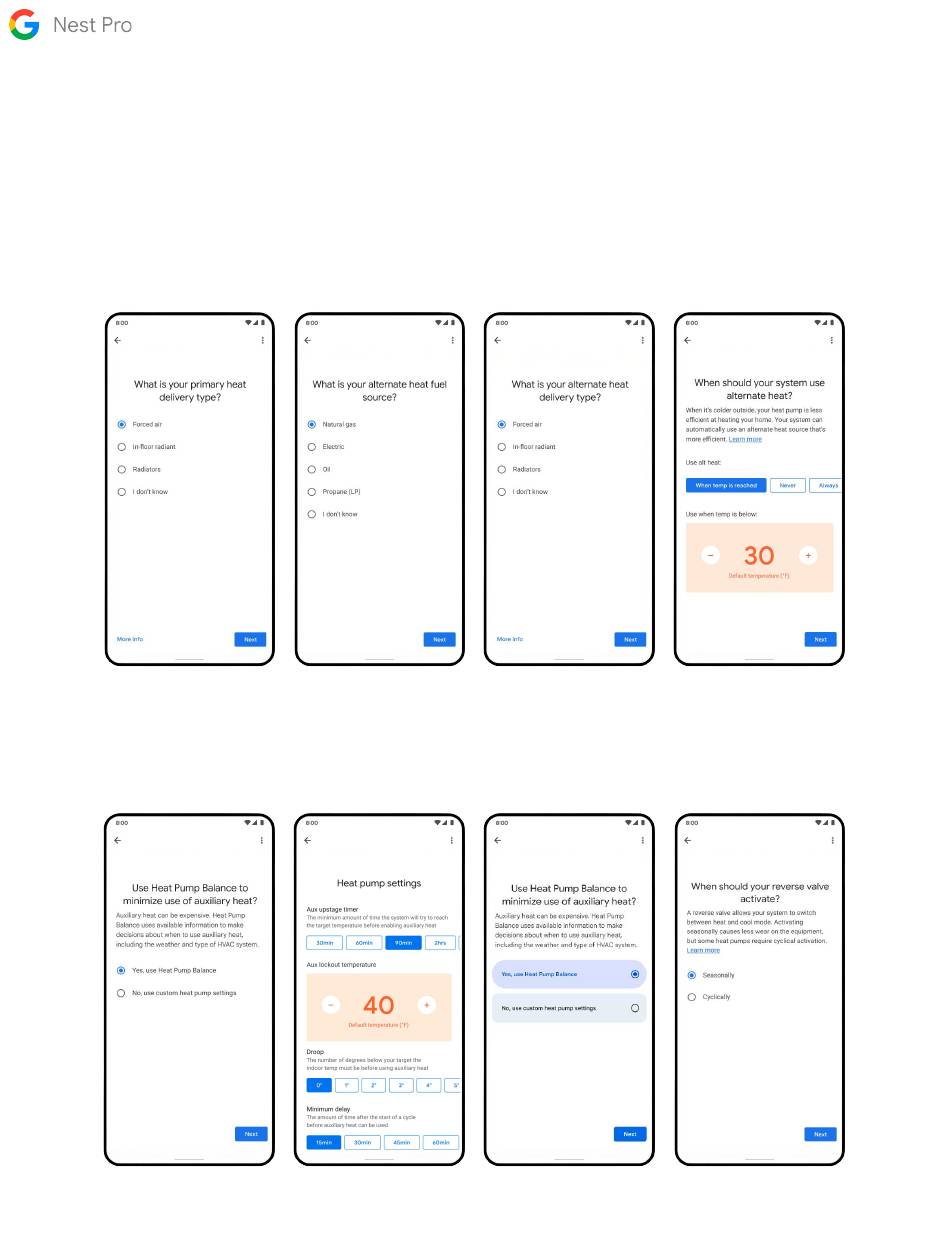

For more information, see page 37. See the screens below for Conventional Heat and Alternate Heat
on a heat pump.
6)
Equipment configuration - Heat Pump: For Heat Pump systems with Auxiliary heat or Alternate heat, you
will choose whether to use Heat Pump Balance or advanced heat pump controls, and when the reversing
valve should activate.
Installation Overview
33
