Installation Overview - Complex Systems
Duel fuel systems - configuring equipment

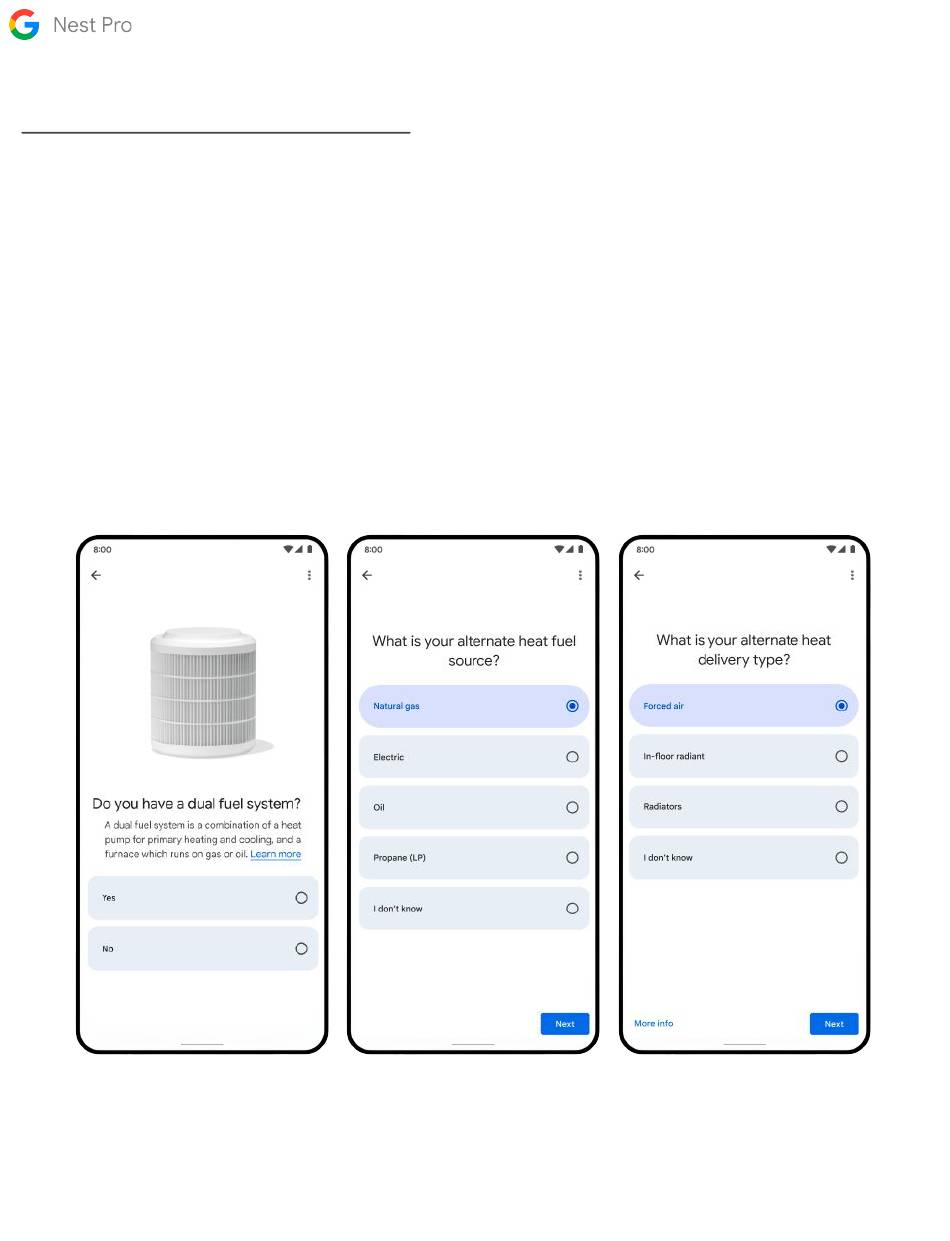

If there's an O/B wire and one or more W wires connected to the Nest Learning Thermostat, Pro Setup will ask if
the heating system is dual fuel or single fuel.
For single fuel, any wires inserted into the W1, W2/AUX connectors will be treated as auxiliary heat that will be
used simultaneously with the heat pump when needed. Only one auxiliary heating wire is supported.
For dual fuel, any wires inserted into the W1, W2/AUX connectors will be treated as alternate heat that will be used
instead of the heat pump when needed. Use Pro Setup to indicate the source (gas, electric, geothermal, etc.) as
well as the delivery mechanism (forced air, radiant, etc.) for each of the W wires connected. The Nest Learning
Thermostat supports up to two wires for alternate heat; additional alternate heat wires are not supported.
39
