G-660C & G-880C GRADALL (Crawler)
A. Adjustable Operator's Seat
B. Joystick Console Post (Adjustable)
C. Joystick for Boom In-Out & Swing
D. Joystick for Hoist & Tool
E. Pedal for Tilt
F. Joystick for Travel
I. Two-Speed Crawler Selector Valve
J. Engine Throttle
K. Emergency Engine Shut-Down
L. VHP Pump Selector Valve
M. Joystick Kill Switch (Off-On)
N. Horn
O. Manual Rack
OPERATOR'S CAB
The operator's cab contains all of the controls needed
for the operation of the Gradall upper-
structure movements, plus controls for the crawler
undercarriage.

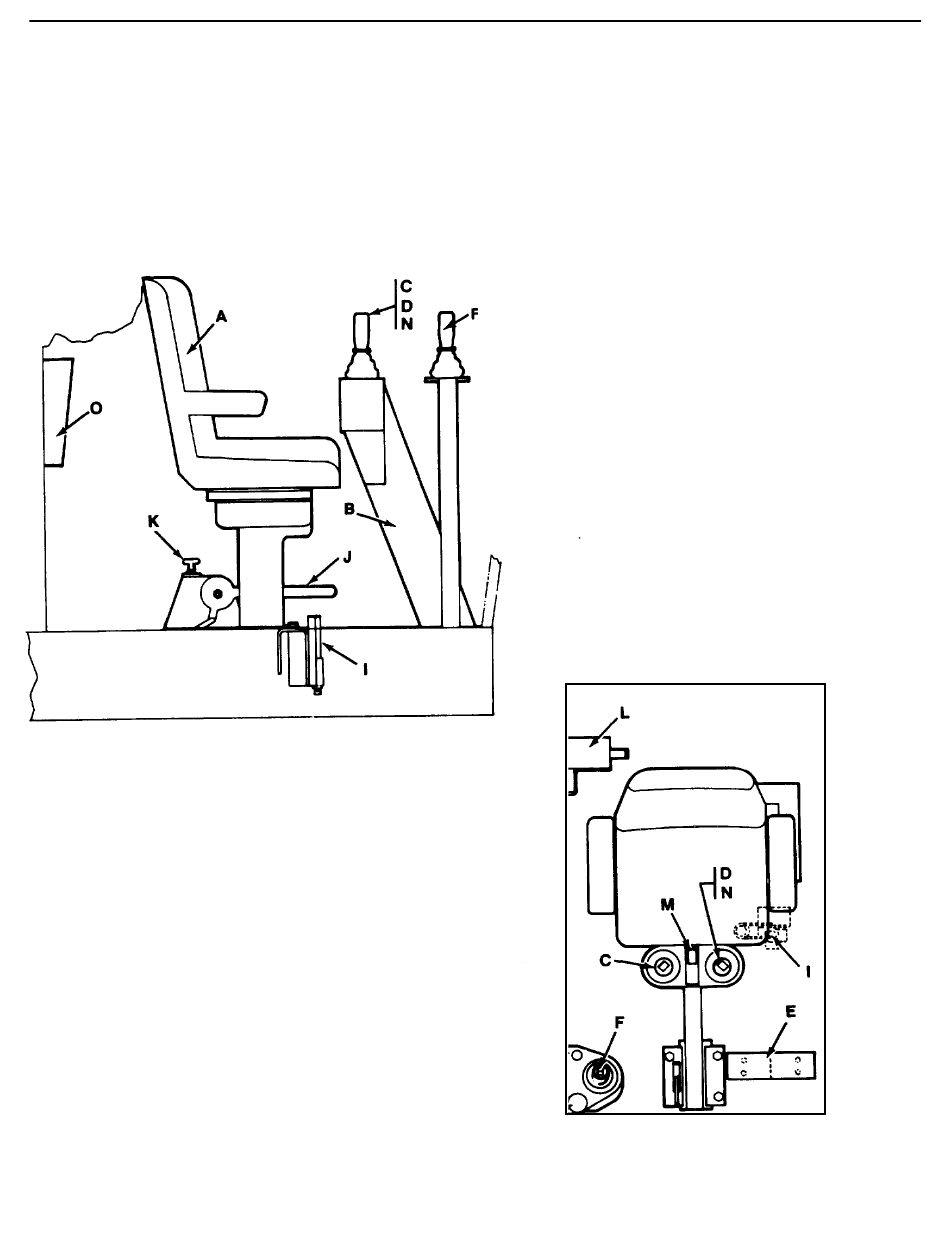

SIDE VIEW
6
OPERATION & MAINTENANCE
TOP VIEW
