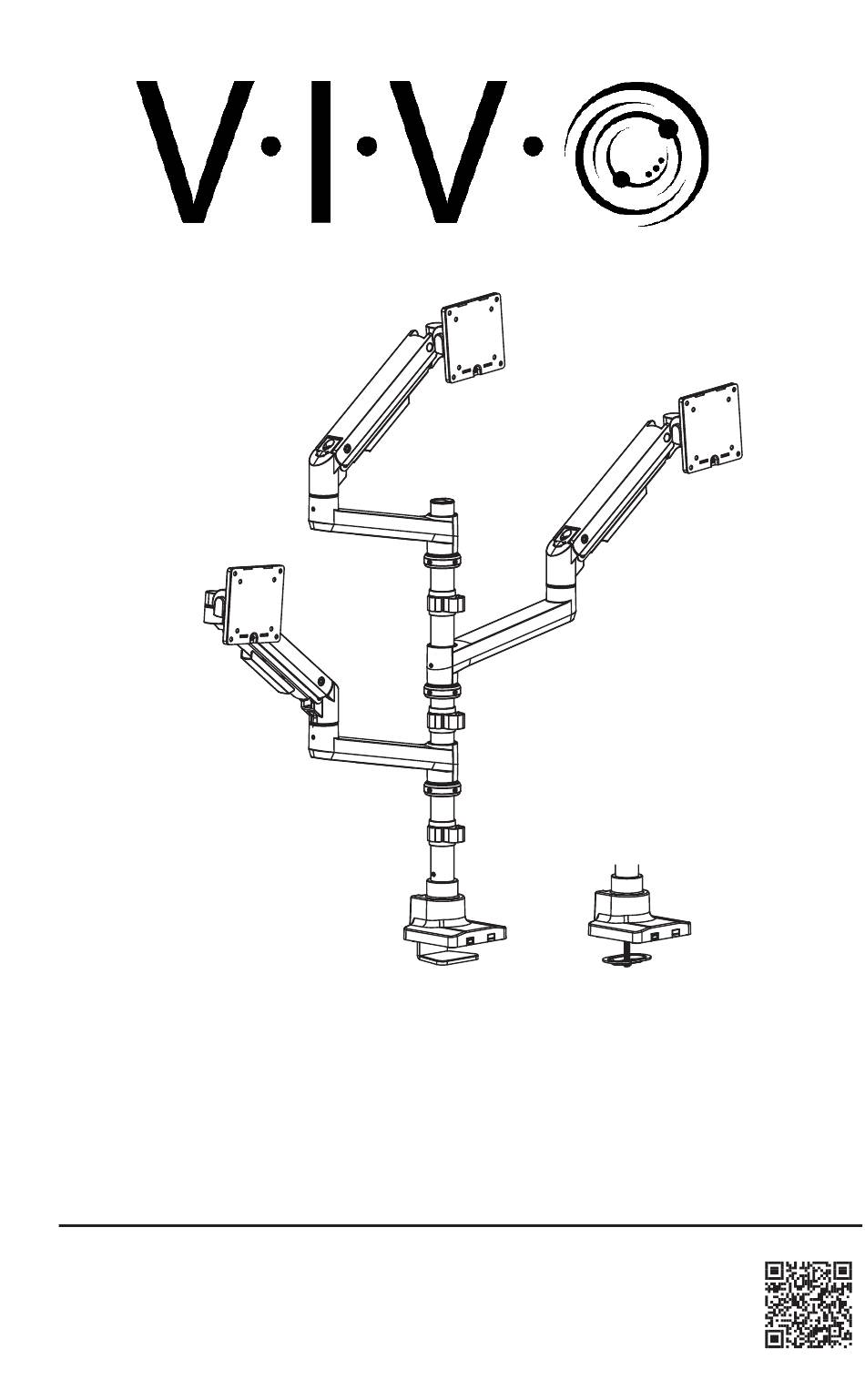

- Page 1 Pneumatic Arm Triple Ultrawide Monitor Extra Tall Desk Mount SKU: STAND-V300D Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/stand-v300d...
- Page 2 [THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK]...
- Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 4 Package Contents A (x1) Pole B (x3) C (x3) D (x3) E (x1) Lower Arm Upper Arm VESA Bracket Clamp F (x1) G (x3) H (x1) I (x3) Grommet Pole Cable Clamp Cable Clamp Cable Plate Clip Clip Clip Included Hardware & Tools S-A (x3) S-B (x1) M-A (x12)
- Page 5 ASSEMBLY STEPS STEP 1 Assembly Option #1: Desk Clamp Using the 6mm Allen Wrench (T-C), loosen the Screw located inside the Clamp (E), lowering the Clamp Bracket, creating a space larger than the thickness of your desktop. Clamp Bracket Slide the Clamp (E) onto your desktop in your desired position.
- Page 6 Assembly Option #2: Grommet Installation Screw Clamp Bracket Use 6mm Allen Wrench (T-C) to remove the Screw and Clamp Bracket located inside the Clamp (E). Both pieces can be discarded and will not be used in the remainder of the assembly.
- Page 7 STEP 2 Slide Pole Cable Clip (G) and Pole (A) over the Post on Clamp (E) and tighten the Set Screw using 3mm Allen Wrench (T-B) to secure. Screw Post...
- Page 8 STEP 3 Loosen the set screws on the top two pre-installed Height Collar (A1) using the 4mm Allen Wrench (T-A) and remove from the pole assembly. Set aside for use in a later step. Use 4mm Allen Wrench to loosen the set screw on the remaining Height Collar (A1) and slide down the pole.
- Page 9 STEP 4 4.1 Slide Lower Arms (B), Pole Cable Clips (G), and the previously removed Height Collars onto the pole assembly as shown below. Contact Plate Height Collar Height Collars feature Contacts Plates that may have slid out of place when removing the Collars. Ensure Plates are secure when mounting Height Collars.
- Page 10 STEP 5 Slide the Upper Arms (C) into the Lower Arms (B). Secure by tightening the set screws using the flat head end of the 4mm Allen Wrench (T-A).
- Page 11 STEP 6 Place the VESA Brackets (D) into the Upper Arms (C) and install using Bushings (I) with the hex side up, and M8x25mm Screw (S-A). Tighten using the 6mm Allen Wrench (T-C). Note: Ensure the hex side of Bushings are facing up.
- Page 12 STEP 7 Place the VESA Plates (D1) onto the back of your monitors with the arrow pointing up. Secure to screens using M4x12mm Screws (M-A) or M5x12mm Screws (M-B), M5 Washers (M-C), and a Phillips screwdriver, making sure not to over tighten.
- Page 13 STEP 8 Adjusting the Tilt Joint Adjustment Screw Loosen Tilt Joint: Lock Angle Use 6mm Allen Wrench (T-C) to Tighten as much as possible loosen the tilt joint Adjustment using the 6mm Allen Wrench Screw, located on the side of (T-C) to lock the angle.
- Page 14 STEP 9 With the assistance of a second person, line up the VESA Plate (D1) on your monitor with the VESA Bracket and the Plate Hooks into the pockets of the VESA Bracket (D). 2 Person Mounting is Recommended *Monitor & VESA Bracket may need to be angled backwards slightly when sliding on.
- Page 15 Fine Tune Tilt Angle If the monitor is angled further than intended... Heavy Weighted/ Ultrawide Monitors [ 22lbs - 44lbs ] Firmly Hold Monitor Firmly grasp and hold the monitor in place. Do NOT release monitor until you have completed steps below. Loosen Tilt Joint: With a hand still on the monitor, use 6mm Allen Wrench (T-C) to loosen the...
- Page 16 STEP 10 Adjusting Monitor Height Position Mount Arm Turn 10-20x to Set Monitor Height Position the arm horizontally, as shown above, and firmly hold in Turn 6mm Allen Wrench (T-C) 10-20 times place. to obtain proper support for your monitor. Use the guide below to adjust the tension according to the amount of counterbalance Insert 6mm Allen Wrench (T-C)
- Page 17 STEP 11 Remove the Arm Cable Covers by sliding up and away from Arms (B,C). Route cables as needed and reinstall the cable covers. Install the Clamp Cable Clip (H) onto Clamp (E) by placing it inside the top of the channel and sliding down.
- Page 18 Arm Cable Covers...
- Page 19 [ THIS PAGE INTENTIONALLY LEFT BLANK ]...
- Page 20 LAST UPDATED: 06/03/24 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
