Vivo STAND-V300G Series Assembly Manual
Vivo STAND-V300G Series Assembly Manual

Vivo STAND-V300G Series Assembly Manual

Triple monitor desk mount 2 pneumatic arms + 1 fixed

Advertisement

Quick Links

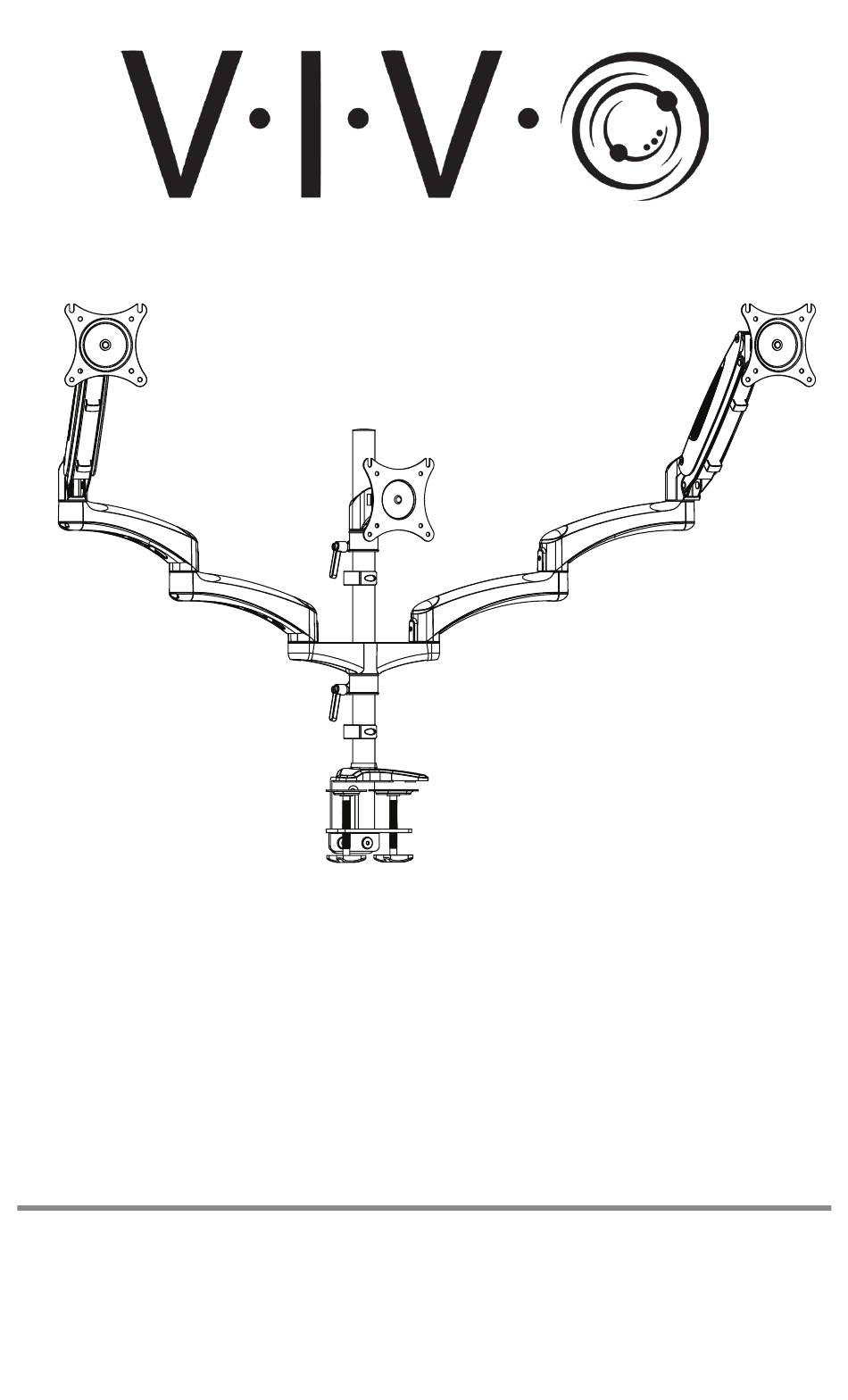

Triple Monitor Desk Mount
2 Pneumatic Arms + 1 Fixed
STAND-V300G Series
Assembly Manual
Individual Product SKUs
STAND-V300G
STAND-V300GW

Advertisement

loading
Need help?

Need help?

Do you have a question about the STAND-V300G Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo STAND-V300G Series

  • Page 1 Triple Monitor Desk Mount 2 Pneumatic Arms + 1 Fixed STAND-V300G Series Assembly Manual Individual Product SKUs STAND-V300G STAND-V300GW...
  • Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
  • Page 3 Package Contents A (x1) B (x1) C (x1) D (x2) Pole Arm Bracket Clamp Shaft Collar E (x2) F (x4) G (x1) H (x6) VESA Arm Arm Extension VESA Plate Plastic Cover I (x2) Cable Clip Included Hardware & Tools M-A (x12) M-B (x12) M-C (x12)
  • Page 4: Assembly Steps

    Assembly Steps STEP 1 Thread Pole (A) onto Clamp (C). Place onto edge of desktop and tighten both Clamp Bolts (C1) to secure. Secure Pole by tightening the set screw on the back of Clamp using 3mm Allen Wrench (T-A).
  • Page 5 STEP 2 Slide Shaft Collar (D) onto Pole (A) and secure by tightening the handle. Slide Arm Bracket (B) onto Pole so that it rests on the Shaft Collar. Secure by tightening the back screw using 5mm Allen Wrench (T-B).
  • Page 6 STEP 3 Place two Arm Extensions (F) on both sides of Arm Bracket (B) as shown. Secure by tightening the set screw on the back of each Arm Extension using 3mm Allen Wrench (T-A). Slide another Shaft Collar (D) onto Pole (A) and secure by tightening the handle. STEP 4 Attach VESA Plate (G) your center monitor using the appropriate Screws (M-A thru M-C).
  • Page 7 STEP 5 Attach VESA Arms (E) to your side monitors using appropriate Screws (M-A thru M-C). Spacers (M-D) may be used if necessary. Too Long Too Short STEP 6 Place monitors with VESA Arms (E) onto Arm Extensions (F). Slide monitor with VESA Plate (G) onto Pole (A).
  • Page 8 STEP 7 Insert Plastic Covers (H) into VESA Arms (E) and Arm Extensions (F). STEP 8 Attach Cable Clips (I) to Pole (A). Manage cables using Cable Clips and the built-in channels leaving enough slack to allow full adjustment of arms.
  • Page 9 STEP 9 Adjusting Side Monitor Height Position Mount Arm Turn 10-20x to Set Monitor Height Position the arm horizontally, as shown above, and firmly hold in Turn 5mm Allen Wrench (T-B) 10-20 times place. to obtain proper support for your monitor. Use the guide below to adjust the tension according to the amount of counterbalance Insert...
  • Page 10: Horizontal Tilt Adjustment

    Vertical Tilt Adjustment To adjust the vertical tilt, loosen the side screw behind the monitor using 5mm Allen Wrench (T-B), adjust as desired and retighten. Horizontal Tilt Adjustment To adjust the horizontal tilt, loosen the top screw behind the monitor using 5mm Allen Wrench (T-B), adjust as desired and retighten.
  • Page 11 Love Your New Setup? Tag Us on Social! @ VIVO-us @ vivo_us @VIVOus VIVO...
  • Page 12 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...

This manual is also suitable for:

Stand-v300gStand-v300gw
