Chapter 15. Chassis door
The chassis door must be installed to ensure that the device meets EMI and other regulatory
certifications. A receiving hole is located on each corner on the back side of the door. Each hole snaps into
a ball stud located on a matching corner of the chassis.
Time and items required
Removal and re-installation should take less than 5 minutes.
Required for installation are the door assembly, packaged separately from the chassis, and ball studs for
the door. Ball studs are packaged with the door assembly.
The door assembly is packaged separately from the chassis.
Removing a chassis door
Support the door to prevent it from falling. Pull and remove the door. It will pop off the ball studs.

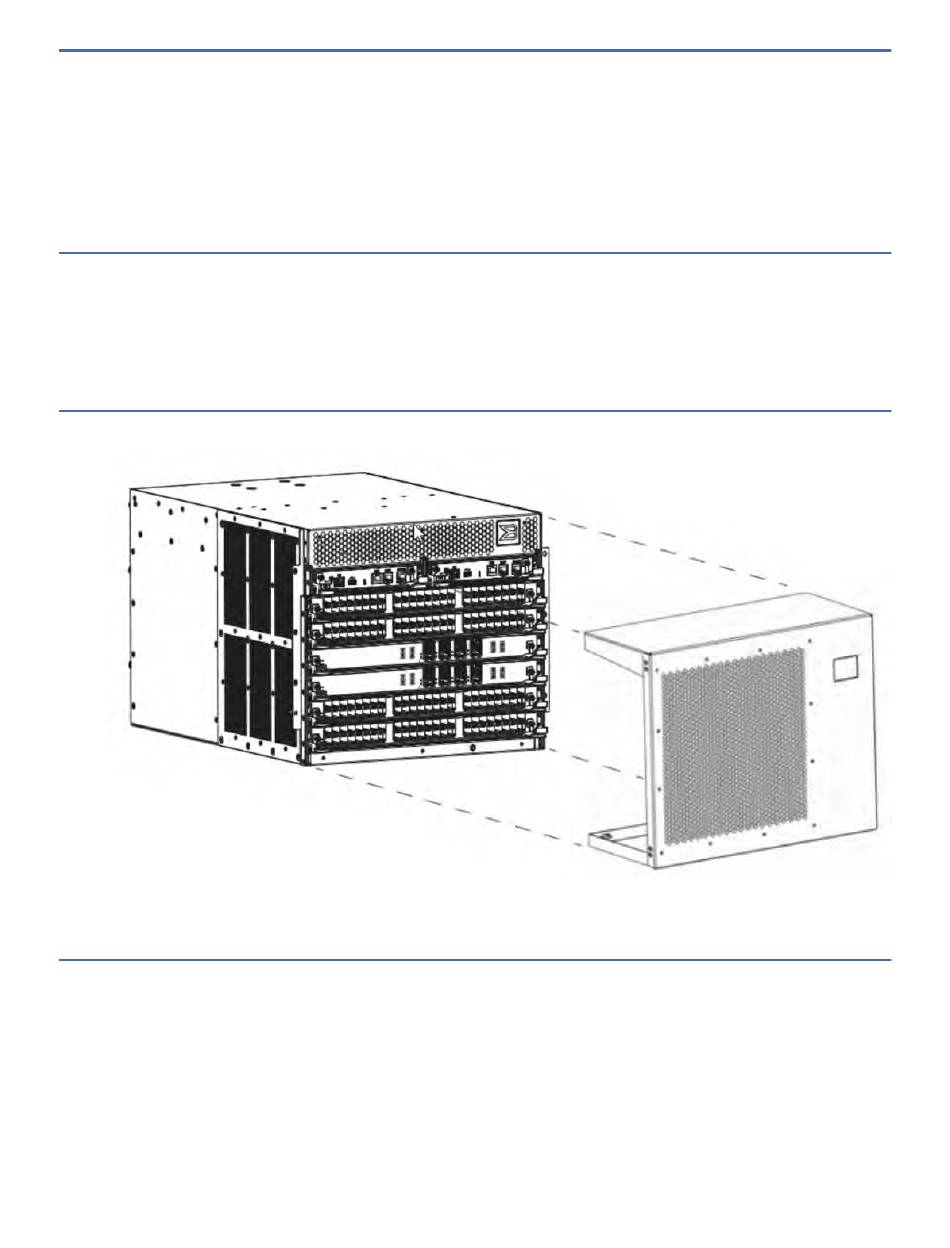

Figure 79. Removal and Replacement of the Chassis Door
Installing a chassis door
About this task
Complete the following steps to install the door on the port side of the chassis.
Procedure
1. Install six ball studs into the chassis at locations indicated in the following figure. Using your fingers,
thread three ball studs into the holes located at the top of the chassis air vent and three ball studs into
the holes located below the blades at the bottom of the chassis. Screw ball studs in finger tight.
Note: The ball studs are packaged with the chassis in the accessory tray.
©
