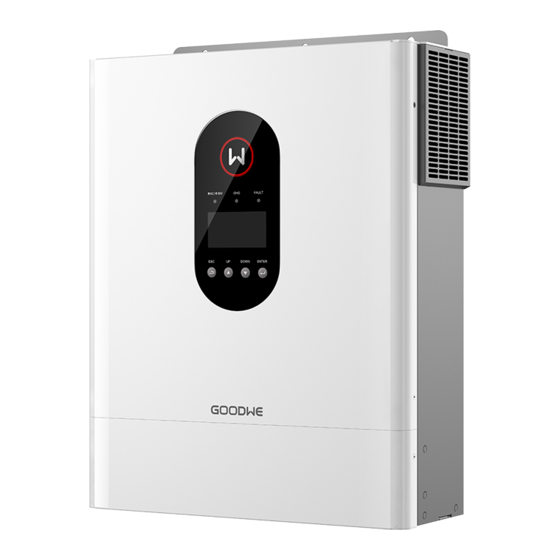

Goodwe EO 3.5-6kW Quick Manual

Goodwe EO 3.5-6kW Quick Manual

Residential smart inverter solutions

Advertisement

Quick Links

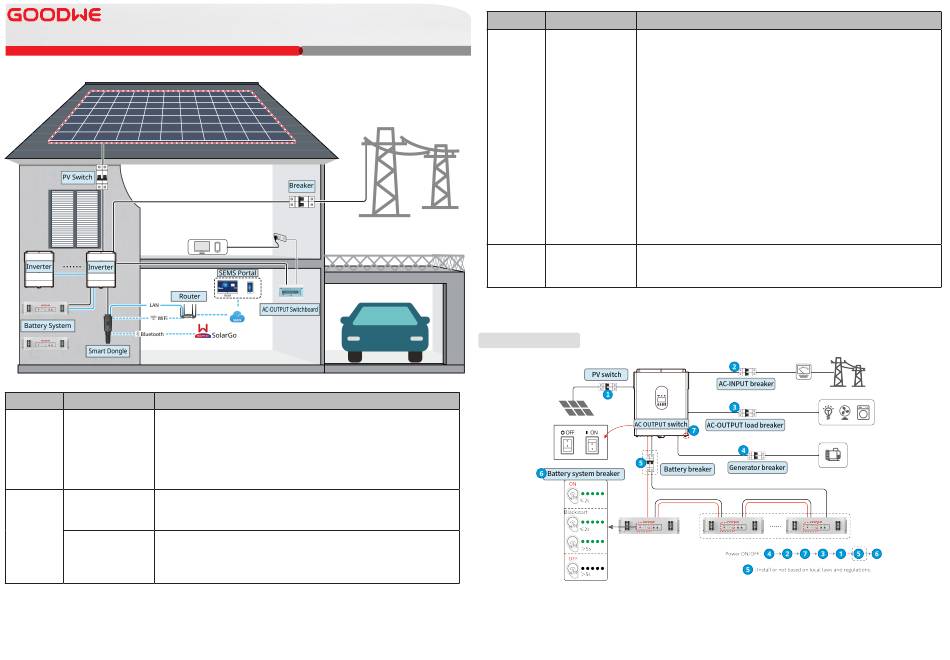

Residential Smart Inverter Solutions Quick Guide (EO 3.5-6kW+Lynx Home A)
01 Networking
Device
Model
Description
• The same system does not support the mixing of different models of off-
grid inverters.
GW3500L-EO-BR
• The nominal output voltage of GW3500L-EO-BR is 127V, and the nominal
Inverter
GW6000-EO
output voltage of GW6000-EO is 220/230V
• A maximum of 3 inverters can be used to form a parallel system.
• Parallel connection of inverters is not supported in three-phase system.
• Do not mix connect battery systems of different models or versions
LX A5.0-10
• LX A5.0-10: The nominal charge and dischage current is 60A of a single
battery. A maximum of 15 batteries can be used in the system.
Battery
• AGM,GEL and Flooded type lead-acid battery is supported in the system.
System
• The number of batteries that can be connected in series is calculated
Lead-acid battery
based on the voltage of lead-acid batteries, and the total voltage of
batteries connected in series is not allowed to exceed 60V.
Device
Model
V1.0-2024-07-29
BCB-11-WW-0
BCB-22-WW-0
Busbar
(Purchase from
GoodWe)
Smart
• Wi-Fi/LAN Kit-20
Dongle
02 Power On/Off
Single inverter
1
Description
• When the charging and discharging current between the battery and the
inverter is less than 140A, it supports direct connection between battery
and inverter without using a busbar. For example: It supports connecting
only one EO series inverter to LX A5.0-10 without using a busbar. For
detailed battery wiring methods, please refer to 6.6 Connecting Battery
Cables.
• When the charging and discharging current between battery and inverter
is ≥140A, a busbar or busbar box must be used to connect the inverter.
(Current ≥ M x IBat rated. (M: The quantity of batteries connected in parallel
in the system, IBat rated: The rated current of the battery).
• BCB-11-WW-0: Used with LX A5.0-10, the battery system supports a
maximum working current of 360A, working power of 18kW, and can
connect to a maximum of 3 inverters, and 6 batteries.
• BCB-22-WW-0: Used with LX A5.0-10, the battery system supports a
maximum working current of 720A, working power of 36kW, and can
connect to a maximum of 3 inverters, and 12 batteries.
• Others: Please prepare busbar based on actual system power and
current.
In a parallel system, each inverter needs to be equipped with a Wi-Fi/LAN
Kit-20 module.
