Goodwe ES Series User Manual
  1. Manuals
  2. Brands
  3. Goodwe Manuals
  4. Inverter
  5. ES Series
  6. User manual
Goodwe ES Series User Manual

Goodwe ES Series User Manual

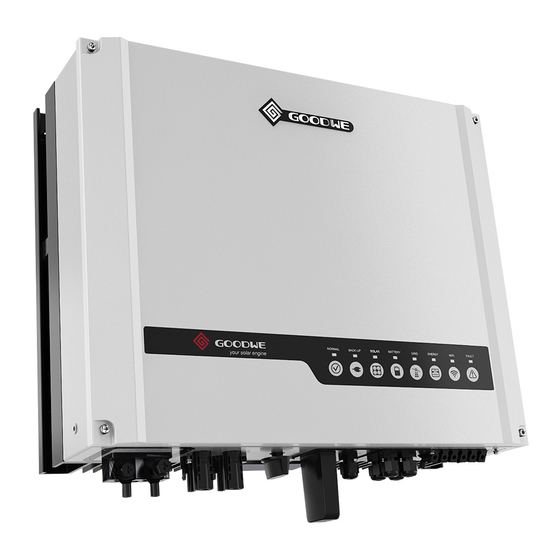

Hybrid inverter
Hide thumbs Also See for ES Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading

Related Manuals for Goodwe ES Series

Summary of Contents for Goodwe ES Series

  • Page 3: Important Safety Warning

    The ES series inverter of Jiangsu GoodWe Power Supply Technology Co. Ltd. (hereinafter referred to as GoodWe) strictly conforms to warranty.

  • Page 4: Installation

    3.2 Product Overview ● Don’t connect ES series in the following ways: ①Back-up port should not be connected to grid; ②Back-up port should not be connected in parallel; ③The single PV panel string should not be connected two or more inverters.
  • Page 6 Positive connector Inverter Negative connector MC4 series AMPHENOL series Limit buckle can't crimping the wire Special tools are used to stitching Figure 4.1-3...
  • Page 10 4.8 Wi-Fi Reset & Reload Wi-Fi Reset & Reload only apply to WiFi connection problem, such as 'can't find the inverter WiFi signal' or 'WiFi configuration problem'. Wi-Fi Reset means restarting the Wi-Fi module. Wi-Fi Reload means making the Wi-Fi module to the default factory setting. ●...

  • Page 11: Led Lights Illustration

    5 EzManage Illustration GRID BLINK = GRID IS ACTIVE BUT NOT CONNECTED ES Series inverter has no LCD screen, it can be controlled via the APP software OFF = GRID IS NOT ACTIVE Home (EzManage). For iOS System, please go to AppStore to search for "EzManage", then ON = CONSUMING ENERGY FROM GRID / BUYING download and install it.

  • Page 12: Work Modes

    8 Error Messages 7. Work Modes An error message will be displayed on the APP if a fault occurs. ES series inverters have the following main work modes based on different conditions: Table 8-1 is the Description of Error Message Error message...

  • Page 13: Technical Parameters

    9 Technical Parameters Model GW5048D-ES GW3648D-ES 99.9% MPPT adaptation efficiency Model GW5048D-ES GW3648D-ES Protection Solar Integrated Residual current monitoring unit Max. allowed PV Power (W) 6000 4600 Integrated Anti-islanding protection Nominal DC power (W) 5000 4000 Integrated (optional) DC switch(PV) Max.
  • Page 14 Note Overvoltage category definition Category I : applies to equipment connected to a circuit where measures have been taken to reduce transient overvoltage to a low level. Category II : applies to equipment not permanently connected to the installation. Examples are appliances, portable tools and other plug-connected equipment;...
