- Page 1 PV Master APP SEMS Portal APP LinkedIn Company's offical website ES SERIES USER MANUAL JIANGSU GOODWE POWER SUPPLY TECHNOLOGY CO.,LTD No. 90 Zijin Rd., New District, Suzhou, 215011, China HYBRID INVERTER www.goodwe.com 340-00444-01 service@goodwe.com Ver 1.0 2020-09-24...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION 1.1 Operation Modes Introduction 1.2 Safety & Warning 1.3 Product Overview INSTALLATION INSTRUCTIONS 2.1 Unacceptable Installations 2.2 Packing List 2.3 Mounting 2.3.1 Select Mounting Location 2.3.2 Mounting 2.4 Electrical Wiring Connection 2.4.1 PV Wiring Connection 2.4.2 Battery Wiring Connection 2.4.3 On-Grid &... -
Page 3: Introduction
The ES series of inverters from Jiangsu GoodWe Power Supply Technology Co., Ltd. (which GoodWe ES series, also called hybird or bidirectional solar inverters, apply to soalr system with can be called Goodwe) strictly complies with related safety rules for product design and partcipation of PV, battery, loads and grid system for energy management. -

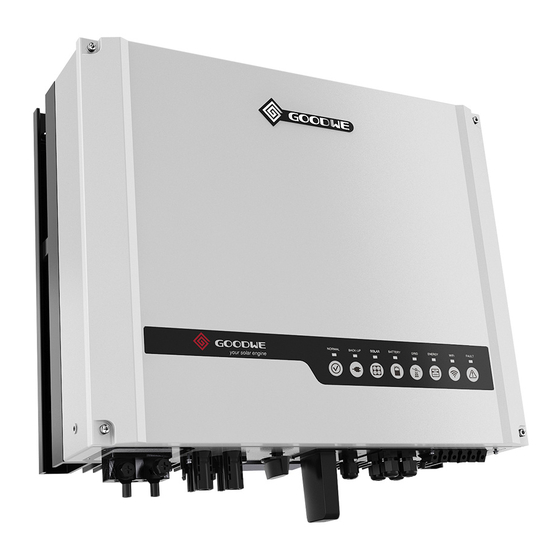

Page 4: Product Overview
1.3 Product Overview Safety Warning Any installation and operation on inverter must be performed by qualified electricians, in compli- ance with standards, wiring rules or requirements of local grid authorities or companies (like AS 4777 and AS/NZS 3000 in Australia). Before any wiring connection or electrical operation on inverter, all battery and AC power must be disconnected from inverter for at least 5 minutes to make sure inverter is totally isolated to avoid electric shock. -
Page 5: Installation Instructions
Battery Cover Bracket Smart Meter With CT 500mm Inverter cannot be installed near flammable, explosive or strong electro-magnetic Battery Hexagon Fixed Expansion WiFi bluetooth ES SERIES USER MANUAL equipment. HYBRID INVERTER Quick Installation Terminal Terminal screw Screw Terminal Bolts Module... -
Page 6: Mounting
2.3.2 Mounting Step 3 Remember that this inverter is heavy! Please be careful when lifting out from the Ground cable shall be connected to ground plate on grid side. package. The inverter is suitable for mounting on concrete or other non-combustible surface only. Step 1 Please use the mounting bracket as a template to drill 4 holes in the right positions (10mm in diameter,and 80mm in depth). -
Page 7: Electrical Wiring Connection
• The total short-circuit current of PV string must not exceed inverter's max DC current. Make sure that the breaker is off and battery nominal voltage meets ES series' specifica- • The minimum isolation resistance to ground of the PV string must exceed 19.33kΩ in case of tion before connecting battery to inverter. -
Page 8: On-Grid & Back-Up Connection
Battery Protection AC cable is required to connect to both on-grid and back-up side. Battery will act as a protective charge/discharge current limitation under any condition as below: Make sure the inverter is totally isolated from any DC or AC power before connecting AC •... - Page 9 QU curve and PU curve etc. by special firmware. Please ES series inverter is able to supply a continuous 4600VA output or maintain a 6900VA output for contact after-sales for the special firmware and adjustable methods.
-
Page 10: Smart Meter & Ct Connection
1. The Smart Meter with CT is well configured, please do not change any setting on Smart Meter. Brown&white 485_B1 2. One Smart Meter can only be used for one ES series inverter. Brown 485_A1 3. Three CTs must be used for one Smart Meter, and must be connected on the same phase with Smart Meter power cable. -
Page 11: Wifi Module Connection
2.7 Earth Fault Alarm Connection Screw Cap Screw Insulator ES series inverter complies with IEC 62109-2 13.9. Fault indicator LED on inverter cover will light Function DRM1/5 DRM2/6 DRM3/7 DRM4/8 REFGEN... - Page 12 Wiring System For ES Series Hybrid Inverter System Connection Diagrams Note: This diagram indicates wiring structure of ES series hybrid inverter, not the electric wiring standard. Note: According to Australian safety country, the neutral cable of on-grid side and back-up side must be connected together, otherwise back-up function will not work.
-
Page 13: Wi-Fi Configuration
WPAPSKWPA2PSK/TKIPAES restart. Anti-Reverse Function Switch Off WiFi_Burn-in2 WPAPSKWPA2PSK/TKIPAES www.goodwe.com Refresh If you still neet to configure the other pages of information, Overview Param please go to complete your required configuration. Help: When RSSI of the selected Wi-Fi network is lower than 3.3 CEI Auto-Test Function... -
Page 14: Others
OTHERS 4.1 Error Messages The error messages below will be displayed on PV Master App or reported by e-mail if an error occurs. ERROR MESSAGE EXPLANATION REASON SOLUTIONS 1. Check (use multi-meter) if AC side has voltage . Make sure grid power is available. Public grid power is not available (power Utility Loss Inverter does not detect the connection of grid... -
Page 15: Troubleshootings
4.2 Troubleshootings Problems During Operation Checking Before Turning On AC Power ES does not start up with battery only • Battery Connection: Confirm the connection between ES and battery : polarities (+/-) are not Solution: reversed, refer to figure 4.2-1 Make sure the voltage of battery is higher than 48V, otherwise battery cannot start ES up. - Page 16 Q: Why can't I connect Solar-WiFi* signal on my phone? A: For ES series inverter, it could connect lithium batteries which have compatibility with ES series inverter with nominal voltage 48V. For compatible lithium batteries please refer to battery list in A: The Wifi...
-
Page 17: Disclaimer
About Smart Meter And Power Limit Function Q: How to activate output power limit function? The ES series inverters are transported, used and operated under environmental and electrical conditions. Manufacturer has the right not to provide after-sales services or assistance under... -
Page 18: Technical Parameters
4.4 Technical Parameters Technical Data GW3648D-ES GW5048D-ES AC Output Data (On-Grid) Technical Data GW3648D-ES GW5048D-ES Nominal Power Output Grid (W) [4] 3680 5000 Battery Input Data Max. Apparent Power Output Grid (VA) [5] 3680 5000 Supported Battery Type Li-lon Li-lon Max. -
Page 19: Other Test
3. Make sure battery breaker is off and battery nominal voltage meets ES specification before Technical Data GW3648D-ES GW5048D-ES connecting battery to inverter and make sure inverter is totally isolated from PV and AC power, General Data please refer to page 09 Communication With SmartMeter RS485 RS485... - Page 20 Environment category definition Environment Condition Ambient Termperature Relative Humidity Applied to Outdoor -20~50℃ 4%~100% Indoor Unconditioned -20~50℃ 5%~95% Indoor conditioned 0~40℃ 5%~85% Pollution degree definition No pollution or only dry, non-conductive polllution occurs. Pollution Degree I The pollution has no influence. Normally only non-conductive pollution occurs.
