User Manual

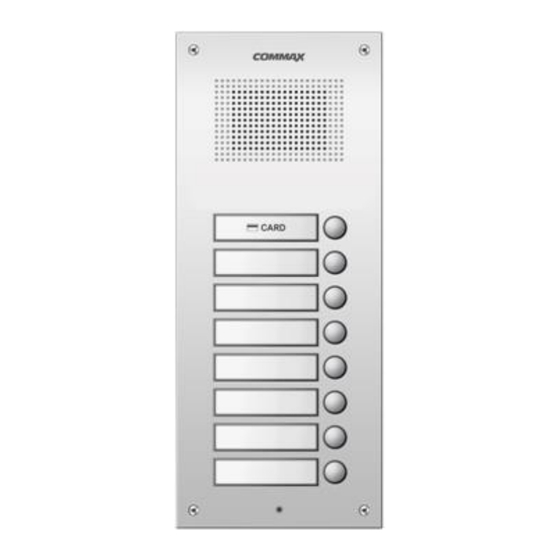

DOOR STATION DR-nUM/RF1, DR-nUS
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Commax DR-nUM/RF1
Summary of Contents for Commax DR-nUM/RF1
- Page 1 User Manual DOOR STATION DR-nUM/RF1, DR-nUS • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. • The company is not responsible for any safety accidents caused by abnormal operation of the product.
- Page 2 Contents 1.Introduction ······························································································ 2. Important Safegaurd ················································································· 3. Overview ································································································ 4. How to Use ····························································································· 5. Method of using RF card key ··········································································5 6. Wiring ·······································································································7 7. Part List ····································································································9 8. Specification ····························································································· 11 9. RF-ID Model ····························································································· 12...
- Page 3 The model number is located on the bottom and record the serial number in the space provided below(available). Refer to these numbers whenever you call upon your COMMAX dealer regarding this product. Model No.
- Page 4 2. Important Safeguard ▲ Damage Requiring Service: This equipment from the power source and source and refer servicing to qualified service per- sonnel under the following conditions: ⓐ when the power is damaged. ⓑ if liquid has been spilled or objects have fallen into the unit ⓒ...
- Page 5 ) point. Notice 1. DR-nUM/RF1 is available to call to a household or talk with a resistant as Master Unit 2. Please install DR-nUS together with DR-nUM/RF1 DR-nUS is only available to call to a household as this is just a product to extend the number of households on the DR-nUM 3.
- Page 6 5. Method of using RF card key - Caution : You can use only mini type RF card by COMMAX * Type of button Button 1 : Master card registration button (For registration purpose) -> rear REGISTRATION button Button 2 : Master Card registration button (For card deletion purpose) -> rear DELETE button Button 3 : Deletion button / Front (Outer) Option button 1.
- Page 7 2. Door release card registration/deletion 1) Card registration (1) On tagging the master card for registration, LED slowly flickers with beep sound (Entering registration mode). (2) Beep sound comes out when door release card is tagged. (3) In case more than 1 cards have to be registered, repeat above (2) procedure. (4) Press button 3.
- Page 8 6. Wiring (1)DR-Num installation...
- Page 9 (2) DR-nUM installation with DR-nUS, extentional unit...
- Page 10 7. PART LIST...
- Page 12 8. Specification Model No. DR-nUM/RF1, DR-nUS Power source DC12V, 1A Common 3 wires + Individual 1 wire Wiring [3 wires : 1,2,3] + [1 wire : L1] Communication Hands-free Display Temperature -10℃(tested up to -40℃) ~ +50℃, 95% DR-7UM/RF1, DR-nUS...
- Page 13 9. RF-ID Model Model Name DR-nUM/RF1 (‘n’ is the number of households what can be called) Frequency 13.56MHz Antenna power range Under 47.5mV/m within 10 meter radius Power DC 5V Emission Type Number of Channel 1 Channel Modulation method Communication method Simplex Operation Method Temperature -10℃(tested up to -40℃) ~ +50℃, 95%...
- Page 14 MEMO...
- Page 15 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2013.12.105 PM13NUMNUS11...
