User Manual

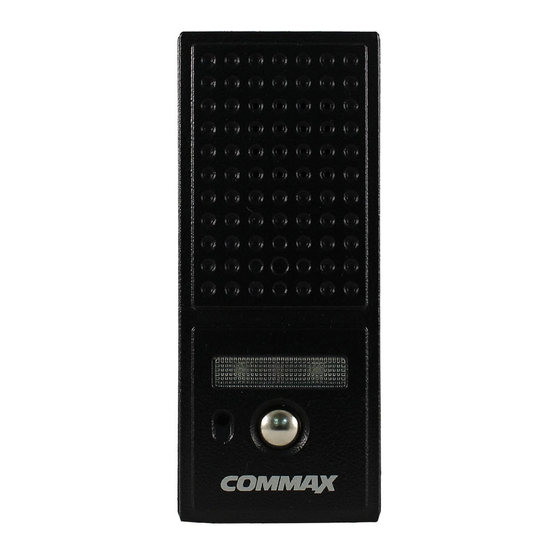

Door Camera DRC-4CPN2

• Thank you for purchasing COMMAX products.

• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow

instructions to use a product exactly.

• The company is not responsible for any safety accidents caused by abnormal operation of the product.

www.safemag.ru

Table of Contents

Need help?

Do you have a question about the DRC-4CPN2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Commax DRC-4CPN2

Page 1: User Manual
User Manual Door Camera DRC-4CPN2 • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. • The company is not responsible for any safety accidents caused by abnormal operation of the product.
Page 2: Table Of Contents
www.safemag.ru Contents 1. Introdution............. 2 2. Important Safeguard ........3 3. The names & Functions of Each Part .... 4 4. Wiring & Installation ........6 5. Package............11 6. Specifications..........13 www.safemag.ru...
Page 3: Introdution
The model number is located on the bottom and record the serial number in the space provided below(available). Refer to these numbers whenever you call upon your COMMAX dealer regarding this product. Model No.
Page 4: Important Safeguard
www.safemag.ru 2. Important Safeguards ▲ Damage Requiring Service: This equipment from the power source and source and refer servicing to qualified service personnel under the following conditions: ⓐ when the power is damaged. ⓑ if liquid has been spiled or objects have hallen into the unit ⓒ...
Page 5: The Names & Functions Of Each Part
www.safemag.ru 3. The names & Functions of Each Part ▶ Front sid ▶ Back side www.safemag.ru...
Page 6 www.safemag.ru ① Speaker : Transmit sounds from the household. ② Camera Lens : keep cleaning up from dust or foreign substances. ③ LED Lamp : The LED lamp is turned on for clear view during night. ④ Page Button : Used to page the household ⑤...
Page 7: Wiring & Installation
www.safemag.ru 4. Wiring & Installation 1. Align holes on the wall where the unit is to be installed with mounting brackets hole and secure. FIG-1 : Install the camera at a 30˚angle to the left (install the bracket in reverse to angle 30˚to the right) FIG-2 : Install the camera at a perpendicular angle to the front 2.
Page 8 www.safemag.ru ▶ [FIG-1] ▶ [FIG-2] www.safemag.ru...
Page 9 www.safemag.ru #1: RED(VOICE) #2: BLUE(GND) #3: YELLOW(+12V) #4: BLACK(VIDEO) ▶ [FIG-3] www.safemag.ru...
Page 10 www.safemag.ru You can adjust speaker volume using driver as shown below. [FIG-4] ▶ [FIG-4] www.safemag.ru...
Page 11 www.safemag.ru ● Please refer to the below images regarding the installation position of the product. 60cm www.safemag.ru...
Page 12: Package
www.safemag.ru 5. Package www.safemag.ru...
Page 13 www.safemag.ru www.safemag.ru...
Page 14: Specifications
6. Specification DRC-4CPN2 Model Image Sensor CMOS 1/4" specification Power source (supplied from the Monitor) Wiring(household) Polar 4 wires Call mode Duplex Camera angle horizontal angle 47°, vertical angle 34° Format NTSC or PAL STANDARD Horizontal /vertical Frequency 15.734㎑ / 60㎐ , 15.625㎑ / 50㎐...
Page 15 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com PM104CPN2000 Printed In Korea / 2013.10.105 www.safemag.ru...
