User Manual
Door station unit DR-2R
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Commax DR-2R
Summary of Contents for Commax DR-2R
- Page 1 User Manual Door station unit DR-2R • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. • The company is not responsible for any safety accidents caused by abnormal operation of the product.
- Page 2 Contents 1. Introduction ........... 2 2. Important Safeguards ........3 3. Overview ............4 4. Wiring and Installation ........5 5. Specifications..........6...
- Page 3 The model number is located on the bottom and record the serial number in the space provided below(available). Refer to these numbers whenever you call upon your COMMAX dealer regarding this product. Model No.
- Page 4 2. Important Safeguards ▲ Damage Requiring Service : This equipment from the power source and source and refer servicing to qualified service per- sonnel under the following conditions ⓐ when the power is damaged. ⓑ if liquid has been spoiled or objects have hallen into the unit ⓒ...

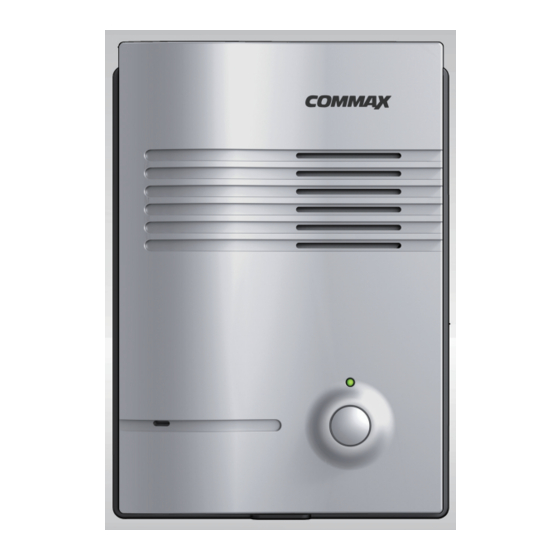

- Page 5 3. Overview BACK SIDE-2 BACK SIDE-1 FRONT SIDE C-MIC: transmits visitor’s voice(outdoor → indoor) Operation status LED Call button: Needed to make a call to household Speaker: transmits householder’s voice(indoor → outdoor)
- Page 6 4.Wiring and Installation 1. Mount bracket on the wall with screws(T4 x 18). [FIG-1] 2. Connect the Room station cables to the door station cables [FIG-1] 3. Place door station on the bracket and fix it with provided screws (M3 x 8)
- Page 7 5. Specifications MODEL DR-2R Wiring System (household) DOOR PHONE 2-wire system Communication method Full Deplex Rated voltage (supplied from the DOOR PHONE) (MAX 0.3W) Operating Temperature -10°C ~ +40°C Dimensions (mm) 123(W)×174(H)×30.4(D)mm Weight (g) 300g...
- Page 8 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2012.01.105...
