User Manual

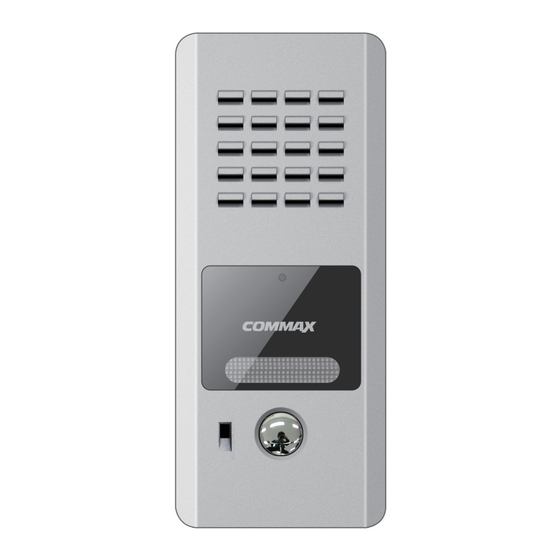

DOOR STATION DR-2PN
Thank you for purchasing COMMAX products.
Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
The company is not responsible for any safety accidents caused by abnormal operation of the product.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Commax DR-2PN
Summary of Contents for Commax DR-2PN
-
Page 1: User Manual
User Manual DOOR STATION DR-2PN Thank you for purchasing COMMAX products. Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. The company is not responsible for any safety accidents caused by abnormal operation of the product. -
Page 2: Table Of Contents
Contents 1. Introduction ........... 3 2. Important Safeguards ........4 3. Overview............5 4. Wiring & Installation ........7 5. Package............8 6. Specifications..........9... -
Page 3: Introduction
The model number is located on the bottom and record the serial number in the space provided below(available). Refer to these numbers whenever you call upon your COMMAX dealer regarding this product. Model No. -
Page 4: Important Safeguards
2. Important Safeguards Damage Requiring Service: This equipment from the power source and source and refer servicing to qualified service personnel under the following conditions: when the power is damaged. if liquid has been spiled or objects have hallen into the unit if the equipment has been exposed to rain or water. -
Page 5: Overview
3. Overview Front side Back side... - Page 6 Speaker : Delivers voice to a vistor ① LED Lamp ② Call Button : Calls the resident ③ MIC : Delivers voice from a vistor ④ Mounting Holes ⑤ Wires : Connect with the phone in the residence ⑥...
-
Page 7: Wiring & Installation
4. Wiring & Installation 1. Fix product by adjusting the holes on the wall and hanging[FIG-1] 2. Connect the wire to the door phone by adjust- ing polariry as shown on the figure (#1:RED/ #2:BLUE ) 3. Fix by using bolts and a wrench and put in a rubber cap... -
Page 8: Package
5. Package... -
Page 9: Specifications
6. Specification DR-2PN Model specification Communication method Full Duplex (supplied from the DOOR PHONE) Rated voltage DOOR PHONE 2-wire system Wiring Method -10 ℃ ~ +40 ℃ Operation Teperature 50.2(W)×118(H)×52(D)mm External Dimensions(mm) 300g Weight(g) - Page 10 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2011.07.105...
