Draper FlexStyle Battery Zigbee Instructions Installation & Operation page 5

FlexStyle Battery Zigbee
TM

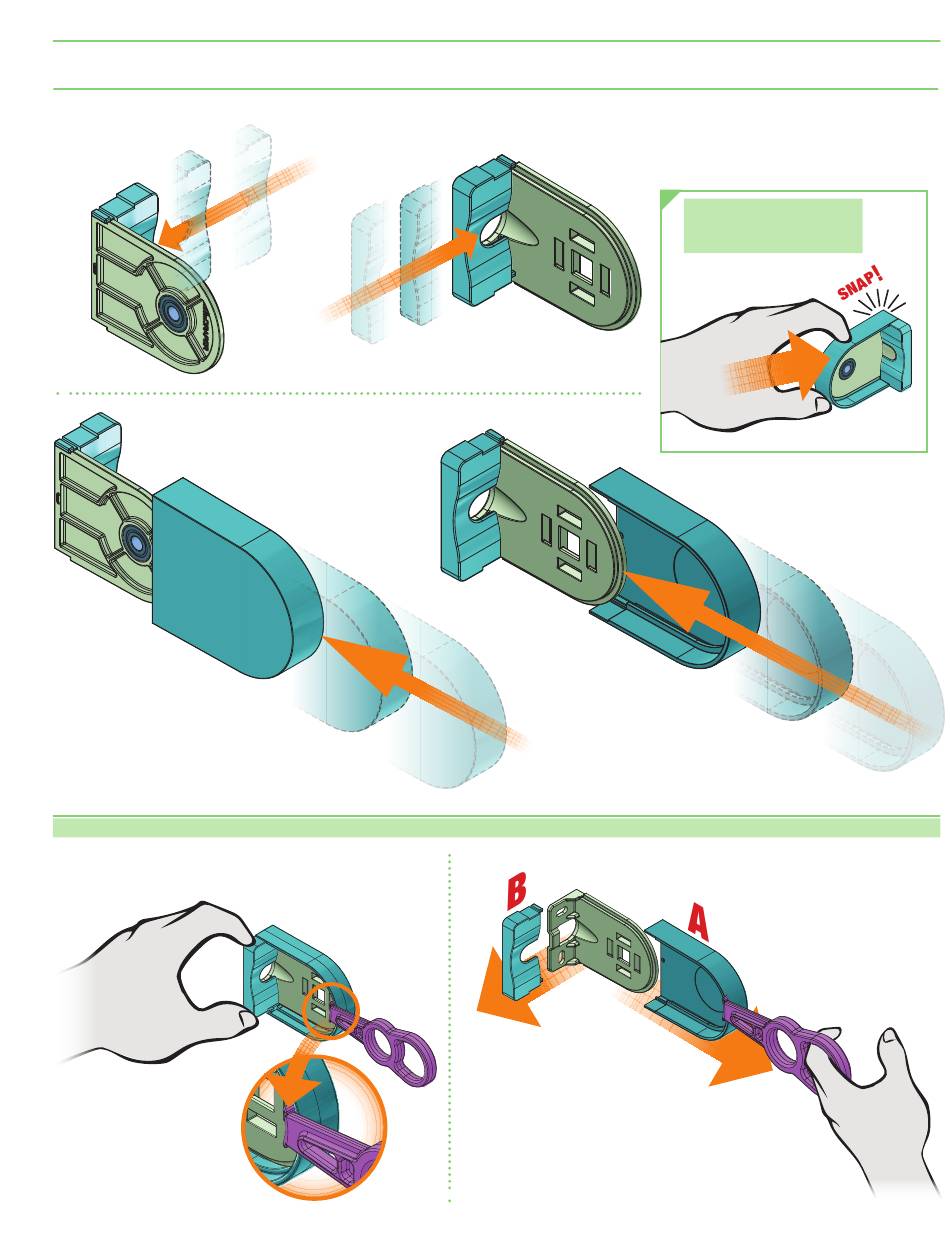

Section 4 - Bracket & Coupler Covers
1.
Slide Bracket Caps
over Brackets.
2.
Slide Covers
over Brackets.
Section 5 - Removing Bracket Covers
Please Note: The Cover Removal Tool
1.
Grasp the flat end of the bracket.
(Motor end bracket shown.)
2.
Slip the small curved
end of the tool under
the curved end of the
bracket.
(Must be ordered separately.)
is available to remove bracket cover for charging battery.
(Part Number C202.053)
3.
Pull off Bracket
Cover.
(A)
4.
Pull off Bracket
Cap.
(B)
page 5 of 8
Please Note: Ensure that
Bracket Covers SNAP
into place.
