FlexStyle
Cassette Ascend
®
Cordless operated cassette style shade

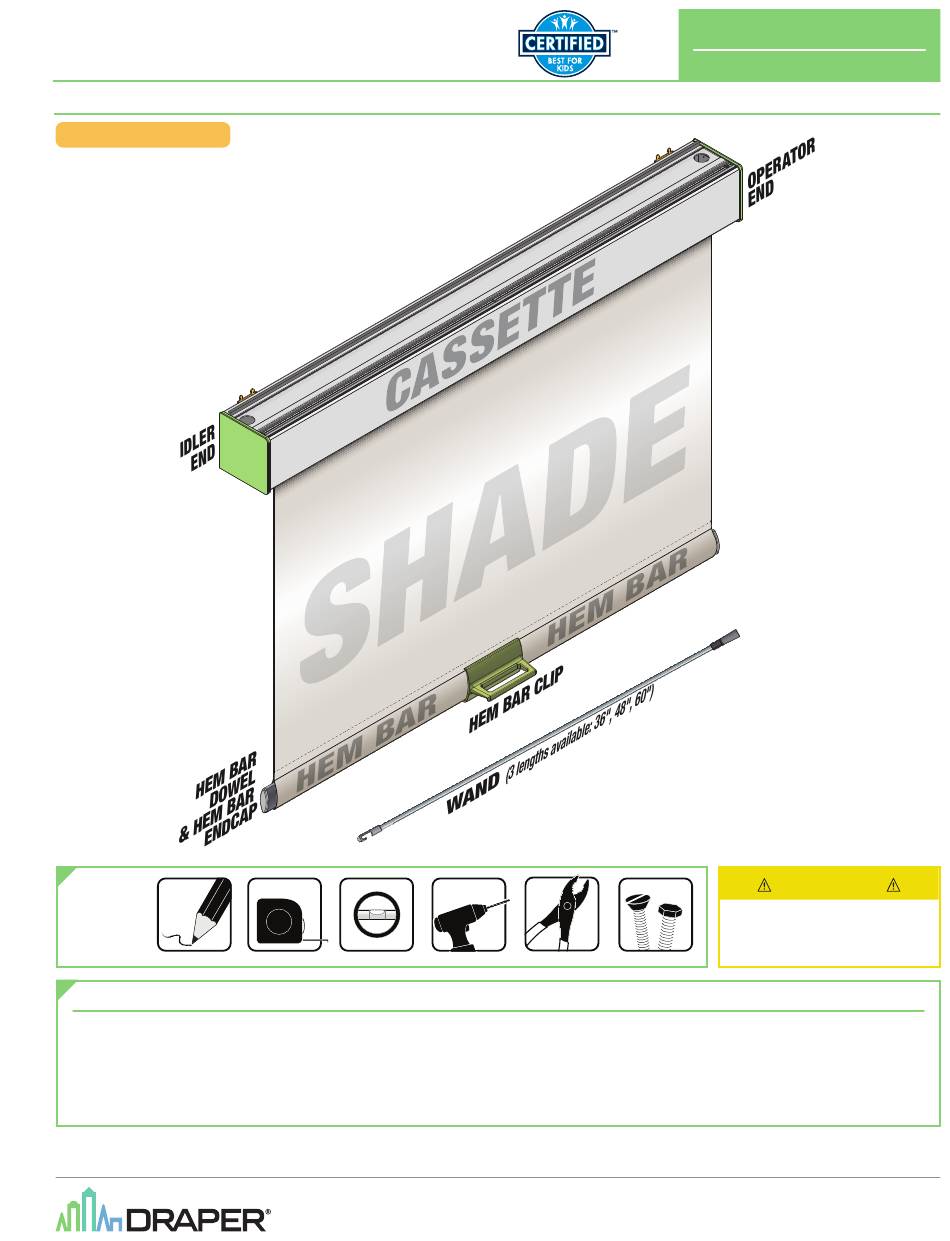

Overview - Components
FSTYL CASS ASND
TOOLS
REQUIRED
PENCIL
Contents
Overview - Components .......................................................................................1
PLEASE READ - Important Safety & Installation Information ........................2
PLEASE READ - Field Adjustments, Cleaning and Maintenance ...................2
Section 1 - Installing Mounting Brackets ..........................................................3
Section 2 - Wall Mounting Shade........................................................................4
Section 3 - Ceiling Mounting Shade ...................................................................4
(Square Cassette, Elliptical Style Hem Bar shown)
TAPE MEASURE
LEVEL
POWER DRILL
PLIERS
Section 4 - Hem Bar Handle ................................................................................5
Section 5 - Adjusting Shade Tension .................................................................5
Section 6 - Shade Operation ...............................................................................6
Section 7 - Cassette Dimensions .......................................................................7
Section 8 - Shade Dimensions ............................................................................8
© 2024 All Rights Reserved
INSTRUCTIONS
INSTALLATION & OPERATION
CAUTION
Read and understand
all warnings before
beginning installation.
HARDWARE
(by others)
If you have any difficulties installing or servicing your
FlexStyle Cassette Ascend, call your dealer or Draper, Inc.
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
|
FORM: FlexStyle_Cassette_Ascend_Inst24
Advertisement
Table of Contents
Related Manuals for Draper FlexStyle Cassette Ascend
Summary of Contents for Draper FlexStyle Cassette Ascend
-
Page 1: Table Of Contents
Section 3 - Ceiling Mounting Shade ..............4 If you have any difficulties installing or servicing your FlexStyle Cassette Ascend, call your dealer or Draper, Inc. Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385 draperinc.com | 765.987.7999 | 800.238.7999 FORM: FlexStyle_Cassette_Ascend_Inst24 ©... -
Page 2: Please Read - Important Safety & Installation Information
Most standard Draper fabrics may be cleaned at the window by vacuuming with a soft brush attachment. They also may be cleaned by using a sponge or soft cloth and mild solution of warm soapy If the shade is telescoping, place a piece of shimming water. -
Page 3: Section 1 - Installing Mounting Brackets
FlexStyle Cassette Ascend ® page 3 of 8 Section 1 - Installing Mounting Brackets IMPORTANT: Mounting Brackets must be installed parallel, plumb, and square, with a tolerance of +/- 1/ 8 " (3mm) Verify unit measurements and ensure unit will fit in the desired location. Please Note: Installer is responsible for selecting mounting hardware appropriate for site conditions. -
Page 4: Section 2 - Wall Mounting Shade
FlexStyle Cassette Ascend ® page 4 of 8 Section 2 - Wall Mounting Shade (Curved Cassette shown) Please Note: Brackets should be installed no more than 5" in from ends of Cassette Assembly. (127mm) Install any remaining brackets evenly between the outermost brackets. Lift Cassette Assembly into place and align between the Mounting Brackets. -
Page 5: Section 4 - Hem Bar Handle
FlexStyle Cassette Ascend ® page 5 of 8 Section 4 - Hem Bar Handle Snap hem bar handle onto I E W the desired placement on hem bar. Section 5 - Adjusting Shade Tension If shade does not stop but continues moving UP, If shade does not stop but continues moving adjust the spring force by turning adjuster DOWN, adjust the spring force by turning adjuster... -
Page 6: Section 6 - Shade Operation
FlexStyle Cassette Ascend ® page 6 of 8 Section 6 - Shade Operation (Square Cassette shown) To lower window shade Pull-Down Wand Grasp center of hem bar, The Pull-Down Wand or hem bar clip. (Part Number C061.051) be ordered separately Pull shade down to assist in raising and to desired position. -
Page 7: Section 7 - Cassette Dimensions
FlexStyle Cassette Ascend ® page 7 of 8 Section 7 - Cassette Dimensions 3 " 4" 4" (98mm) (102mm) (102mm) SQUARE CASSETTE SQUARE CASSETTE SQUARE CASSETTE (no Mounting Brackets) (Ceiling Mounting Brackets) (Wall Mounting Brackets) 3 " 4" NOTE: Minimum depth NOTE: Minimum depth NOTE: Minimum depth (98mm) -
Page 8: Section 8 - Shade Dimensions
CLUTCH FlexStyle Cassette Ascend ® page 8 of 8 Section 8 - Shade Dimensions (21mm) (21mm) Cloth Width = Overall Shade Width - 1 (42mm) Overall Shade Width (Outside of Cassette Unit to Outside of Cassette Unit)
