FlexStyle
Cassette Recharge
®
RNo wiring or electrician, rechargeable motorized window shade with cassette-style case

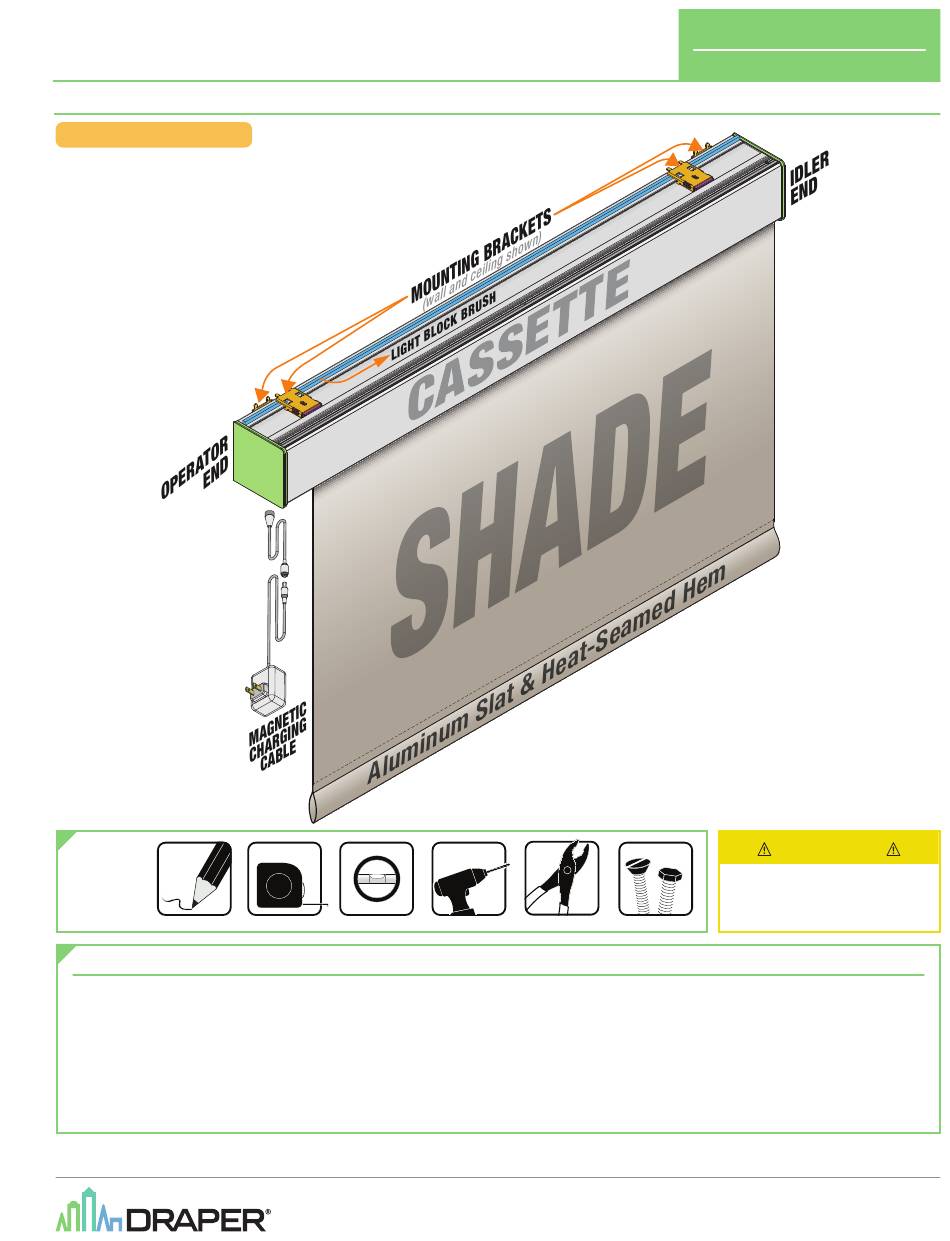

Overview - Components
FSTYL CASS BA24
TOOLS
REQUIRED
PENCIL
Contents
Overview - Components .......................................................................................1
PLEASE READ - Important Safety & Installation Information ........................2
PLEASE READ - Field Adjustments, Cleaning and Maintenance ...................2
Section 1 - Activate Shade Motor .......................................................................3
Section 2 - Installing Mounting Brackets ..........................................................3
Section 3 - Wall Mounting Shade........................................................................4
Section 4 - Ceiling Mounting Shade ...................................................................4
Section 5 - Charging Battery ...............................................................................5
RECHARGE
(Square Cassette, Elliptical Style Hem Bar shown)
TAPE MEASURE
LEVEL
PLIERS
POWER DRILL
Section 6 - Remote Controller ............................................................................5
Section 7 - Initial Motor Setup ............................................................................6
Section 8 - Motor Limits .......................................................................................7
Section 11 - Cassette Dimensions ....................................................................10
Section 12 - Shade Dimensions ........................................................................10
© 2024 All Rights Reserved
INSTRUCTIONS
INSTALLATION & OPERATION
CAUTION
Read and understand
all warnings before
beginning installation.
HARDWARE
(by others)
......................................................................8
....................................................................9
If you have any difficulties installing or servicing your
FlexStyle Cassette Recharge, call your dealer or Draper, Inc.
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
|
FORM: FlexStyle_Cassette_Recharge_Inst24
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper FlexStyle Cassette Recharge
Summary of Contents for Draper FlexStyle Cassette Recharge
-
Page 1: Table Of Contents
Section 12 - Shade Dimensions ................10 Section 5 - Charging Battery ................5 If you have any difficulties installing or servicing your FlexStyle Cassette Recharge, call your dealer or Draper, Inc. Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385 draperinc.com | 765.987.7999 | 800.238.7999 FORM: FlexStyle_Cassette_Recharge_Inst24 ©... -
Page 2: Please Read - Important Safety & Installation Information
Most standard Draper fabrics may be cleaned at the window by vacuuming with a soft brush attachment. They also may be cleaned by using a sponge or soft cloth and mild solution of warm soapy If the shade is telescoping, place a piece of shimming water. -
Page 3: Section 1 - Activate Shade Motor
FlexStyle Cassette Recharge ® page 3 of 10 Section 1 - Activate Shade Motor (Shade fabric not shown) Please Note: Motor comes in sleep mote and needs to be activated. Sleep Mote is used to deactivate the radio transmission to save the battery life during shipment, or when the product will not be used for an extended amount of time (eg: storage) Using an unbent paper clip or similar tool, hold... -
Page 4: Section 3 - Wall Mounting Shade
FlexStyle Cassette Recharge ® page 4 of 10 Section 3 - Wall Mounting Shade (Curved Cassette with open bottom shown) Please Note: Brackets should be installed no more than 5" in from ends of Cassette Assembly. (127mm) Install any remaining brackets evenly between the outermost brackets. Lift Cassette Assembly into place and align between the Mounting Brackets. -
Page 5: Section 5 - Charging Battery
FlexStyle Cassette Recharge ® page 5 of 10 Section 5 - Charging Battery Please Note: If shade is reverse roll or fabric wrapped, then there is no return cover on the case bottom, and the magnetic charging port is located on the circuit board mounted on the inside of the endcap. -
Page 6: Section 7 - Initial Motor Setup
FlexStyle Cassette Recharge ® page 6 of 10 Section 7 - Initial Motor Setup 15 Channel Remote Press lock button for 1 second or less to display current mode. Select channel Hold P1 button on Hold STOP on controller. on controller. motor head. -
Page 7: Section 8 - Motor Limits
FlexStyle Cassette Recharge ® page 7 of 10 Section 8 - Motor Limits To reverse shade direction, hold both UP and DOWN until the motor responds. IMPORTANT Cycle shade up and down prior to setting limits IMPORTANT to settle fabric. Reversing motor direction using this method is only possible during initial set-up. -
Page 8: Section 9 - Motor Limits (Continued)
FlexStyle Cassette Recharge ® page 8 of 10 Section 9 - Motor Limits (continued) FAVORITE POSITIONING Setting Favorite Position Deleting Favorite Position Set a favorite position Send Shade to Press P2 on Favorite Position controller. Move shade to the desired position by pressing the UP or DOWN button on Motor Response... -
Page 9: Section 10 - Motor Limits (Continued)
FlexStyle Cassette Recharge ® page 9 of 10 Section 10 - Motor Limits (continued) Stop Configuration Turn Soft Stop OFF: Turn Soft Stop ON: Motor must be in slowest speed to turn Soft Stop OFF. Motor must be in fastest speed to turn Soft Stop ON. Turn Soft Stop OFF: Motor must be in slowest speed to turn Soft Stop OFF. -
Page 10: Section 11 - Cassette Dimensions
FlexStyle Cassette Recharge ® page 10 of 10 Section 11 - Cassette Dimensions 3 " 4" 4" (98mm) (102mm) (102mm) SQUARE CASSETTE SQUARE CASSETTE SQUARE CASSETTE (no Mounting Brackets) (Ceiling Mounting Brackets) (Wall Mounting Brackets) 3 " 4" NOTE: Minimum depth NOTE: Minimum depth NOTE: Minimum depth (98mm)
