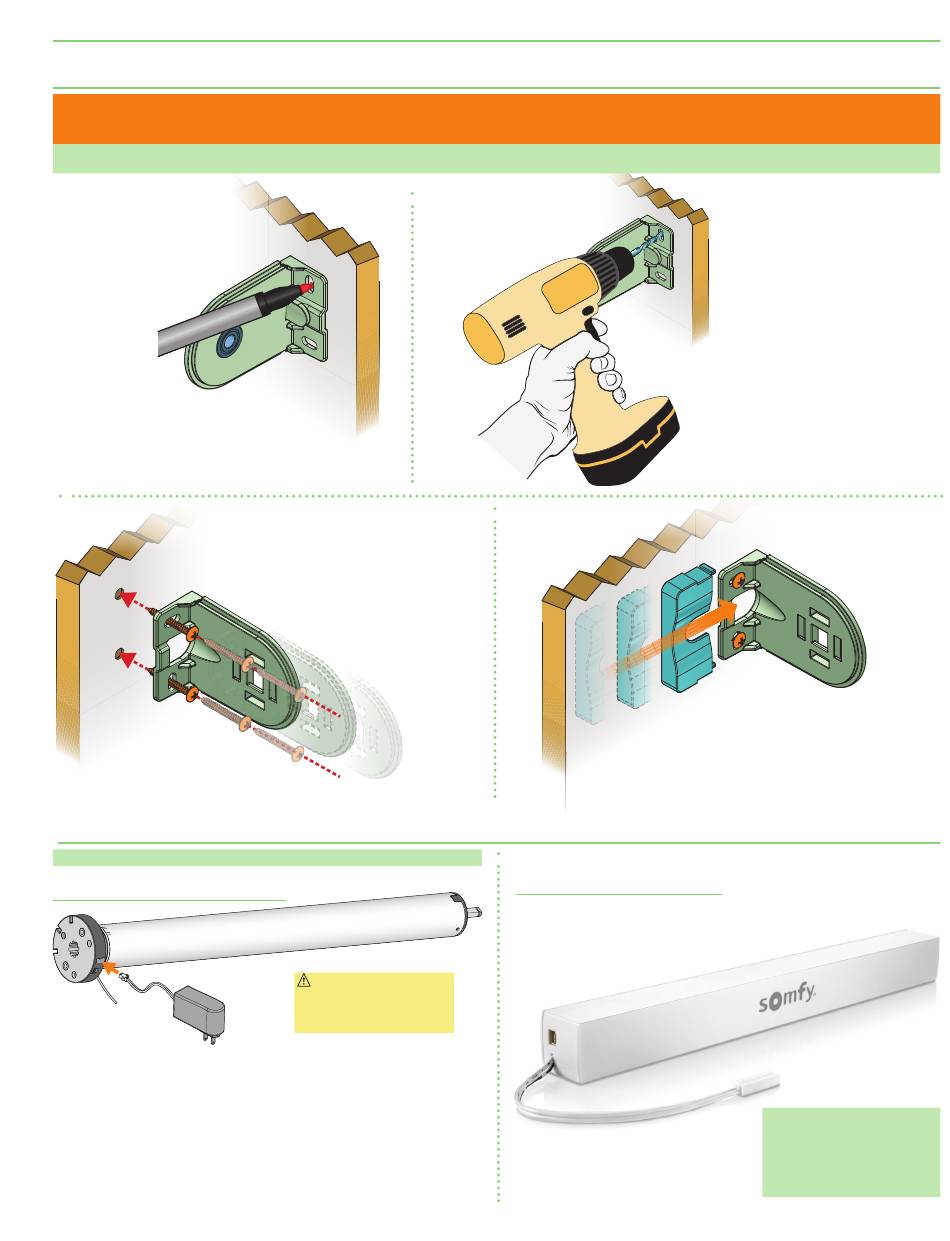

Section 1 - Installing Mounting Brackets
IMPORTANT: Mounting Brackets must be installed parallel, plumb, and square, with a tolerance of +/- 1/ 8 "
Verify unit measurements and ensure unit will fit in the desired location.
Please Note: Installer is responsible for selecting mounting hardware appropriate for site conditions.
1.
Mark wall or
ceiling for
placement of
mounting
brackets.
(Idler Bracket
shown.)
Section 2 - Charging Battery
Please Note: Bracket Cover must be removed for battery charging
12V Built-In Li-ion Battery Option
Antenna
Wire
1. During operation, if voltage drops to less than 10V, motor will beep 10
times to indicate it needs to be charged.
2. Motor will stop running when voltage is lower than 7V and resume
when voltage is greater than 7.5V.
3. Once battery has been depleted, motor must be charged for 6 hours
using recommended AC charger.
3.
Attach brackets using
appropriate fasteners
for mounting
(by others)
surface.
(Motor Bracket shown.)
Caution: Ensure
antenna wire is kept
straight and away from
AC
metal objects.
Charger
(Sec. 7, P.7)
External Battery Pack Option
1. Mount battery pack to wall using provided mounting clips.
2. Locate the battery pack to reach the motor without
interfering with shade/roller operation.
page 3 of 8
.
(3mm)
2.
Drill small starter
hole in mounting
surface
(if necessary)
4.
Slide the Bracket Cap
over bracket.
(Motor Bracket shown.)
Please Note:
If mounting the battery pack
vertically, small plastic grips
are provided to slide onto the
battery pack and create a
tighter fit in the bracket.
.
